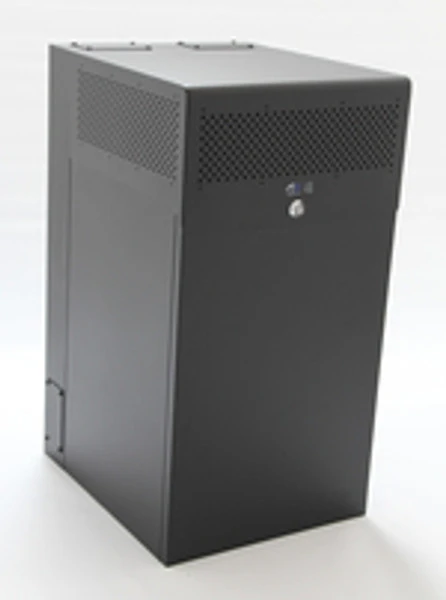

16U Vertical MiniRaQ Secure- Tall With Vented Bottom



The 16U MiniRaQ SECURE Compact is a fully secure wallmount enclosure that extends only 23″ from the wall and can accommodate rackmount equipment with a maximum depth/length of 35”. The 10U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. The upper section of the backplate features a 4U space dedicated for installation of up to 96 ports of patch panel. Internal to the backplate is set of 2U rails that can also be used for installation of equipment in a vertical orientation. These 2U rails line up perfectly with the side panels enabling installation of equipment that starts on the 2U internal rails and extends on to the side panels. Three pairs of removal access plates on the top, bottom, and lower sides of the backplate can be used for routing of large data cable bundles or routing of power cables. These rectangular plates can also be replaced with many of our MiniRaQ options further increasing the capabilities of the MiniRaQ. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site. The MRQ301S16 includes a 4.5″ deep backplate, (2) 10U side panels, front panel, locking lid & vented bottom. GoVertical with MiniRaQ!

• Revolutionary space saving design – Deploy up to 16U of equipment.
• Fully secure enclosure – Tamper-proof enclosure with locking top cover.
• Dedicated patch panel space for up to 96 ports at top of backplate.
• Equipment with depths up to 35″ can be installed in previously unusable spaces.
• Ventilated locking cover and bottom panels.
• Optional high velocity fan module keeps critical network equipment cool.
• Available with field upgradeable 4U, 6U, 8U or 10U side panels.
• 2U of bonus equipment space internal to backplate.
• Large cable access plates on top, bottom & sides of backplate.
• Optional RJ-45 LAN/console ports for switch configuration without opening the MiniRaQ.
• High security tubular 7-tumbler lock.
• Reinforced custom double cam and machined steel tamper resistant lock collars.
• Designed to hold 400 lbs. without additional bracing.
• Rapidly mounts to wall studs, plywood backboard or concrete block.
• Installation is easily performed by a single technician.
• Integrated bridge lances for easy and efficient cable management.
• Integrated earth grounding stud.
• Constructed from heavy duty 14AWG steel.

• MRQ301S16

Configuration	MiniRaQ Secure Tall
Total Rack Units Available	16U
Rack Units for Equipment Mounted Vertically	10U
Rack Units for Patch Panel at Top of Backplate	4U
Bonus Rack Units Internal to Backplate	2U
Bonus Rack Units External to Backplate	N/A
Backplate Depth	4.5″
Max Height	38.1″
Max Width	19.6″
Max Depth	23.2″
Shipping Weight Box1/Box2	90 lbs.
Shipping Dimensions Box1/Box2	26″(H) x 40″(W) x 22″(D)
Made in the USA	Yes
Max Equipment Depth without Standoffs	29″
Max Equipment Depth with Standoffs	35″
Cooling Fan Tray	Optional
Integrated Grounding Stud	Yes
Integrated Cable Mgmt (Back Plate)	Yes
Color	Black

MRQ301S16
