4U + 2U (6U Total) Standard MiniRaQ (MRQ100V06)

This product ships directly from the manufacturer. Please contact cablesupply.com if you have any questions.

Go Vertical! – MiniRaQ differs from the traditional wall mount server racks and other rackmount products sold by Chatsworth (CPI), Hoffman, BlackBox, Middle Atlantic, etc. by mounting the rackmount equipment (including servers) vertically instead of horizontally.
The MiniRaq vertical wall mount racks minimize the distance the enclosure is required to extend from the wall. Our vertical wall mount racks enable installation of equipment with depths/lengths as great as 35″. Traditional wall mount enclosures limit equipment depths to 19-23″.
Ease of Installation – MiniRaQ can be installed by a single technician, this Greatly reduces labor cost of installation. The MiniRaQ vertical rack mount modular design enables tool-less assembly after backplate is secured to wall

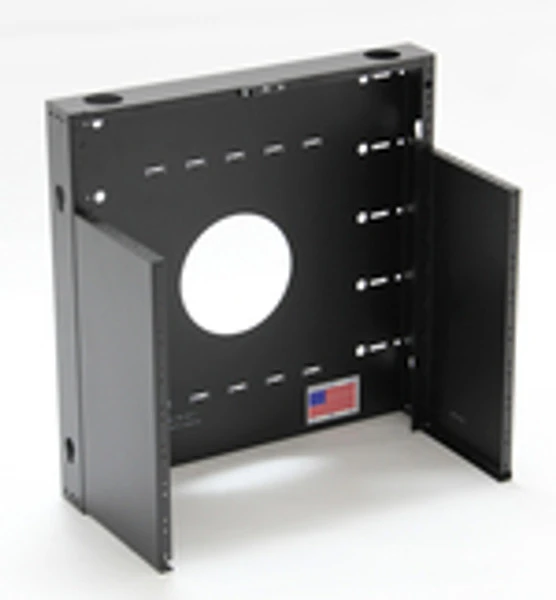

The 6U MiniRaQ Standard includes a 2.5″ deep backplate and (2) 4U side panels From Black Hawk Labs. The upper section of the backplate features a 2U space dedicated for installation of up to 48 ports of patch panel hardware. The 4U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 9.8″ from the wall and can accommodate rackmount equipment with any depth/length. Two circular holes on the top of the backplate can be used for data cable routing, power cable routing or conduit routing. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS, eliminating the need for a costly liftgate or forklift at the delivery site.



The MiniRaq vertical wall mount racks minimize the distance the enclosure is required to extend from the wall. Our vertical wall mount racks enable installation of equipment with depths/lengths as great as 35″. Traditional wall mount enclosures limit equipment depths to 19-23″.

Ease of Installation – MiniRaQ can be installed by a single technician, this Greatly reduces labor cost of installation. The MiniRaQ vertical rack mount modular design enables tool-less assembly after backplate is secured to wall



Check out the other open MiniRaQ models from Black Hawk Labs

2U X 6U (8U Total)MiniRaQ SKU # 101489

2U X 8U (10U Total) MiniRaQ SKU# 101490

2U X 10U(12U Total) MiniRaQ SKU# 101491



Need help in ordering? Please Call 760.945.9000
