6U + 4U Vertical MiniRaQ Convertible Tall By Black Hawk Labs MRQ301V10

 This product ships directly from the manufacturer and has a lead time. Please contact [email protected] if you have any questions about shipment or ETA.

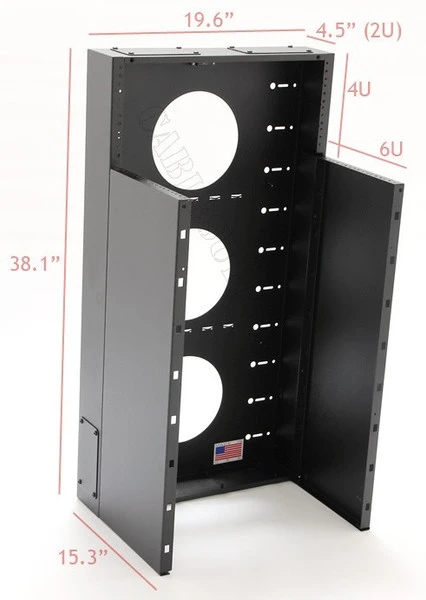

The 10U MiniRaQ Convertible Tall is a wallmount rack that includes a 4.5″ deep backplate and (2) 4U side panels. The upper section of the backplate features a 4U space dedicated for installation of up to 96 ports of patch panel hardware. The 4U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. Internal to the backplate is set of 2U rails that can also be used for installation of equipment in a vertical orientation. These 2U rails line up perfectly with the side panels enabling installation of equipment that starts on the 2U internal rails and ends on the side panels. This open rack extends only 11.8″ from the wall and can accommodate rackmount equipment with any depth/length. Three pairs of removal access plates on the top, bottom, and lower sides of the backplate can be used for routing of large data cable bundles or power cable routing. These rectangular plates can also be replaced with many of our MiniRaQ options further increasing the capabilities of the MiniRaQ. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. The 10U Convertible Tall model can be upgraded in the field to any SECURE Tall model. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site.

• Revolutionary space saving design – Deploy up to 16U of equipment.
• Optimized for today’s deep rackmount components
• Equipment is installed vertically to allow placement in small previously unusable spaces.
• Dedicated patch panel space with up to 4U at top of backplate.
• Available with field upgradeable 4U, 6U, 8U or 10U side panels.
• Designed to hold up to 400 lbs. of equipment without additional bracing.
• Rapidly mounts to wall studs, backboard or concrete block.
• Installation is easily performed by a single technician.
• Integrated bridge lances for easy and efficient cable management.
• Large cable access holes on top, bottom & sides of backplate.
• Integrated earth grounding stud.
• Constructed from heavy duty 14AWG steel.
• Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure.

Configuration	MiniRaQ Convertible Tall
Total Rack Units Available	10U
Rack Units for Equipment Mounted Vertically	4U
Rack Units for Patch Panel at Top of Backplate	4U
Bonus Rack Units Internal to Backplate	2U
Bonus Rack Units External to Backplate	N/A
Backplate Depth	4.5″
Max Height	38.1″
Max Width	19.6″
Max Depth	11.8″
Shipping Weight Box1/Box2	40 lbs.
Shipping Dimensions Box1/Box2	16″(H) x 40″(W) x 22″(D)
Upgradeable to Secure Model	Yes
Made in the USA	Yes
Max Equipment Depth without Standoffs	N/A
Max Equipment Depth with Standoffs	N/A
Cooling Fan Tray	N/A
Integrated Grounding Stud	Yes
Integrated Cable Mgmt (Back Plate)	Yes
Color	Black

MRQ301V10
