6U Vertical MiniRaQ Convertible – Compact (No Side Panels)



This product ships directly from the manufacturer and has a lead time. Please contact [email protected] if you have any questions about shipment or ETA.

The MiniRaq vertical wall mount racks minimize the distance the enclosure is required to extend from the wall. Our vertical wall mount racks enable installation of equipment with depths/lengths as great as 35″. Traditional wall mount enclosures limit equipment depths to 19-23″.

Ease of Installation – MiniRaQ can be installed by a single technician, this Greatly reduces labor cost of installation. The MiniRaQ vertical rack mount modular design enables tool-less assembly after backplate is secured to wall

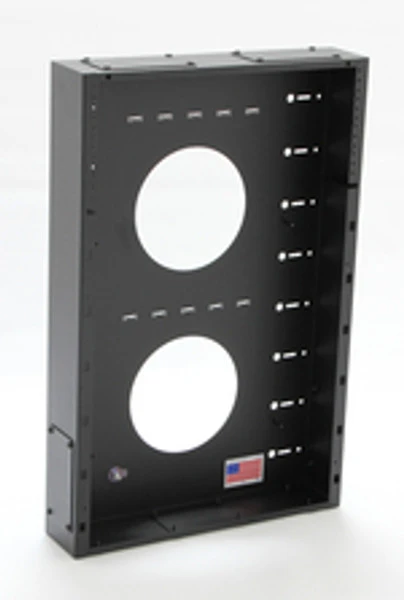

The 6U MiniRaQ Convertible Compact is a wallmount rack that includes a 4.5″ deep backplate only. A set of 2U rails internal to the backplate are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 4.5″ from the wall and can accommodate rackmount equipment with a depth/length of 22″. The upper section of the backplate features a 4U space dedicated for installation of up to 96 ports of patch panel hardware. Three pairs of removal access plates on the top, bottom, and lower sides of the backplate can be used for routing of large data cable bundles or routing of power cables. These rectangular plates can also be replaced with many of our MiniRaQ options further increasing the capabilities of the MiniRaQ. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. The 6U Convertible Compact model can be upgraded in the field to any SECURE Compact model. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site.

• Revolutionary space saving design – Deploy up to 16U of equipment.
• Optimized for today’s deep rackmount components
• Equipment is installed vertically to allow placement in small previously unusable spaces.
• Dedicated patch panel space with up to 4U at top of backplate.
• Available with field upgradeable 4U, 6U, 8U or 10U side panels.
• Designed to hold up to 400 lbs. of equipment without additional bracing.
• Rapidly mounts to wall studs, backboard or concrete block.
• Installation is easily performed by a single technician.
• Integrated bridge lances for easy and efficient cable management.
• Large cable access holes on top, bottom & sides of backplate.
• Integrated earth grounding stud.
• Constructed from heavy duty 14AWG steel.
• Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure.

Configuration	MiniRaQ Convertible Compact
Total Rack Units Available	6U
Rack Units for Equipment Mounted Vertically	N/A
Rack Units for Patch Panel at Top of Backplate	4U
Bonus Rack Units Internal to Backplate	2U
Bonus Rack Units External to Backplate	N/A

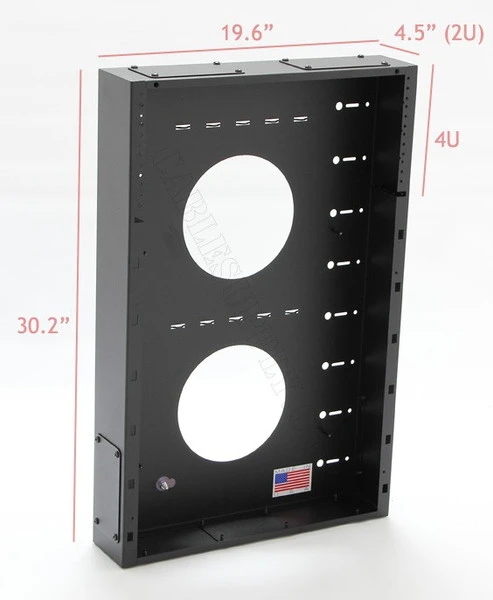

Backplate Depth	4.5″
Max Height	30.2″
Max Width	19.6″
Max Depth	4.5″
Shipping Weight Box1/Box2	25 lbs.
Shipping Dimensions Box1/Box2	16″(H) x 34″(W) x 22″(D)
Upgradeable to Secure Model	Yes
Made in the USA	Yes
Max Equipment Depth without Standoffs	N/A
Max Equipment Depth with Standoffs	N/A
Cooling Fan Tray	N/A
Integrated Grounding Stud	Yes
Integrated Cable Mgmt (Back Plate)	Yes
Color	Black

MRQ351V06
