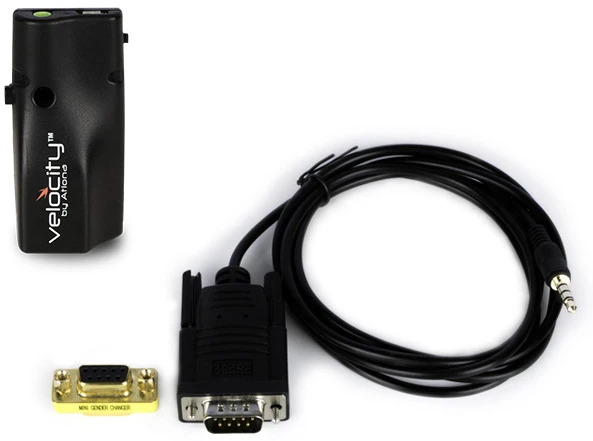

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System - Image 2

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System - Image 3

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System - Image 4

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System - Image 5

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System -CableSupply shop ATNO VCC RS232KT 1

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System -CableSupply shop ATNO VCC RS232KT 2

Atlona VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System

Original price was: $220.00.Current price is: $96.99.

SKU: BWFYA 24458290 Categories: Digital CATV & RF Distribution, IR Remote Control Systems

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

VCC-RS232-KIT – Overview

The Atlona AT-VCC-RS232-KIT is an accessory for the Atlona Velocity Control System that provides conversion between IP and RS-232 control commands. This Velocity Control Converter is very compact and can be placed anywhere a device requires control and is not IP-capable. The VCC-RS232-KIT is remotely powered through Power over Ethernet (PoE), or locally from a USB power source. The primary unit installs onto any surface via a convenient mounting dock. A simple “click” locks it into place for a secure, reliable installation. An RS-232 gender changer is included.

Comprehensive Support of Third-Party AV Products
The Velocity Control System can be integrated with a wide range of sources, displays, DSPs, videoconferencing systems, and many other types of AV equipment. Please refer to this comprehensive database of supported third-party products for detailed information. Devices in the database are ready for immediate integration into a Velocity Control System with just a few mouse clicks. No driver download or installation is necessary.

Features:
- Provides conversion between IP and RS-232 control commands for the Velocity Control System
- Compact form factor – inconspicuous and easily concealable
- Easy to set up and configure from the Velocity Control Gateway
- Remotely powered via PoE (Power over Ethernet)
- Also can be powered through USB from a nearby USB power source
- Primary unit installs onto any surface via a convenient mounting dock – simple “click” locks device into place

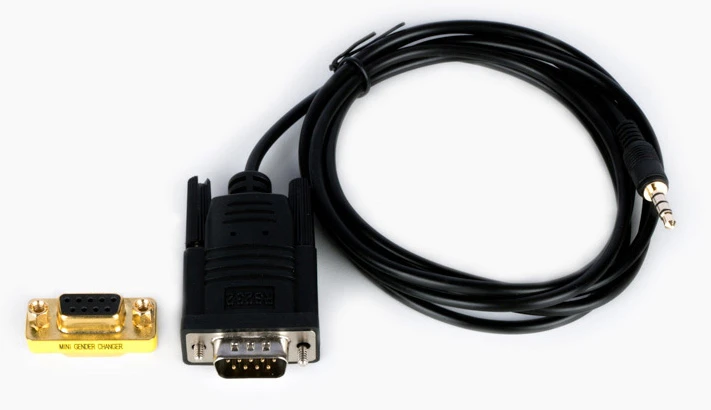

- 5 foot (1.5 meter) RS-232 adapter cable
- Includes gender changer for male DE-9 connector
- Award-winning 10 year limited product warranty
Specifications:
- Ports
- Network Connection: RJ-45, 100/10 Mbps Ethernet Protocol
- RS-232: DB9, male, with gender changer 5 feet cable with 3.5 mm mini-stereo connector
- Full support for Tx, Rx, CTS, RTS, DTR, and DTS signals
- Bidirectional communication with hardware handshaking
  Power
- USB: Micro-B
- PoE: 802.3af-compliant
  Weights & Dimensions
- H x W x D (AT-VCC-RS232): 0.60 x 1.28 x 2.20 (inch): 15.24 x 32.51 x 55.88 (mm)
- H x W x D (AT-VCC): 0.82 x 1.22 x 2.58 (inch): 20.82 x 30.98 x 65.53 (mm)
- AT-VCC-RS232: 0.10 (lb): 0.04 (kg)
- AT-VCC: 0.05 (lb): 0.02 (kg)
Item Includes:
- Includes gender changer for male DE-9 connector
Warranty:
- Award-winning 10 year limited product warranty
GTIN:

0846352005689
