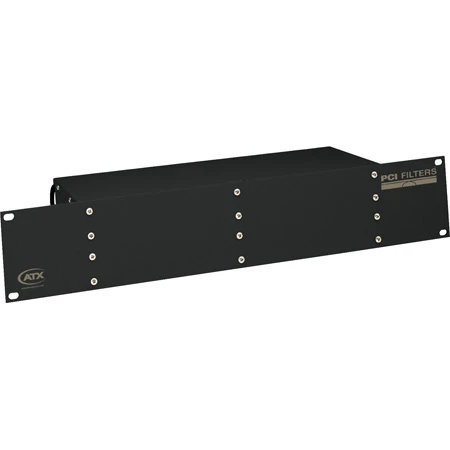

ATX BWH-BWLQ-R Brick Wall Low/Highpass Combo Filter (QAM) – R 54MHz – 65MHz (Pass Channels 2-5)

Original price was: $307.00.Current price is: $95.99.

SKU: BWFYA 31316833 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

BWH-BWLQ-R – Overview

Models BWL-9050 & BWH-9060 (BWH-BWLQ-R) are extremely sharp cut-off, low & highpass filters designed primarily to uncombine a CATV cable feed to interface to a fiber optics link or for reinserting a block of new programming. Transition from knee to first channel to be rejected is 1.5 MHz. Two brick wall filters can be combined to make an extremely sharp band rejection or bandpass filter.

Features:
- Temperature stable
- Low frequency vibration stable
- Final production graph available on request
- 3.5″ rack mounted version
- F-type connectors standard
- Customer specified cut-off frequency
Specifications:
- Passband: Customer Specified Cut-off Frequency or Channel
- Stopband: 55dB (min)
- Adjacent Channel Loss: 4dB
- Insertion Loss: 2dB
- Impedance: 75Ω
- Temperature Range: -4°F to 149°F (-20° to 65°C)
- Humidity: 5 to 95% (non-condensing)
- Dimensions (HxWxD):
- 2RU: 3.5 x 19 x 5.75″ (8.89 x 48.26 x 14.6cm)
  4RU: 7 x 19 x 6″ (17.8 x 48.26 x 29cm)
- Weight:
  2RU: 5.29Lbs (2.4kg)
  4RU: 10Lbs (4.55kg)
