CA-30RK1000 – Overview
ATX Networks CA-30RK1000 is a 1-GHz broadband push-pull headend amplifier with 158 Channel frequency range. With 30dB Gain, and ±0.5dB flatness across ban the CA-30RK1000 is designed for optimal carrier to noise ratio and superior picture quality.
-
Features:
- 158 Channel frequency range
- 30dB Gain
- ±0.5dB Flatness

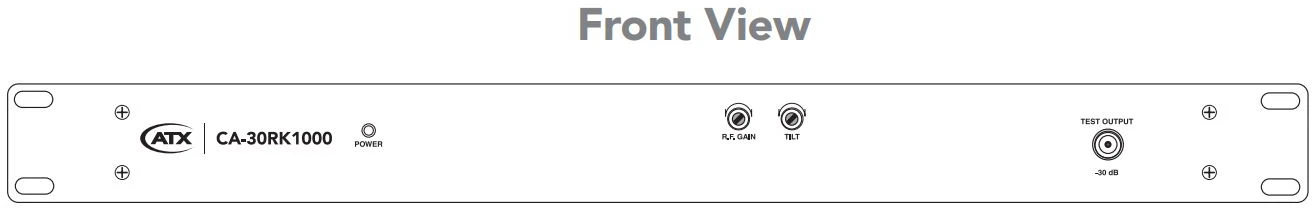

- Front panel controls and test point
- Built-in lightning and line voltage surge protection
- Low noise performance
-
Specifications:
- Bandwidth (CA-30RK1000): 54~1000MHz
- Gain: 30dB
- Flatness: 0.5dB
- Composite Second Order: 70dB
- Composite Triple Beat: 75dB
- Output Test Point Loss: -30dB
- Voltage Input: 115VAC
- Power Frequency: 60Hz
- Power Required: 4Watt
- Dimensions (LxDxH): 19 x 3 x 1.75″
- Weight: 3.8 lbs
-
Item Includes:
- 1x 1GHz Broadband Push-Pull Headend Amplifier
