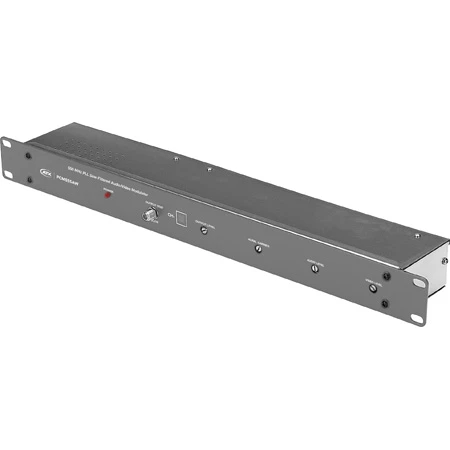

ATX Networks PCM55SAW 550 MHz Channelized-Agile PLL SAW-Filtered A/V Modulator – Channel 24

Original price was: $253.50.Current price is: $96.99.

SKU: BWFYA 57670520 Categories: Digital CATV & RF Distribution, RF Modulators

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

PCM55SAW CH-24 – Overview

The ATX Network PCM55SAW is a 550 MHz Channelized PLL SAW-filtered A/V Modulator. It delivers 55 dBmV minimum output for a 64 dB in-band carrier to noise ratio to provide superior picture quality. It has an 82 Channel frequency range 54 MHz to 550 MHz (CATV 2~13, A1~A5, A~PPP). The PCM55SAW is BTSC Stereo compatible with a disable switch to provides pass-through for stereo signals. Front panel controls and a convenient -30 +/-10 dbMv output test point. Choose from several channels.

Features:
- +55 dBmV RF output level
- Phase lock loop frequency control
- SAW Filtering for maintenance free adjacent channel configuration
- Spurious output -60 dBc
- Auxiliary AC outlet
- Cool operation
- Excellent value for your investment dollar
Specifications:
- RF Output Level: 55 dBmV
- Carrier to Noise:(In-band)
- PCM55SAW: 64 dB
- Spurious Output: > -60 dBc with A/V ratio @ -15 dB
- Video Frequency Response: ± 1.5 dB
- Video Signal to Noise: 60 dB
- Audio Input Type: Monaural/MTS Baseband
- Audio Frequency ResponseL: 50 to 15,000 Hz
- Video Input Connection: 75 Ω F-Female
- Audio Input Connection: PCM55SAW 600 Ω F-Female Unbalanced
- RF Output Connection: 75 Ω F-Female
- Voltage Input: 120VAC
- Power Output Receptacle: Yes
- Dimensions: 19(W) x 3(D) x 1.75(H)
- Weight: PCM55SAW: 3.6 lbs.
