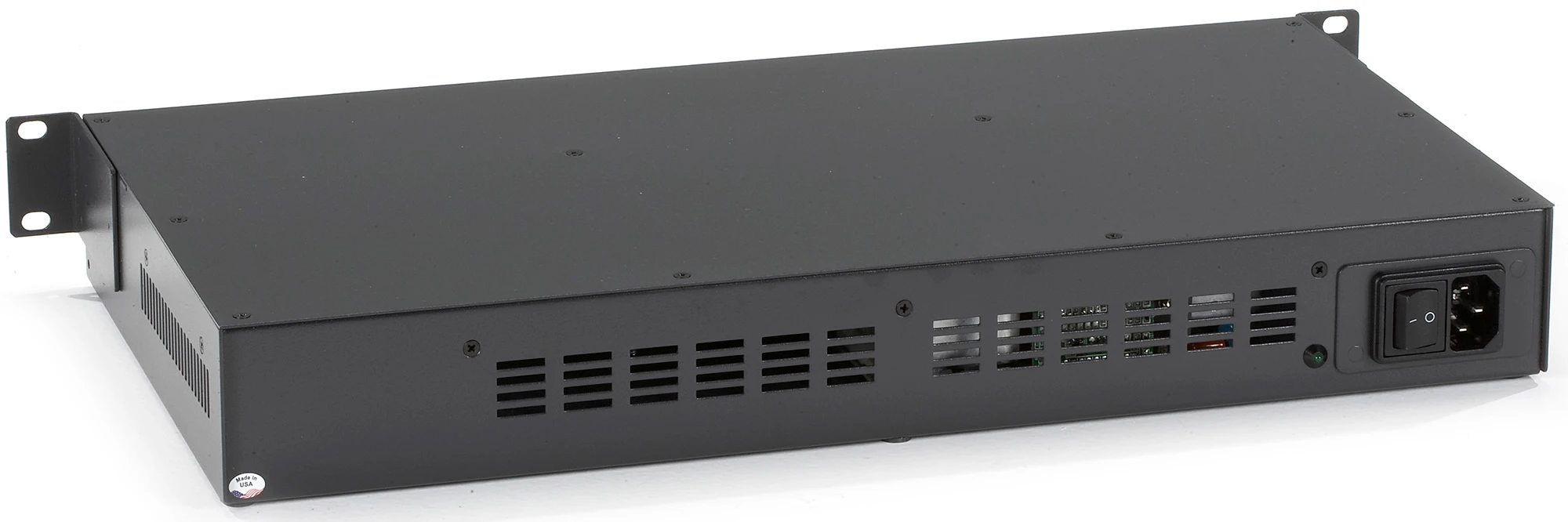

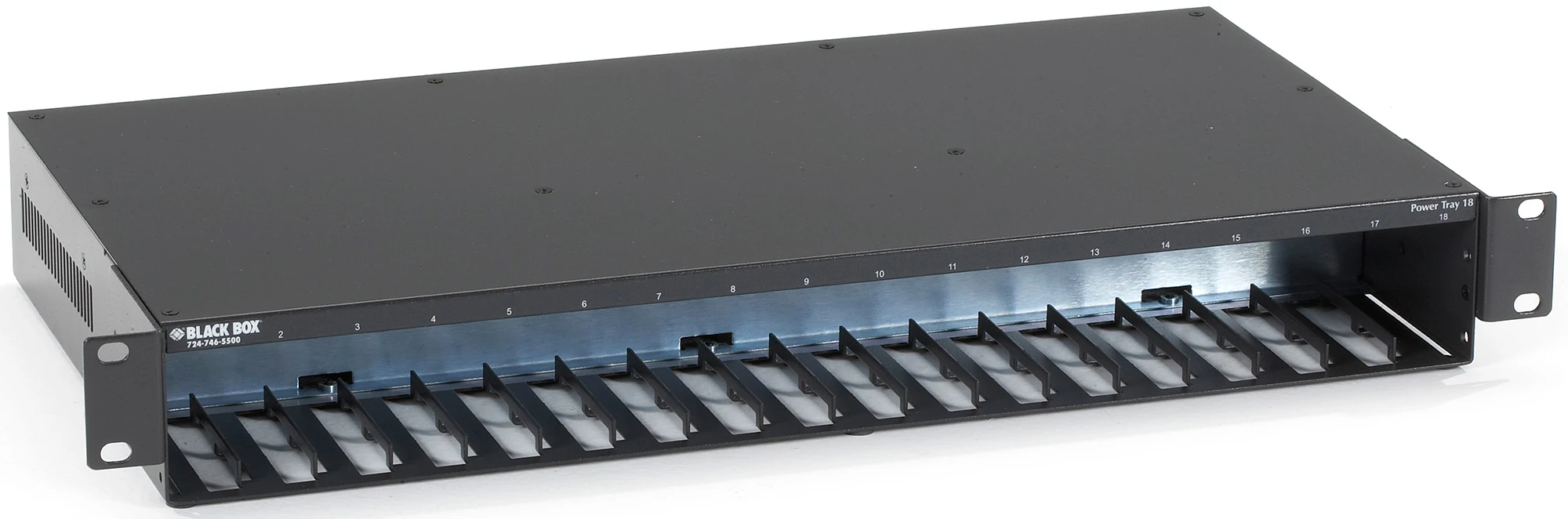

Black Box LHC018A-AC-R2 Power Tray For Multipower Miniature Media Converters – 18 Slot

Now it’s easier than ever to bring fiber to your network, no matter if your network is spread across a business campus, a large industrial site, or over great distances and/or subjected to temperature extremes. The Multipower Miniature Media Converters bring fiber to the desktop.

Good things, small packages.
Multipower Miniature Media Converters are easy to install (literally plug-and-play), tiny enough to fit in anywhere, and very economical. Use them to bring fiber to the desktop or add fiber segments to your network to gain extra distance-up to 43.5 miles (70 km) wit single-mode fiber.

Twice the conversion power!
A Multipower Miniature Media Converter enables you to connect 10/100/1000-Mbps twisted-pair network segments to fiber optic cabling. It’s both a media and data rate converter with 10/100/1000 auto-negotiation on the twisted-pair port. The fiber port operates at 100 Mbps or 1000 Mbps, depending on model. All Multipower Miniature Media Converters have an HDX/FDX function for half- and full-duplex autosensing.

This product works with:
Media Converter Gigabit Ethernet Single Mode 1310nm 10km SC
Media Converter Gigabit Ethernet Single Mode 1310nm 40km SC
Media Conv Gig Ethernet Single Mode 1310nm Tx 1550nm Rx 10km SC
Media Conv Gig Ethernet Single Mode 1550nm Tx 1310nm Rx 10km SC
Media Conv Gig Ethernet Single Mode 1310nm Tx 1550nm Rx 40km SC
Media Conv Gig Ethernet Single Mode 1550nm Tx 1490nm Rx 60km SC
Media Converter 10Base-T/100Base-TX Ethernet MM 1300nm 2km SC
Media Converter Fast Ethernet Multimode 850nm 300m SC
Media Conv Fast Ethernet Multimode 1550nm Tx 1310nm Rx 2km SC
Industrial MultiPower Media Converter – 10-/100-Mbps Copper to 100-Mbps Fiber for Duplex Fiber, Single-Mode 1310-nm, 30 km, ST

Installation is easy.
Just connect a Multipower Miniature Media Converter to the RJ-45 connector on your PC’s 10/100/1000-Mbps Ethernet port using CAT5e cable, then connect fiber optic cable to the other side of the media converter. What’s more, these tiny converters tuck unobtrusively behind your PC.

Go the distance with fiber.
Multipower Miniature Media Converters using multimode fiber support distances of up to 984.2 feet (300 m) or 1.2 miles (2 km)-enough distance for most LAN applications. For more extensive campus applications, choose Single-Mode or Single-Mode, Single-Strand models for long-distance runs of up to 6.2, 12.4, 24.8, or 43.5 miles (10, 20, 40, or 70 km).
