Blonder Tongue 6582 FlexCoder – Flexible Transcoder – Combines Edge QAM / Off-air Transcoding And IP Grooming

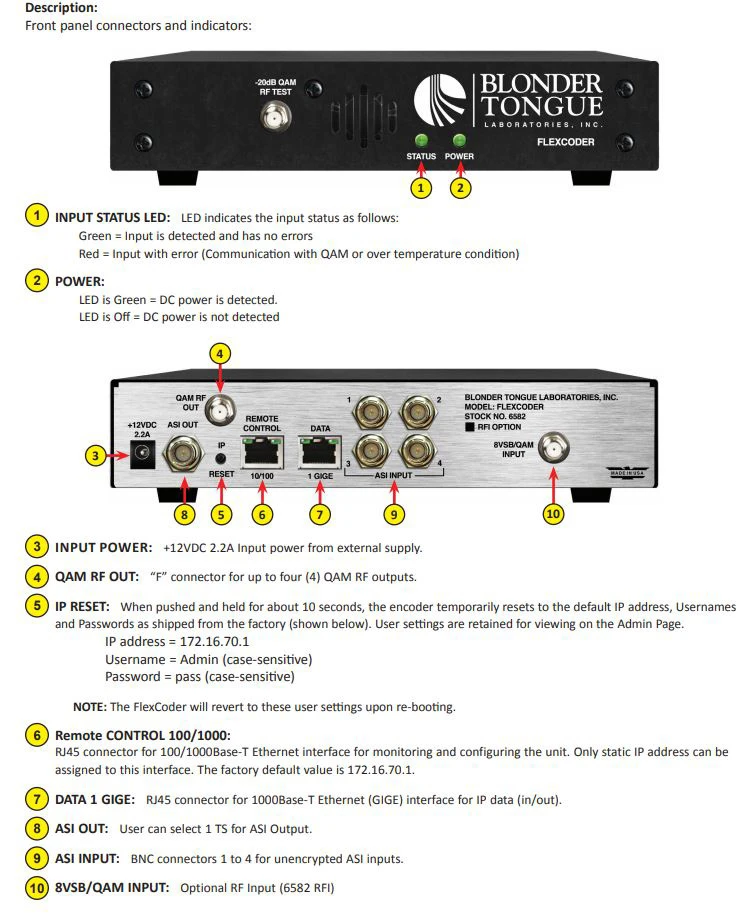

6582 – Overview

• Features:

  • De-multiplexes MPTS to SPTS; MPEG-2 or H.264/H.265
  • Multiplexes SPTS to MPTS via IP and/or QAM outputs; MPEG-2 or H.264/H.265
  • Can pass-thru or modify PSIP information such as major/minor channels, short names, and corresponding program IDs (PIDs)
  • Allows for null packet insertions or deletion supporting Constant Bit Rate (CBR)
  • UDP Unicast or Multicast support
  • Supports UDP delivery of IP packets
  • Separate Web-based management port for local and remote control
  • Supports three audio formats: AC3, AAC and MPEG-1 Layer 2, E-AC3


• Specifications:

  • Inputs
  • IP Mode Connectors: 1x RJ-45
  • IP Mode Standard: 1000Base-T Ethernet (GigE)
  • UDP/RTP: Supported (user-selectable)
  • Protocols: IGMPv2/IGMPv3 Supported
  • Stream Portfolio Standard: ISO/IEC 13818-1
  • TS Packet Length: 188 bytes
  • Sync Byte: 0x47
  • SPTS and MPTS: Supported
  • Muxing: 32 SPTS to 4 MPTS
  • Bit Rate: Constant
  • ASI Connector: 4x BNC Female
  • ASI Standard: DVB-ASI; EN 50083-9

    Output

  • No. of Output Modules: 1x Quad-QAM (total of 4 QAM channels)
  • Connector: 1x “F” Female (for combined output)
  • Modulation: QAM 16, 32, 64, 128, and 256
  • Standards: ITU-T J.83; Annex A and B
  • DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
  • Frequency Range: 54 to 1002 MHz
  • Tuning: CATV Channel Selectable (Ch. 2 to 158)
  • Channels’ Bandwidth: 24 MHz (4x Adjacent 6 MHz)
  • RF Level: +40 dBmV (±1 dB increment)
  • RF Level Adjustment Range: +35 to +42 dBmV (±1 dB increment)
  • Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
  • Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
  • Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
  • Phase Noise: -98 dBc (@ 10 kHz)
  • Spurious: -60 dBc
  • Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
  • Impedance: 75 Ω
  • Spectral Inversion: Auto Recognition
  • Carrier Suppression: 45 dB
  • Return Loss: 14 dB typical
  • Signal-to-Noise Ratio (SNR): 40 dB typical
  • MER: 39 dB typical
  • I/Q Phase Error: Less than 1 degree
  • I/Q Amplitude Imbalance: Less than 1%

    General

  • Dimensions (W x D x H): 8.69 x 12.70 x 1.97 inches (220.7 x 322.6 x 50.0 mm)
  • Power: 12 VDC External Power Supply
  • Power Dissipation: 20 W
  • Weight: 3.0 lbs (1.36 kg)
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
  • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing
