6799 – Overview

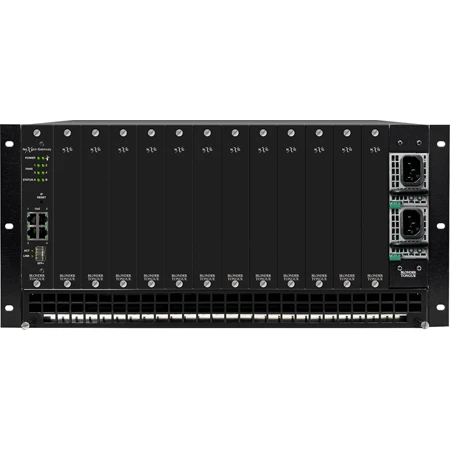

The Blonder Tongue NXG System Kit, containing the Mainframe Chassis, Controller Module, and Power Supply, is a powerful 5RU module-based IP digital video platform set up that allows for complete customization based on specific technological needs.
The NXG addresses the challenges of migrating to future IP-DRM content protection practices while supporting today’s CableCARD® ingest encryption.
-
Features:
- IP routing and traffic management
- System configuration and management via a powerful Linux-based monitoring and control system
- Module interconnection via 60 Gbps capacity high-speed backplane
- Hot-Swappable Power Supplies and Fans
- Distributes DC power to various sections and modules via 2 fully-redundant power supplies
- Alarm Summary and Event Logs
- System Status of all Deployed NXG Modules
- Import, Export, and Edit of Configuration Files
- Remote Firmware Updates to all Modules
- Authentication Management via TACACS+ (future)
- Supports Fully-Redundant Configurations in IP-based Installations
- Supports Fully-Redundant Configurations in QAM-based Installations with Additional HW
- SNMP Support
-
Specifications:
- Gigabit Ethernet Ports: 4x RJ45 GigE for IP Input or Output & Control
- SFP+: 1x 10 GigE SFP+ data port for distribution of IP streams and remote monitoring & control
- Status: LED Indicators for Power, Temperature, Fans, and all network connections
- Remote Monitoring/Control: GUI-based menu via web browser, automated e-mail system alarms, and SNMP traps for asynchronous alarms
Mainframe
- Power: 100-240 VAC
- Power Consumption: 16W (master control only)
- Operating Temp: 32°F – 122°F (0°C – 50°C)
- Storage Temp: -13°F – 158°F (-25°C – 70°C)
- Operating/Storage Humidity: 0% – 95% RH @ 35°C max, non-condensing
- Dimensions (WxHxD): 19″ x 8.72″ x 18.6″ (483mm x 221mm x 472mm)
- Weight: 17lbs (7.7kg)
Power Supply Unit
- Power:
IN: 100-240 VAC; 9A; 50/60Hz
OUT: 12VDC; 54.2A; 650W max - Power Consumption: 650W (each power supply)
- Operating Temp: 23°F – 122°F (-5°C – 50°C)
- Storage Temp: 40°F – 158°F (-40°C – 70°C)
- Operating/Storage Humidity: 5% – 96% RH @ 45°C max, non-condensing
- Dimensions (WxHxD): 2.15″ x 1.57″ x 9″ (54.5mm x 40mm x 228mm)
- Weight: 1.8lbs (0.81kg)
