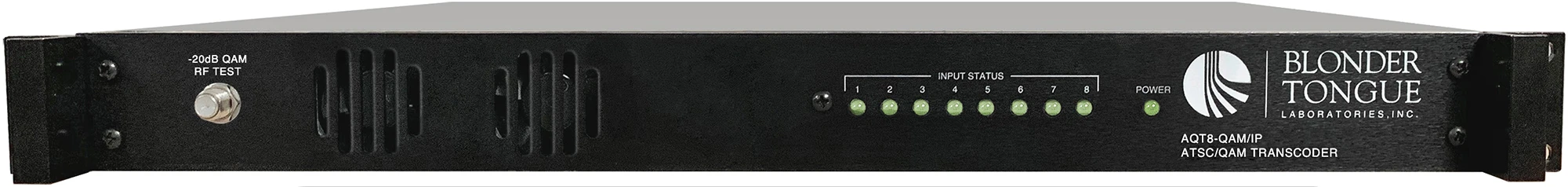

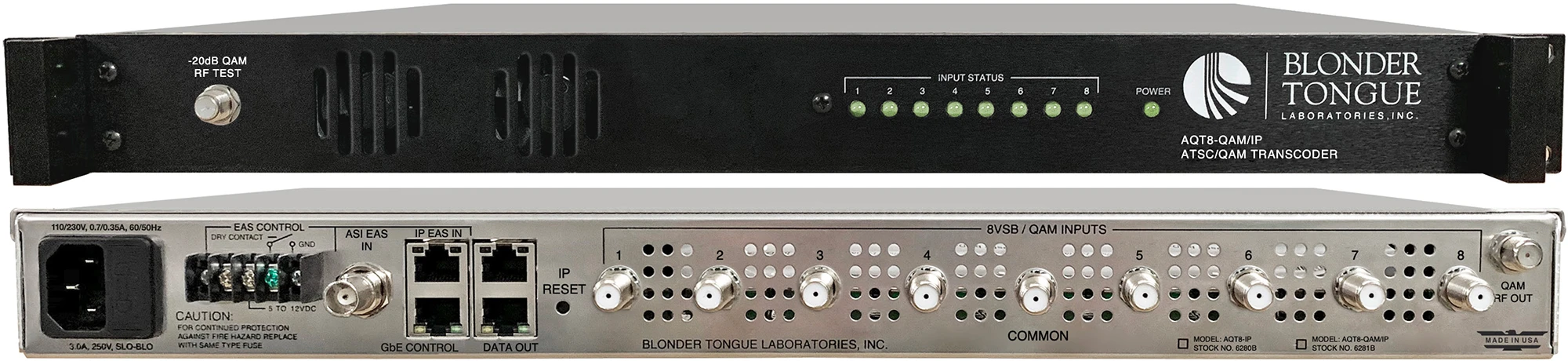

Blonder Tongue Aircaster AQT8-IP ATSC/QAM Transmodulator – Customizable IP Output From Off-air And/or QAM Input Sources

Original price was: $399.00.Current price is: $96.99.

SKU: BWFYA 43972996 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

AIRCASTER-AQT8IP – Overview

The Aircaster AQT8-IP allows the user to create a custom IP output from off-air and/or QAM input sources. The unit accepts eight 8VSB off-air or QAM sources and simultaneously outputs these SPTS and/ or MPTS programs in IP. At the same time, the AQT8-IP can be configured in Pass Through mode, which directly maps the demodulated RF port content in MPTS format to IP output.

The AQT8-IP can accept encrypted QAM sources, and output the encrypted IP transport streams programs in MPTS or SPTS formats, while preserving the MPEG tables (PAT, PMT, PSIP, VCT, and MGT) from the source.

The unit allows the user to change the PID, program number, short name, and major/minor channel (PSIP) information on any program.

The AQT8-IP features Emergency Alert System (EAS) program switching through either an ASI or IP format EAS input, and terminal block contacts for triggering EAS messages.

Features:
- Encrypted QAM sources can be mapped to IP MPTS or SPTS formats in Pass Through mode for Remote PHY and Switch Digital applications
- Accepts up to eight RF inputs in 8VSB/QAM format
- Provides one common 8VSB/QAM input port with an internal active splitter
- PSIP manipulation
- Accepts EAS input in ASI or IP formats
- Supports EAS switching-based on contact closure trigger, or +5 to +12 VDC input
- Comprehensive GUI-based remote monitoring and control via any standard Web browser
Specifications:

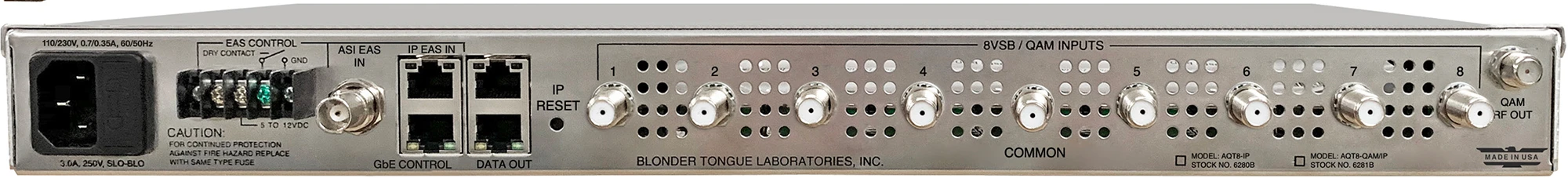

- Connectors:
- 8VSB/QAM: 8x “F” Female, 1x Common “F” Female with Internal Active Splitter
  8VSB Mode:
- Standard: ATSC Digital Television A/53E
- Tuning Range: UHF (Ch. 14-83), VHF (Ch. 2-13)
- Data Rate: 19.392 Mbps
- Bandwidth: 6 MHz
- Power Level: -20 to +20 dBmV
- Impedance: 75 Ω
  QAM Mode:
- Standard: ITU-T J.83 – Annex B (64 & 256 QAM)
- Tuning Range: CATV Ch. 2-158 (STD, HRC, IRC)
- Data Rate: 38.8 Mbps (QAM 256); 26.97 Mbps (QAM 64) – Auto Detect
- Bandwidth: 6 MHz
- Power Level: -15 to 20 dBmV (@ QAM 256), -20 to 20 dBmV (@ QAM 64)
- Impedance: 75 Ω
  Emergency Alert System:
- ASI Connector: 1x BNC Female
- ASI Standard: DVB-ASI; EN 50083-9 (SPTS)
- IP Connector: 1x RJ45
- IP Standard: 1000Base-T (GigE)
- IP UDP/RTP: Supported (user-selectable)
- IP Video Bit Rate: The EAS program bit rate must not exceed the lowest program video bit rate it will replace. Example: EAS at 2.5 Mbps
  will not work for a program at 2.0 Mbps.
  General:
- Dimensions (W x D x H): 19.0 x 16.0 x 1.75 inches, (483 x 363 x 44 mm)
- Power: 110/230 VAC, 0.7/0.35 A, 60/50 Hz
- Power Consumption: 27 W
- Weight: 7.4 lbs (3.35 kg)
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating/Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensation
Item Includes:
- 1x AQT8-IP Model
- 1x Power Cord with IEC C13 Line Socket and 3-Pin Type B NEMA 5 plug
- 1x Blonder Tongue Part# 515102875A – Cross Link Ethernet Cable Assembly
