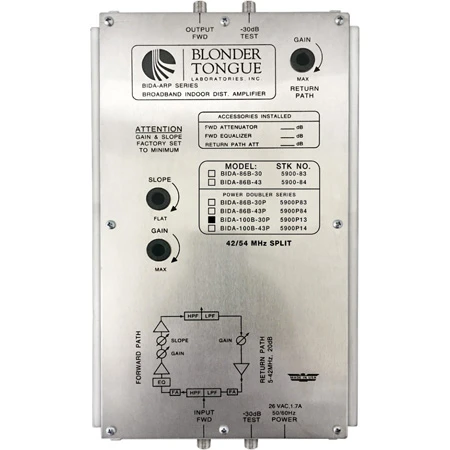

Blonder Tongue BIDA 100B-30P Indoor Distribution Amplifier – 30dB – 54-1000 MHz – Power-Doubling – Active Return

Original price was: $340.00.Current price is: $98.99.

SKU: BWFYA 10217597 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

BIDA 100B-30P – Overview

The BIDA 5900 Series with Active Return Path is a completely self-contained broadband indoor distribution amplifier designed for CATV and SMATV signal distribution systems that use a cable drop as a signal source.

Push-pull and power-doubling hybrid amplifier technologies are available for the BIDA 5900 Series with RF bandwidths ranging from 54-860/1000 MHz with 30 or 43 dB gains.

All BIDA 5900 models have a return path bandwidth of 5-42 MHz and can be configured for either a passive (factory default) or integrated active return. When field configured to an active return, the BIDA 5900 Series have a full gain of 20 dB. All models can be attenuated over a range of 10 dB in the forward path and 18 dB in the return path. Gain and slope controls are located on the front panel for easy set-up and adjustment. Two -30 dB back-matched test points are provided to permit testing without interruption of service.

The aluminum chassis is designed to provide excellent heat dissipation thus allowing operation at high ambient temperatures with no degradation of performance or reliability

Features:
- Provides Two-Way Capability with an Passive or Active Return Path Set by Field-Changeable Jumpers
- Easily Adjustable Front Panel Gain and Slope Controls
- Hybrid IC Circuitry for High Output with Low Distortion
- Optional Plug-in Fixed Equalizer and Attenuator Capability for Input Signal Conditioning
- Integrated Return Path Configurable for either Passive or Active Operation
- Push-pull and Powering-doubling Hybrid Models Available
- Input and Output Test Ports
- Large Heat Sinks for Exceptional Heat Dissipation
Specifications:
- Frequency range: 54-1000 MHz
- Gain: 30 dB
- Flatness: °0.75 dB
- Gain control range: 10 dB
- Slope control range: 8 dB
- Input return loss: 16 dB
- Output return loss: 16 dB
- Noise figure: 8.5 dB
- Number of channels: 150
- Output level: 32/40 dBmV
- Composite triple beat (CTB): -70 dB
- Cross-modulation (XMOD): -66 dB
- 2nd order composite (CSO): -69 dB
- Impedance: 75 Ω
- Hum modulation: 70 dB
- Input/Output test port level: -30 dB; °2 dB
- Input/Output Test Port Return Loss: 20 dB
- Operating Temperature Range: -20 to +60 °C
- Power Requirements: Wall Power Transformer 105-130 VAC, 60 Hz 0.38 AMP Max
- Dimensions (L x W x H): 10.5″ x 7.25″ x 3.25″ (26.4 cm x 18.42 cm x 8.26 cm)
- Shipping Weight: 6 lbs (2.7kg)
