CLEARVIEW+ – Overview
Perfect for Live Linear Broadcasting, the Blonder Tongue Clearview+ hardware-based video compression technology provides superior Transcoding quality at low bit rates. The Clearview+ is designed to support a wide range of video and audio inputs and outputs, including DOLBY® Digital Audio encoding.
The Clearview+ accepts twenty-four (24) HD or SD programs simultaneously, using up to 1 Gb of data throughput. The unit can accept IP video transport streams in MPEG-2, H.264, or H.265 and output these streams to any combination of MPEG-2, H.264, and H.265 formats.
Product features include transrating capability of specific video bit rates and specific video resolutions.
-
Features:
- Accepts up to 24 HD or SD programs in 1RU
- DOLBY Digital Audio capability
- Superior Transcoding quality at low bit rates
- Stand-alone 1RU Transcoder for the Advanced Transrating of IPTV signals
- SD to HD upscaling or HD to SD downscaling
- IP input up to 24 SPTS MPEG-2, H.264 (AVC), H.265 (HEVC) HD programs
- IP output up to 24 SPTS MPEG-2, H.264 (AVC), H.265 (HEVC) HD programs
- Primary and secondary Audio types: Dolbyr Digital AC3, AAC, MPEG1-Layer2 (pass-through only), and MP3
- 1080i to 720p or 720p to 1080i resolution conversions yields improved compatibility/bandwidth savings

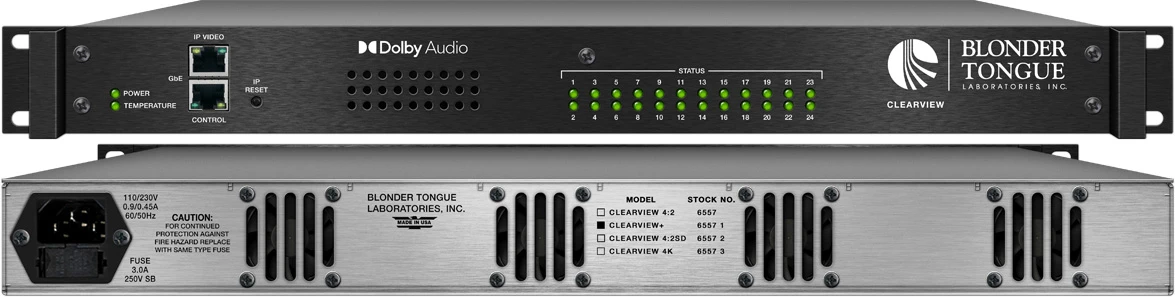

- 24 front panel Status LEDs, one (1) per each program stream
- Front panel Temperature LED
- Easy-to-use GUI for monitoring and control
-
Specifications:
- Inputs & Protocols
- Connectors: 1x Bi-directional Front Panel RJ45 (IP Video Port, Input/Output), 1x Bi-directional Front Panel RJ45 (Control Interface)
- Standard: 1000Base-T (GbE)
- Protocols Supported: UDP
- Standard: ISO/IEC 13818-1 Systems
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- TS Supported: 24 SPTS
- Video Format: MPEG-2, H.264 (AVC); H.265 (HEVC)
- Video Resolution: 480i (60 FPS); 480p (30/60 FPS); 720p (30/60 FPS); 1080i (60 FPS); 1080p (30 FPS)
- Closed Captioning: EIA608/EIA708
- Addressing: Unicast
- Audio Input Formats: Dolby® AC3, AAC, MPEG1-Layer2 (Pass-through/Decode only), MP3
- SAP: Supported
- Audio Rates: 64, 96, 112, 128, 160, 192, 224, 256, 320, and 384 Kbps
Alarms & Monitoring
- Local Monitoring: 1x Power LED, 1x Temperature LED, 24x Status LEDs
- Local Control: 1x IP Reset Button
- Remote Control: 1x RJ45 (1000Base-T GbE)
Outputs & Protocols
- Connector: 1x Bi-directional Front Panel RJ45 (IP Video Port, Input/Output)
- Standard: 1000Base-T (GbE)
- Protocols Supported: UDP
- Standard: ISO/IEC 13818-1 Systems
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- Encoding Type: CBR/Capped VBR
- Video Bit Rates: 2-19 Mbps (0.1 Mbps increments)
- TS Supported: 24 SPTS
- Video Format: MPEG-2, H.264 (AVC); H.265 (HEVC)
- Video Resolution: 480i (60 FPS); 480p (30/60 FPS); 720p (30/60 FPS); 1080i (60 FPS); 1080p (30 FPS)
- Closed Captioning: EIA608/EIA708
- Addressing: Unicast, Multicast
- Audio Output Formats: Dolby® AC3, AAC, MP3 (MPEG1-Layer2 Pass-through only)
- SAP: Supported
- Audio Bit Rates: 128, 192, and 256 Kbps
General Specifications
- Dimensions: 19.0 x 19.2 x 1.75″
- Unit Weight: 9.5 lbs
- Shipping Weight: 12 lbs
- Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
- Power Consumption: 64 W
- Operating Temperature: 32 to 122 °F
- Storage Temperature: -13 to 158 °F
- Operating/Storage: 0 to 95% RH @ 35 °C max
- Humidity: Non-condensation
-
Item Includes:
- 1x Clearview+ Transcoder
- 1x Power Cord with IEC C13 line socket and 3-pin Type B NEMA 5 plug
