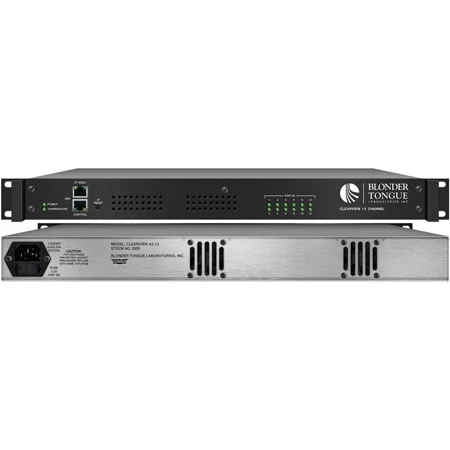

Blonder Tongue Clearview 4:2 12 Program HD 1080 Transcoder With Audio Passthrough & COM3000

Original price was: $395.00.Current price is: $96.99.

SKU: BWFYA 87548572 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

CLEARVIEW 4:2-12 – Overview

The Clearview 4:2 12 can Transcode up to twelve (12) HD or SD programs from H.264 (MPEG-4) to MPEG-2 in 1RU. The unit accepts Unicast H.264 IP transport streams and re-encodes the video content to SD MPEG-2 transport streams for IP Unicast delivery.

The Clearview 4:2 12 can be configured to receive up to twelve (12) H.264 AES-128 encrypted IP channels from Technicolor COM3000/2000 satellite receivers. The Clearview 4:2 12 decrypts the AES-128 content and Transcodes the decrypted H.264 content into MPEG-2, while preserving the DirecTV “forensic watermarking” and returns the content to the Technicolor COM3000/2000 devices.

Features:
- Decrypts AES-128 encrypted H.264 video content
- IP input that supports up to 12 SPTS H.264 HD programs
- IP output supports up to 12 SPTS MPEG-2 HD programs
- Preserves embedded watermarking on outbound MPEG-2 video content
- Easy-to-use GUI for monitoring & control
- 12 front panel Status LEDs, one for each program stream
- One front panel Temperature LED
Specifications:
- Input
- Connectors: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
- Standard Protocols Supported: UDP/IP
- Standard: 1000Base-T (GbE)
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- Decryption: AES-128
- TS Supported: 12 SPTS
- Video Resolution:
  480i (30 FPS)
  720p (60 FPS)
  1080i (30 FPS)
  1080p (30/60 FPS)
- Audio: Pass-through
- Routing Protocol: Unicast
  Alarms & Monitoring
- Local Monitoring:
  1x Power LED
  1x Temperature LED
  12x Status LEDs
- Local Control: 1x IP Reset button
- Remote Control: 1x RJ45 (1000Base-T GbE)
  Output
- Connector: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
- Standard: 1000Base-T (GbE)
- Protocols Supported: UDP
- Standard: ISO/IEC 13818-1 Systems
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- Bit Rate: Constant
- # of TS Supported: 24 SPTS
- CODEC: MPEG-2
- Output Resolution: 480i (30 FPS)
- Audio: Pass-through
- Routing Protocol: Unicast
  General Specifications
- Dimensions: 19.0 x 19.2 x 1.75″ (483 x 488 x 45 mm)
- Unit Weight: 9.5 lbs. (4.31 kg)
- Shipping Weight: 12 lbs. (5.44 kg)
- Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
- Power Consumption: 60 W
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating/Storage: 0 to 95% RH @ 35 °C max,
- Humidity: non-condensation
