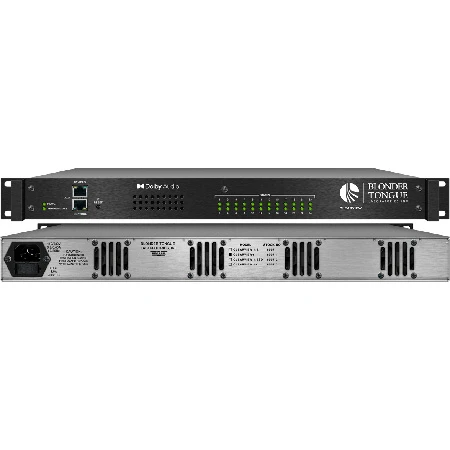

CLEARVIEW 4:2 – Overview
The Clearview 4:2 can Transcode up to twenty-four (24) HD or SD programs from H.264 (MPEG-4) to MPEG-2 in 1RU. The unit accepts Unicast H.264 IP transport streams and re-encodes the video content to SD MPEG-2 transport streams for IP Unicast delivery.
The Clearview 4:2 can be configured to receive up to twenty-four (24) H.264 AES-128 encrypted IP channels from Technicolor COM3000/2000 satellite receivers. The Clearview 4:2 decrypts the AES-128 content and Transcodes the decrypted H.264 content into MPEG-2, while preserving the DirecTV `forensic watermarking’ and returns the content to the Technicolor COM3000/2000 devices.
-
Features:
- H.264 to MPEG-2 Transcodes up to 24 HD or SD programs
- Full 1080p HD support, IP input to IP output
- Compatible with Technicolor’s COM3000 DirecTV receivers
- Compatible with BT Labs’ NXG to support on-site bulk transcoding applications
-
Specifications:
- Input
- Connectors: 1x Bi-directional Front Panel RJ45 (IP Video Port, Input/Output), 1x Bi-directional Front Panel RJ45 (Control
Interface) - Standard Protocols Supported: UDP
- Standard: ISO/IEC 13818-1 Systems
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- TS Supported: 24 SPTS
- Video Format: MPEG-2, H.264 (AVC); H.265 (HEVC)
- Video Resolution:
480i (60 FPS);
480p (30/60 FPS);
720p (30/60 FPS);
1080i (60 FPS);
1080p (30 FPS); - Closed Captioning: EIA608/EIA708
- Addressing: Unicast
- Audio Input Formats: Dolby® AC3, AAC, MPEG1-Layer2 (Pass-through/Decode only), MP3
- SAP: Supported
- Audio Rates: 64, 96, 112, 128, 160, 192, 224, 256, 320, and 384 Kbps
Alarms & Monitoring
- Local Monitoring:
1x Power LED
1x Temperature LED
24x Status LEDs - Local Control: 1x IP Reset Button
- Remote Control: 1x RJ45 (1000Base-T GbE)
Output
- Connector: 1x Bi-directional Front Panel RJ45 (IP Video Port, Input/Output)
- Standard: 1000Base-T (GbE)
- Protocols Supported: UDP
- Standard: ISO/IEC 13818-1 Systems
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- Encoding Type: CBR/Capped VBR
- Video Bit Rates: 2-19 Mbps (0.1 Mbps increments)
- TS Supported: 24 SPTS
- Video Format: MPEG-2, H.264 (AVC); H.265 (HEVC)
- Video Resolution:
480i (60 FPS);
480p (30/60 FPS);
720p (30/60 FPS);
1080i (60 FPS);
1080p (30 FPS) - Closed Captioning: EIA608/EIA708
- Addressing: Unicast, Multicast
- Audio Output Formats: Dolby® AC3, AAC, MP3 (MPEG1-Layer2 Pass-through only)
- SAP: Supported
- Audio Bit Rates: 128, 192, and 256 Kbps
General Specifications
- Dimensions: 19.0 x 19.2 x 1.75″ (483 x 488 x 45 mm)
- Unit Weight: 9.5 lbs. (4.31 kg)
- Shipping Weight: 12 lbs. (5.44 kg)
- Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
- Power Consumption: 64 W
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating/Storage: 0 to 95% RH @ 35 °C max,
- Humidity: non-condensation
