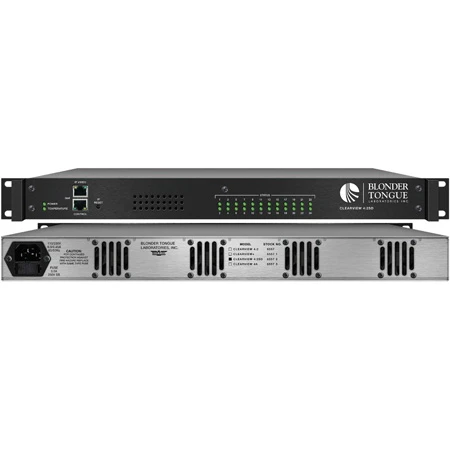

CLEARVIEW 4:2-SD – Overview
The Clearview 4:2 SD is a professional grade low-cost-per-stream video Transcoder, designed to Transcode up to (24) HD or SD programs from H.264/MPEG-4 sources to SD MPEG-2 output in a 1RU form factor. The unit accepts Unicast H.264 video, over IP transport streams and re-encodes the video content to SD MPEG-2 transport streams for IP Unicast delivery.
Clearview 4:2 SD can be configured to receive up to (24) H.264 AES-128 encrypted IP channels from Technicolor’s COM3000/2000 satellite receivers. The Clearview 4:2 SD decrypts the AES-128 content, Transcodes the decrypted HD or SD H.264 content into SD MPEG-2, while preserving DirecTV “forensic watermarking” and returns the content to the Technicolor COM3000/2000 devices.
-
Features:
- Decrypts Technicolor’s AES-128 encrypted H.264 video content.
- Unicast IP input that supports up to 24 SPTS H.264 HD programs
- Unicast IP output supports up to 24 SPTS MPEG-2 SD programs
- Preserves Technicolor’s embedded watermarking on outbound MPEG-2 video content
- Compatible with Technicolor’s COM3000 DirecTV receivers
- Easy-to-use GUI for monitoring & control
- 24 front panel Status LEDs (one for each program stream) and 1 front panel Temperature LED
-
Specifications:
- Input
- Connectors: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
- Standard Protocols Supported: UDP/IP
- Standard: 1000Base-T (GbE)
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- Decryption: AES-128
- TS Supported: 24 SPTS
- Video Resolution:
480i (30 FPS);
720p (60 FPS);
1080i (30 FPS);
1080p (30/60 FPS); - Audio: Pass-through
- Routing Protocol: Unicast
Alarms & Monitoring
- Local Monitoring:
1x Power LED
1x Temperature LED
24x Status LEDs
1x IP Reset button - Local Control: 1x RJ45 (1000Base-T GbE)
- Remote Control: GUI-based menu via, internal web server
Output
- Connector: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
- Standard: 1000Base-T (GbE)
- Protocols Supported: UDP
- Standard: ISO/IEC 13818-1 Systems
- TS Packet Length: 188 bytes
- Sync Byte: 0x47
- Bit Rate: Constant
- # of TS Supported: 24 SPTS
- CODEC: MPEG-2
- Output Resolution: 480i (30 FPS)
- Audio: Pass-through
- Routing Protocol: Unicast
General Specifications
- Dimensions: 19.0 x 19.2 x 1.75″ (483 x 488 x 45 mm)
- Unit Weight: 9.5 lbs. (4.31 kg)
- Shipping Weight: 12 lbs. (5.44 kg)
- Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
- Power Consumption: 64 W
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating/Storage: 0 to 95% RH @ 35 °C max,
- Humidity: non-condensation
