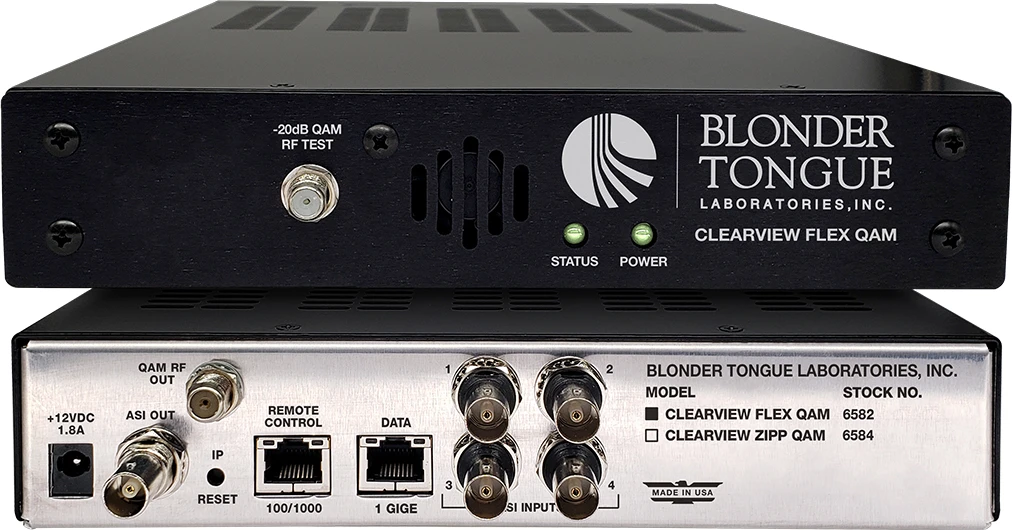

Blonder Tongue Clearview Flex QAM Flexible Transmodulator – 32 IP/ASI In/Cherry Pick/IP/ASI/4 QAM Out

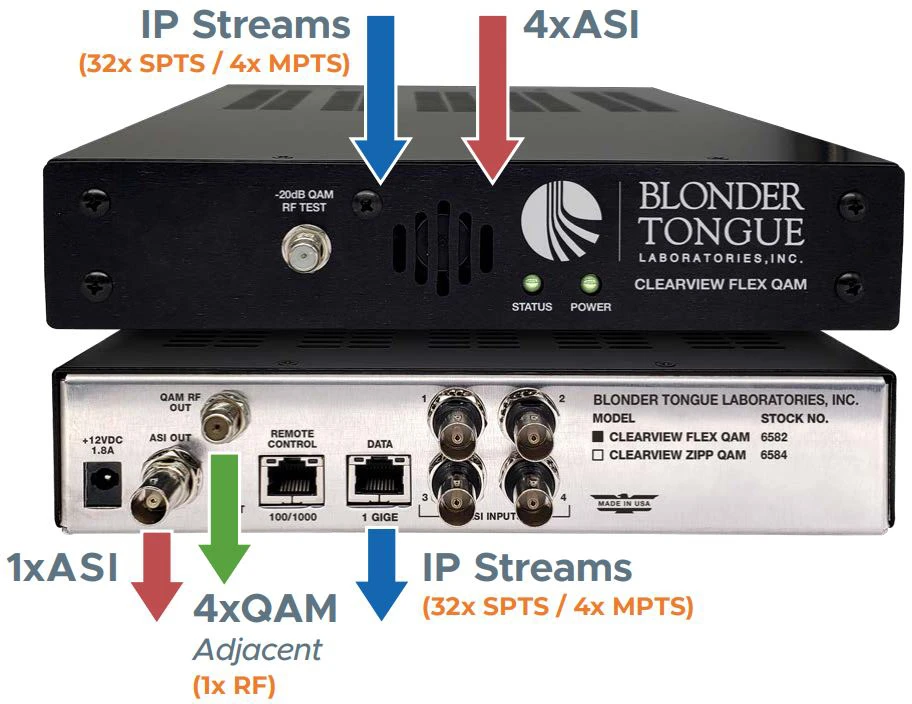

CLEARVIEW FLEX QAM – Overview

• Features:

  • Multiplexes SPTS to MPTS via IP and/or QAM outputs; MPEG-2 or H.264/H.265
  • De-multiplexes MPTS to SPTS; MPEG-2 or H.264/H.265
  • Can pass-thru or modify PSIP information such as major/minor channels, short names, and corresponding program IDs (PIDs)
  • Allows for null packet insertions or deletion supporting Constant Bit Rate (CBR)
  • UDP Unicast or Multicast support
  • Supports UDP delivery of IP packets
  • Supports three audio formats: AC3, AAC and MPEG-1 Layer 2, E-AC3


• Specifications:

  • Input
  • IP Mode
    Connector: 1x RJ45 (Rear Panel)
    Standard: 1000Base-T Ethernet (GigE)
    UDP/RTP: Supported (User-Selectable)
    Protocols Supported: IGMPv2/IGMPv3
  • Stream Portfolio
    Standard: ISO / IEC 13818-1 Systems
    TS Packet Length: 188 bytes
    Sync Byte: 0x47
    SPTS and MPTS: Supported
    Muxing: 32 SPTS to 4 MPTS
    Bit Rate: Constant
  • ASI
    Connector: 4x BNC Female
    Rates: DVB-ASI; EN 50083-9

    Output – QAM

  • # of Output Modules: 1x Quad-QAM (total of 4 QAM channels)
  • Connector: 1x “F” Female (for combined output)
  • Modulation: QAM 16, 32, 64, 128, and 256
  • Standards: ITU-T J.83; Annex A and B
  • DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
  • Frequency Range: 54 to 1002 MHz
  • Tuning: CATV Channel Selectable (Ch. 2 to 158)

    Output

  • Channels Bandwidth: 24 MHz (4x Adjacent 6 MHz)
  • RF Level: +40 dBmV (±1 dB increment)
  • RF Level Adjustment Range: +35 to +42 dBmV (±1 dB increment)
  • Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
  • Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
  • Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
  • Phase Noise: -98 dBc (@ 10 kHz)
  • Spurious: -60 dBc
  • Broadband Noise :-70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
  • Impedance: 75 Ω
  • Spectral Inversion: Auto Recognition
  • Carrier Suppression: 45 dB
  • Return Loss: 14 dB typical
  • Signal to Noise Ratio: 40 dB typical
  • MER: 39 dB typical
  • I/Q Phase Error: Less than 1 degree
  • I/Q Amplitude Imbalance: Less than 1%
  • IP
    Connector 1x RJ45 (Rear Panel)
    Standard 1000Base-T Ethernet (GigE)
    UDP/RTP Supported (User-Selectable)
    Address Assignment IPv4 addresses & port numbers (User-Selectable)
  • ASI
    Connector 1x BNC Female
    Standard DVB-ASI; EN 50083-9

    Alarms & Monitoring

  • Local Monitoring: 1x Power LED, 1x Status LED
  • Local Control: 1x IP Reset Button
  • Remote Device Monitoring/Control: 1x RJ45 (10/100Base-T), GUI-Based Menu via Web Browser

    General

  • Dimensions (W x H x D): 8.69 x 1.97 x 12.70 in (220.7 x 50.0 x 322.6 mm)
  • Weight: 3.0 lbs (1.36 kg)
  • Power: 12 VDC External Power Supply
  • Power Dissipation: 20 W
  • Operating Temp: 32 to 122 °F (0 to 50 °C)
  • Storage Temp: -13 to 158 °F (-25 to 70 °C)
  • Operating/Storage Humidity: 0 to 95% RH @


• Item Includes:

  • 1x Blonder Tongue CLEARVIEW FLEX QAM Flexible Transmodulator – 32 IP/ASI In/Cherry Pick/IP/ASI/4 QAM Out
