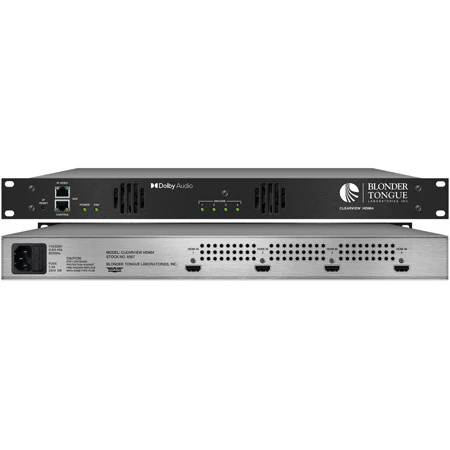

Blonder Tongue Clearview HDMI 4 Channel HD HDMI Encoder – IP Out

CLEARVIEW-HDMI4 – Overview

• Features:

  • Supports (4) HDMI 2.0b inputs for local ingest
  • Supports video encoding to MPEG-2, H.264, or H.265
  • Supports audio encoding to Dolby Digital AC3, AAC, MP3
  • Supports output data rates from 2 to 19 Mbps


• Specifications:

  • Input
  • Connectors: 4x HDMI version 2.0b
  • Control: 1x RJ45 for device contro
  • Video Resolution:
    480i (59.94, 60 FPS)
    480p (29.97, 30 FPS)
    720p (29.97, 30, 60 FPS)
    1080i (59.94, 60 FPS)
    1080p (30, 59.94, 60 FPS)
  • Audio Format: L-PCM (iEC-60958) at up to 192 kHz
  • Alarms & Monitoring
  • Front Panel Indicator:
    1x Power and Status LED (Bicolor)
    1x Fan Control Status LED (Bicolor)
    4x Encoder Status LED (Bicolor)
  • Output
  • Connector: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
  • Standard: 1000Base-T (GbE)
  • Protocols: UDP
  • Routing Protocol: Unicast, Multicast
  • Transport Stream: 4xSPTS
  • Control: 1x RJ45 for device control
  • Encoded Video Resolution:
    1080p (30/60 FPS)
    1080i (60 FPS)
    720p (30/60 FPS)
    480i (30/60 FPS)
  • Encoded Video: MPEG-2, H.264 (AVC); H.265 (HEVC)
  • Encoded Audio: Dolby AC3, AAC, MP3
  • Encoded Video Data Rate: 2 Mbps to 19 Mbps

    General Specifications

  • Dimensions: 19.0 x 8.5 x 1.75″ (486 x 216 x 45mm)
  • Unit Weight: 9.5 lbs. (4.31 kg)
  • Shipping Weight: 12 lbs. (5.44 kg)
  • Power: 110/230 VAC, 0.4/0.2 A, 60/50 Hz
  • Power Consumption: 45 W
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating/Storage: 0 to 95% RH @ 35 °C max,
  • Humidity: non-condensation


• Item Includes:

  • 1x Clearview HDMI4 Encoder
  • 1x Power Cord with IEC C13 line socket and 3-pin Type B NEMA 5 plug
