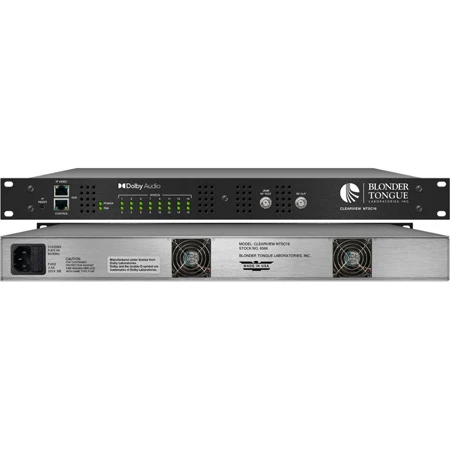

Blonder Tongue Clearview NTSC16 IP Input To 16 Program NTSC Analog Output & COM3000

Original price was: $325.00.Current price is: $96.99.

SKU: BWFYA 81526209 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

CLEARVIEW-NTSC16 – Overview

The Clearview NTSC16 is a cutting-edge 1RU, multi-channel digital to RF analog synthesizer, designed to convert up to 16 HD or SD programs and the primary audio channel to 16 NTSC modulated RF analog channels.

The Clearview NTSC16 can input MPEG-2, MPEG-4/H.264 (AVC), or H.265 (HEVC) formats from an IP transport stream. Each IP MPEG transport stream is decoded, NTSC synthesized, and modulated to an STD, IRC, or HFC RF analog channel. All 16 NTSC channels are agile within a 208 MHz frequency block. Users may place the 208 MHz block anywhere within the 54 to 1002 MHz frequency span.

Features:
- Creates a 16 NTSC RF analog modulated channel lineup
- Decodes MPEG-2, H.264, and H.265 video content
- Dolby Digital AC3, AAC, MPEG1-Layer2, MP3 audio decode
- Line 21 Closed Caption EIA 608 pass through
- Supports AFD or Manual aspect ratio config., 4:3 or 16:9
Specifications:
- Input
- Connectors: 16x SPTS from IP Video RJ45
- Control: 1x RJ45 for device control
- Video Resolution:
  480i (59.94, 60 FPS)
  480p (29.97, 30 FPS)
  720p (29.97, 30, 60 FPS)
  1080i (59.94, 60 FPS)
  1080p (30, 59.94, 60 FPS)
- Video Format: MPEG-2; H.264 (AVC); H.265 (HEVC)
- Encryption: Clear or “NTSC8” from COMM3000 (COM51_ST04.01.83 ++)
- Closed Captioning: EIA-608
- Routing Protocol: Unicast
- Input Formats: Dolby® AC3, AAC, MPEG1-Layer2, MP3
  Alarms & Monitoring
- Front Panel Indicators:
  1x Power and Status LED (Bicolor)
  1x Fan Control Status LED (Bicolor)
  16x Decoder Status LED (Bicolor)
- Local Control: 1x IP Reset Button
- Monitor Output: 1x RF Test (-20dB) Connector
  Output
- Connector: 1x “F” Female
- Output Frequency Range: 54 to 1002 MHz
- No. of Output Channels: 16 channels in a 208 MHz span
- Channel Plans: Standard, IRC, HRC
- Output Power: +48 dBmV per channel, ± 1 dB
- Broadband Flatness: +/- 1 dB
- Level Adjustment Range: 15 dB (±0.5 dB increment)
- Impedance: 75 Ω
- Return Loss: >14 dB
- Test Level: -20 dB (±2 dB of Main RF Output)
- Test Return Loss: >12 dB
- Spurious: >-60 dB
- Phase Noise: -110 dBc @ 10 kHz offset
- Frequency Accuracy: +/-3 ppm
- Freq. Response (in channel): +/-0.5 dB
- Signal to Noise Ratio (SNR): 65 dB @ +48 dBmV output
- Broadband Noise Floor: 65 dB, 4 MHz BW, +48 dBmV output
- Adjacent Chan. Interference: >-60 dB
- Closed Captioning: EIA-608 (Line 21)
  Audio
- Type: Monaural
- Signal to Noise Ratio (SNR): 65 dB
- Frequency Response: ± 0.5 dB, 50 Hz to 15 kHz
- Lag Time: = 45 ms
- Lead Time: = 15 ms
Item Includes:
- 1x Blonder Tongue Clearview NTSC16 IP Input to 16 Program NTSC Analog Output & COM3000
