Blonder Tongue DFCS-24 Rack Mounted 24-Way RF Splitter

Original price was: $161.00.Current price is: $95.99.

SKU: BWFYA 83526350 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

DFCS-24 – Overview

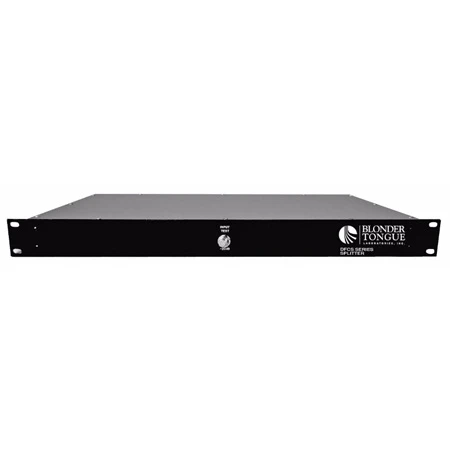

The Blonder Tongue DFCS 24 is a 5-1000 MHz passive rack mounted splitter with 24 broadband output ports.

The DFCS 24 features high isolation between ports and low insertion loss. A -20 dB test port on the front panel permits testing without removing the unit from service. Two or more units may be used to provide the required number of output ports based upon system requirements. The DFCS 24 is a compact, 1 3/4 inch high unit designed for mounting in a standard 19 inch EIA rack.

Features:
- High Isolation Between Ports
- Input Test Port Permits Testing Without Service Interuptions
Specifications:
- Frequency Response 5-1000 MHz
- Insertion Loss @ 5 – 40 MHz17.2 dB
- @ 40 – 450 MHz17.5 dB
- @ 450 – 750 MHz19.0 dB
- @ 750 – 1000 MHz 20.0 dB
- Isolation
- @ 5 – 40 MHz 30 dB
- @ 40 – 450 MHz 32 dB
- @ 450 – 750 MHz 30 dB
- @ 750 – 1000 MHz 28 dB
- Test Point Loss 20 dB
- Input Return Loss
- @ 5 – 750 MHz 20 dB
- @ 750 – 1000 MHz 18 dB
- Output Return Loss
- @ 5 – 450 MHz 20 dB
- @ 450 – 1000 MHz18 dB
- Impedance 75 ohm
- Dimensions 19 inW x 1 3/4″ H x 8″D
- Shipping Weight 7 lbs.
- Connections
- Input 24/ 32 F Type Female
- Output 1 F Type Female
- Input Test (Front Panel) 1 “F” Type Female
