Blonder Tongue HDE 8C QAM IP DIN High Definition Encoder – 8 Programs 8xDIN Inputs 256 QAM Output – 110-230 VAC 50/60Hz

Original price was: $323.00.Current price is: $95.99.

SKU: BWFYA 46087736 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

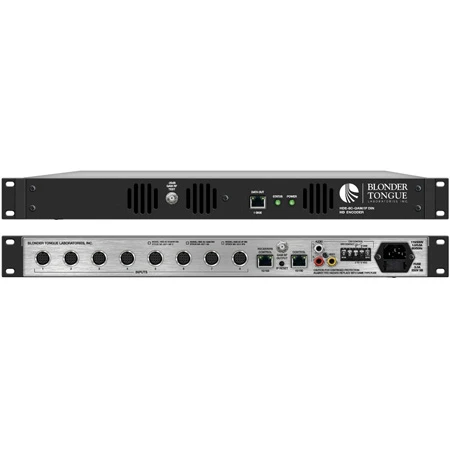

HDE 8C QAM IP DIN – Overview

The Blonder Tongue HDE-8C-QAM DIN encoder digitizes and MPEG-2 encodes each input into a high-definition stream. The eight (8) program streams are multiplexed and then modulated onto four adjacent QAM channels in the 54-1002 MHz range (CATV 2-158). The HDE-8C-QAM/IP DIN (OPT 2) encoder includes an IP output to provide 8xSPTS. The unit ships with a supply of eight (8) H258C DIN Cables to for eight (8) H25 receiver connections. The H258C DIN to RCA Cable can be ordered separately for Non-H25 receiver sources.

Features:
- Accepts 8 HD programs from DIN inputs
- Digitizes, MPEG-2 encodes, and modulates up to 8 inputs into 4xQAM output channels (2 Prog. per QAM Ch.)
- Configurable to ITU-T J.83 Annex A and B digital QAM formats
- Provides a front-panel -20 dB RF test point
- Provides 8xSPTS outputs on QAM/IP model
- Supports user-defined PSIP configuration
- Supports custom video and transport stream bit rate settings
- Supports Real-time Dolby° Digital audio encoding
- Supports Closed Captioning EIA-608 for each of the 8 encoded programs
- Equipped w/ EAS interface (Analog Video + L/R Audio) and triggering, compatible with all EAS receivers
- Provides comprehensive GUI-based monitoring and control via standard Web browsers
Specifications:
- Connector: 1x “F” Female (rear panel; up to 4x RF QAM ch. combined)
- Modulation: QAM 16, 32, 64, 128, and 256
- Standards: ITU-T J.83; Annex A and B
- DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
- Frequency Range: 54 to 1002 MHz
- Tuning: CATV Channel Selectable (CH. 2 to 158)
- Channel Bandwidth: 24 MHz (4x Adjacent 6 MHz)
- RF Level: +40 dBmV ± 1 dB (4 channels combined)
- RF Level Adjustment Range: +35 to +42 dBmV, 1 dB increments
- Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
- Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
- Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
- Phase Noise: -98 dBc (@ 10 kHz)
- Spurious: -60 dBc
- Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
- Impedance: 75 Ω
- Spectral Inversion: Auto Recognition
- Carrier Suppression: 45 dB
- Return Loss: 14 dB typical
- Signal-to-Noise Ratio (SNR): MER: 40 dB typical
- I/Q Phase Error: Less than 1 degree
- I/Q Amplitude Imbalance: Less than 1%
- Dimensions (W x D x H): 19.0 x 16.0 x 1.75 inches (483 x 406 x 45 mm)
- Power: 110 – 230 VAC, 50/60 Hz (Fuse: 4.0A, 250 VDC, Slo Blo)
- Power Dissipation: ~60 W
- Weight: ~7.2 lbs (3.27 kg)
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
- Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing
