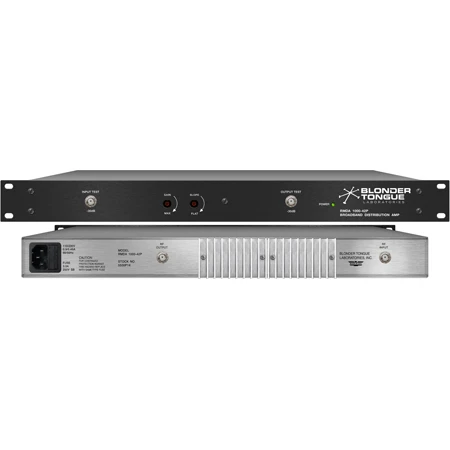

Blonder Tongue RMDA 1000-42P 1RU Rack Mounted RF Distribution Amplifier – 42 DB / 54-1000 MHz

Original price was: $386.00.Current price is: $99.99.

SKU: BWFYA 92212792 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

RMDA 1000-42P – Overview

The Blonder Tongue RMDA 1000-42P is a completely self-contained broadband distribution amplifier, designed specifically for signal distribution systems requiring the low distortion characteristics only available using hybrid CATV integrated circuits. With a forward bandwidth of 54 to 1000 MHz and a gain of 42 dB, the RMDA 1000-42P is useful in either systems that use a “cable drop” as a signal source or as the launch amplifier in a headend.

The RMDA 1000-42P features power doubling hybrid amplifier technology for high RF output levels and low distortion. The amplifier provides flat operating gain which can be reduced with a variable attenuator. Gain and Slope controls are located on the front panel for fast set-up and adjustment. The unit is housed in a 1RU aluminum chassis, providing exceptional heat dissipation and allowing operations at high ambient temperatures with no degradation of performance or reliability. Two -30 dB test points at the input and output are provided to permit testing without interruption of service.

Features:
- Forward Path Bandwidth of 54 to 1000 MHz, Gain of 42 dB
- Hybrid IC Circuitry for High Output with Low Distortion
- Power-Doubling Hybrid Amplifier Technology
- Front Panel Gain and Slope Controls for Easy Adjustment
- Exceptional Temperature Stability through Large Heat Sink Design
Specifications:
- Connectors
- Input: 1x “F” Female (Rear Panel)
- Output: 1x “F” Female (Rear Panel)
- Test (In/Out): 2x “F” Female (Front Panel, 1x Input, 1x Output)
  RF Forward Path
- Frequency Range: 54-1002 MHz
- Gain: 42 dB
- Flatness: ±0.75 dB
- Gain Control Range: 10 dB
- Slope Control Range: 8 dB
- Input Return Loss: 16 dB
- Output Return Loss: 16 dB
- Noise Figure: 8.5 dB
- No. of Channels Loading: 152
- Output Level: 42 dBmV
- Composite Triple Beat (CTB): -60 dB
- Composite Second Order (CSO): -58 dB
- Cross Modulation (XMOD): -58 dB
- Hum Modulation: -70 dB
- Impedance (All Ports): 75 O
- Test Point Level: -30, ±2 dB
  General
- Dimensions (W x H x D): 19.0 x 1.75 x 6.25 in (483 x 44 x 159 mm)
- Weight: 5.75 lbs (2.61 kg)
- Power Requirements: 110/230VAC, 0.9/0.45A, 60/50 Hz
- Operating Temp.: -4 to 140 °F (-20 to 60 °C)
- Number of Hybrids: 2
- Hybrid Technology: Power Doubling
  Monitor And Control
- Local Monitoring: 1x Power LED (Green, Front Panel)
- Local Control: 1x Slope Control (Front Panel), 1x Gain Control (Front Panel)
Item Includes:
- 1x Blonder Tongue RMDA 1000-42P 1RU Rack Mounted RF Distribution Amplifier – 42 dB / 54-1000 MHz
