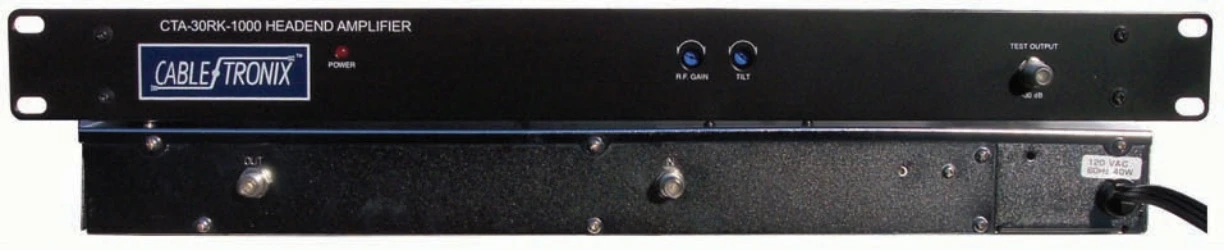

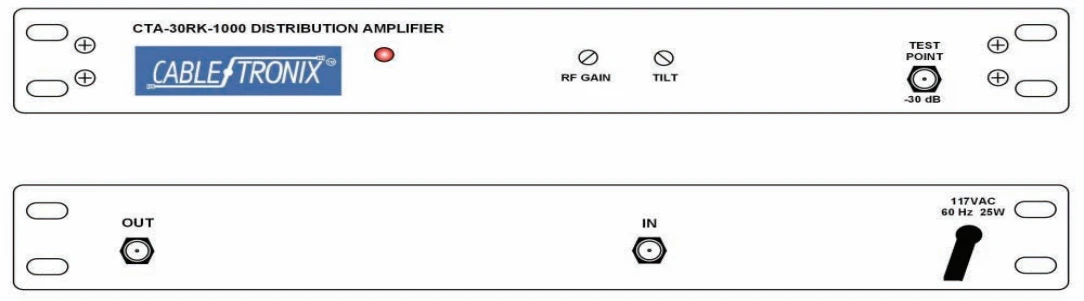

CTA-30RK-1000 – Overview
The CTA-30RK-1000 is a professional quality 19″ rack mountable broadband launch amplifier designed to produce Clean signals for a commercial grade private cable network. Employing a pushpull design, the CTA-30RK-1000 produces High output levels with extremely low distortion and harmonic content. As a broadband amplifier with a frequency range of 54-1000 MHz, The CTA-30RK1000 supports up to 158 channels.
Application
Designed for commercial grade headend systems, the CTA-30RK-1000 when Combined with a Cabletronix CTHC-12G, CTHC-24G, or other 3rd party combiners, serves as a launch amplifier to distribute Signals to a private cable network’s RF plant.
-
Features:
- Broadband coverage from 54 – 1,000 MHz
- Supports up to 158 channels
- 30 dB gain
- Adjustable gain and slope controls
- Input and output test ports
- Double shielded RFI enclosure
- Competitive performance specs
-
Specifications:
- RF Bandwidth: 54 – 1000 MHz
- Gain: 30 dB
- Gain Adjustable Range: 18 dB
- Slope: 12 dB
- Flatness: ±1.5 dB per channel, any 100 MHz band
- Maximum Output: (levels vary with number of channels)
7 channels, 44 dBmV Max. Input Level, 66 dBmV Max. Output Level
12 channels, 41 dBmV Max. Input Level, 63 dBmV Max. Output Level
36 channels, 32 dBmV Max. Input Level, 54 dBmV Max. Output Level
54 channels, 23 dBmV Max. Input Level, 45 dBmV Max. Output Level - Noise Figure: 7.5 dB
- Second Order Beats: -60 dB (129 channels @ 13 dBmV input level)
- Composite Triple Beat: -58 dB (129 channels @ 13 dBmV input level)
- Cross Modulation: -54 dB (129 channels @ 13 dBmV input level)
- Return Loss In: 16 dB to 750 MHz (Typical)
- Return Loss Out: 16 dB 751-1,000 MHz (Typical)
- Test Points: -20 dB
General
- Power Input: 117 VAC, 60 Hz, 25W
- Dimensions (WxHxD): 19 x 1.75 x 3″
- Weight: 4Lbs
- Operating Temperature Range: 32° to 122°F
-
Warranty:
- 1 year warranty
