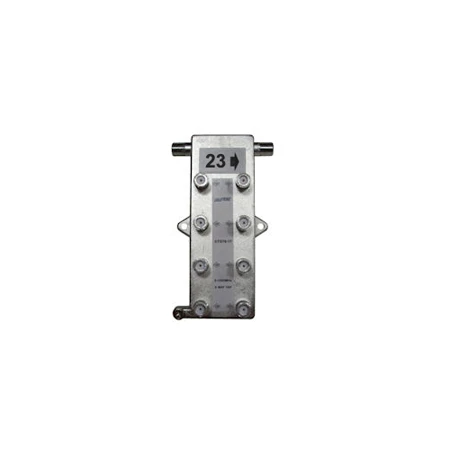

Cabletronix CTGT4-16 23dB Coaxial Tap With Eight Ports

Original price was: $13.99.Current price is: $9.79.

SKU: BWFYA 65592589 Categories: Digital CATV & RF Distribution, RF Splitters

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

CTGT8-23 – Overview

8 Port coaxial cable tap, 5 MHz to 1 GHz, 23 dB tap loss, low loss through port (17 dB shown)

Features:
- Solder back for excellent shielding
- 5-1,000 MHz Frequency range
- Integrated grounding screw
- Wall mounting screws included
- High Isolation
Specifications:
- Insertion Loss:
- 5-50 MHz: 0.8 dB
- 50-450 MHz: 1.0 dB
- 450-750 MHz: 1.2 dB
- 750-1000 MHz: 1.4 dB
  Return Loss (In/Out):
- 5-10 MHz: 18 dB
- 10-50 MHz: 20 dB
- 50-450 MHz: 20 dB
- 450-750 MHz: 18 dB
- 750-1000 MHz: 16 dB
  Return Loss (Tap):
- 5-50 MHz: 18 dB
- 50-750 MHz: 20 dB
- 750-1000 MHz: 18 dB
  Isolation (Tap/Tap):
- 5-50 MHz: 22 dB
- 50-450 MHz: 26 dB
- 450-750 MHz: 25 dB
- 750-1000 MHz: 22 dB
  Isolation (Out/Tap):
- 5-10 MHz: 36 dB
- 10-50 MHz: 36 dB
- 50-450 MHz: 33 dB
- 450-750 MHz: 30 dB
- 750-1000 MHz: 26 dB
  Tap Tolerance (+/-):
- 5-450 MHz: 1.0 dB
- 450-750 MHz: 1.5 dB
- 750-1000 MHz: 2.0 dB
