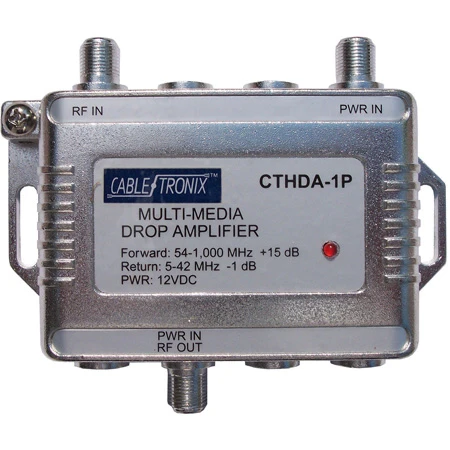

Cabletronix CTHDA-1P Multimedia Drop Amplifier

Original price was: $35.00.Current price is: $24.50.

SKU: BWFYA 95721981 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

CTHDA-1P – Overview

The Cabletronix CTHDA-1P is a wall mounted 1GHz multi-media drop amplifier for use in CATV systems that require two way multi-media networking. These are low noise amplifiers with high isolation between ports, 6KV surge protection on all ports, electrostatic discharge protection, and zinc die cast housing to prevent RFI. The CTHDA amplifiers can be remotely powered over coax, line powered through an RF port, or externally powered through a “POWER-IN” port.

Features:
- For use in CATV systems that require two way multimedia networking
- Low noise
- High isolation between ports
- ESD Protection and zinc die cast housing prevent RFI
- 6KV Surge protection on all ports
- Perfect for digital cable applications
- Remotely powered over coax
- Line powered through RF port or externally powered through power in port
- CT-BDA24 Model has an adjustable gain control & a switcheable FM trap
Specifications:
- Number of input ports: 1
- Number of output ports: 2
- Forward path: 54-1,000MHz
- Reverse path: 5-42Mhz
- Foward gain: 13.5dB
- Reverse gain(loss): -1.6dB
- Noise figure: 3dB typical, 4dB max
- Return loss (in/out): 18dB typical
- Power supply voltage: 12-16V, 200mA
- Surge protection (all ports): 6KV
- connections: F type female
- Impedance: 75 Ohms
- Operating temperature: -40° C to +60°C
