Cabletronix DT-IPTV-QAM-ASI-2H Dual Input Digital Encoder-Modulator With ASI

Cabletronix DT-IPTV-QAM-ASI-2H Dual Input Digital Encoder-Modulator With ASI - Image 2

Cabletronix DT-IPTV-QAM-ASI-2H Dual Input Digital Encoder-Modulator With ASI

Original price was: $392.00.Current price is: $95.99.

SKU: BWFYA 27514101 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

DT-IPTV-QAM-ASI-2H – Overview

The Cabletronix DT-IPTV-QAM-ASI-2H encoder/modulator simultaneously provides a QAM, ASI, and IP output stream making it ideal for any commercial RF or IP network. The high quality HD design allows for watching action packed movies and sports channels on any HDTV. The space saving design delivers 2 High Quality HD QAM/IP/ASI channels in a single1RU space.

Features:

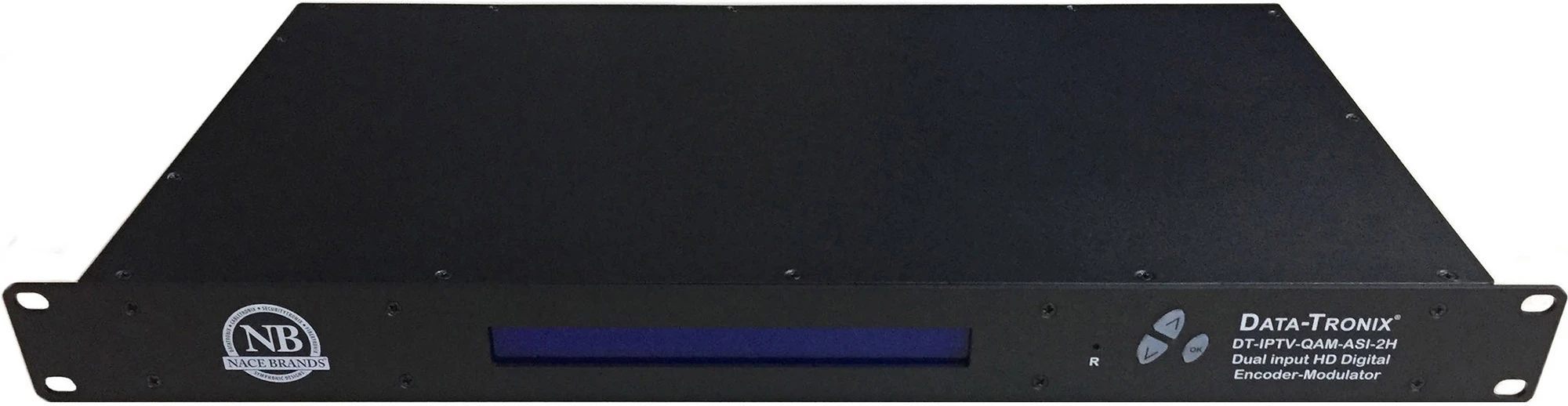

- Front panel LCD Display for easy installation
- High Resolution 1080i/1080p
- VCN Mode for Virtual Channel Mapping
- Composite, Component, and HDMI (unencrypted) inputs
- MPEG2 or MPEG4 (AVC) Video Output
- Selectable Constellation
- Closed Captioning Support
- +40dBmV Output
- Newly Added EAS Functionality
- Rack mountable 1RU height
Specifications:
- Video Inputs
- HDMI: 1.4v
- Component: YPrPb (RCA)
- Composite: CVBS (RCA)
  Audio Inputs
- Audio Input: L/R (RCA)
  Video Encoder
- Mode: MPEG-2, MPEG-4 (AVC) Selectable, AVC only (4/1 Models)
- Video Resolutions: 1080p(AVC Only), 1080i, 720p, 576p, 576i, 480p, 480i
- Audio Encoder
- Audio Compression: MPEG-1 Layer II, AAC, Supports Dlby® Digital AC-3, AC-3 Pass through.
  RF QAM Support
- Frequency: 54 – 864MHz (CH 2 – CH 135)
- RF-Channel Output: 1/1 (Single Input), 2/1 (Dual Input), 4/2 (Quad Input), 4/1 (Quad Input AVC Only)
- QAM: J.83 Annex B
- Constellation: QAM256 (Dual/Quad)
- Bandwith: 6MHz
- RF Output: “F” – Female 75
- Closed Captioning Control: Per Output Control (Use of CVBS Input)
  EAS Support (Optional)
- Connection: Dry Contact
- Video Input: CVBS (RCA)
- Audio Input: L/R (RCA)
  ASI Output Support (Optional)
- Connection: BNC 75
- Output: TS Multiplexed
  IP Output (Optional)
- Type: RJ-45, GbE
- Stream: Type: Unicast, Multicast
- TS Format: SPTS (Single Input Only), MPTS
  Management/Control
- Front Panel LCD Controller: Full Support (Up/Down/OK Control Buttons)
  General
- Rack Mountable (1RU): 19″ x 9.45″ x 1.75″ (482.7mm x 240mm x 44.4mm), 19″ EIA Standard
- Fan Cooled: Internal
- LCD Front Panel: Dual Line, Scrolling Display
Item Includes:
- 1x DT-IPTV-QAM-ASI-2H HD Digital Encoder-Modulator
- 1x Power Cable
