Contemporary Research QIP-DVX IPTV Decoder/Controller W/ IR & RS-232

Contemporary Research QIP-DVX IPTV Decoder/Controller W/ IR & RS-232 - Image 2

Contemporary Research QIP-DVX IPTV Decoder/Controller W/ IR & RS-232

Original price was: $383.00.Current price is: $95.99.

SKU: BWFYA 90647332 Categories: Digital CATV & RF Distribution, IPTV Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

5116-001 – Overview

Contemporary Research’s latest IPTV decoder with incorporated display control, the QIP-DVX IPTV Decoder/Controller offers display control functionality through RS-232 or IR. The unit is part of a family of products from Contemporary Research that can be used to form an end-to-end IPTV distribution system with control.

The decoder is compatible with unicast or multicast UDP and RTP IPTV streams and will accept MPEG2 or H.264 single program or multiple program transport streams. A channel list of programs is uploaded from a PC running CR Toolbox software. Channel selection, volume, and power may be controlled from the front panel buttons, handheld IR remote, or external control system.

The QIP-DVX IPTV Decoder/Controller can receive commands from an ICE-HE-DXL Display Control Center or Display Express software for channel selection, volume control, power, and display source selection. Power and source selection will be translated to the protocol required for the connected display and transmitted out the RS-232 or IR port.

Features:
- Video
- HDMI selectable video output resolutions: 480i, 480p, 720p, 1080i, 1080p, and 4K or auto
  Audio
- HDMI embedded AC3, PCM-fixed, or PCM-variable
- SPDIF optical AC3, PCM-fixed, or PCM-variable
- Analog stereo
  Setup and Control
- Receives commands from Display Express software or the ICE-HE-DXL display controller over Ethernet
  for channel selection, volume, and display control
- Channel list loaded or updatable from CR Toolbox
- Channel selection by direct channel entry or channel up/down
- Control via front panel, optional IR remote, web GUI, Display Express software or serial commands
  from ICE-HE- DXL
- RS-232 or IR for display control
- Setup via On-screen menu, web GUI, serial commands
- Firmware updateable over Ethernet from CR Toolbox
Specifications:
- Physical
- Enclosure: Aluminum with black powder coat paint
- Mounting: Hook-and-loop fasteners or screw attachment
- Power: PoE, 6W or 11 to 14 VDC at 0.5A max
  Decoding
- Accepts UDP and RTP Ethernet streams
- Decodes MPEG2 or H.264 IPTV streams with AC3, MP1/2 or AAC audio
- Supports single program or multiple program transport streams
- Supports multiple audio programs
- On board closed caption decoder supports EIA-608 and EIA-708 embedded closed captions

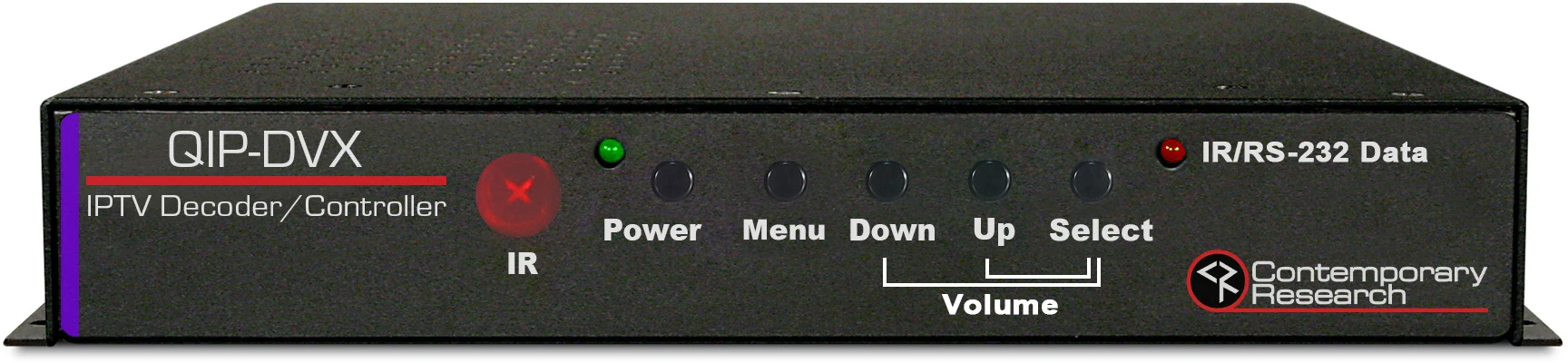

  Front Panel
- IR: IR Sensor
- Status: Red/Green status LED
- Control: Five button control

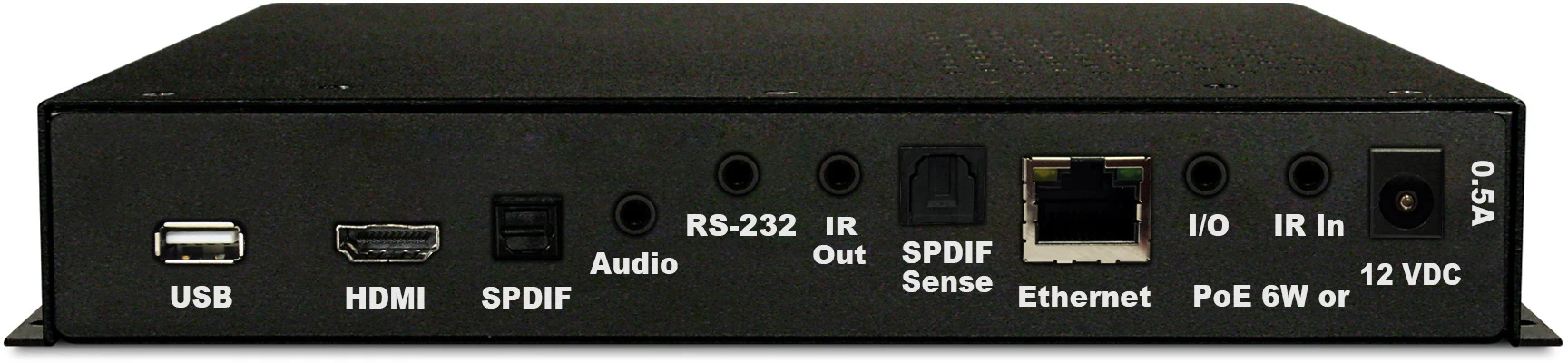

  Back Panel
- Service: USB-A port (internal use)
- HDMI: Type A, 4K/HD video and digital audio
- SPDIF: Optical digital audio output
- Audio: 3.5mm stereo jack
- RS-232: 3.5mm TRS jack for display control (T – Tx
  R – Rx S – GND)
- IR Out: 3.5mm TRS jack for display control (T – Signal R – N/C S – GND)
- Ethernet: RJ-45 connector, 100Mbps, PoE
- I/O: 3.5mm TRS jack (T – I/O1 R – I/O2 S – GND); Optional USB Power Sensor Cable
- IR In: 3.5 mm TRS jack for optional external IR receiver or wired IR (T – +5V R-Signal S-GND)
- 12VDC: Optional power input, 2.1mm coaxial jack (inside center conductor positive), 0.5A max
