Drake Digital DTD1000A Digital Tuner & Demodulator For Use W/ The MEQ1000B QAM Modulator

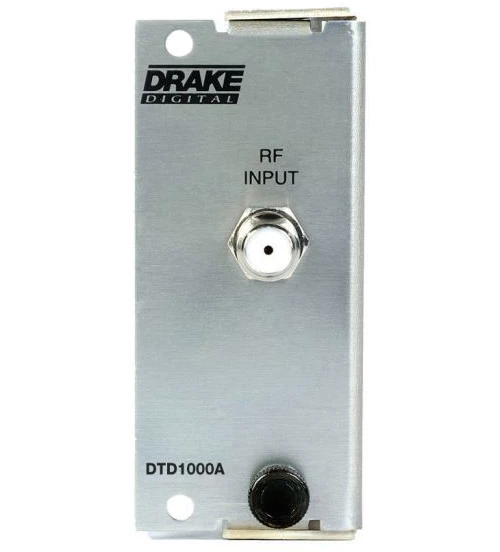

Drake Digital DTD1000A Digital Tuner & Demodulator For Use W/ The MEQ1000B QAM Modulator - Image 2

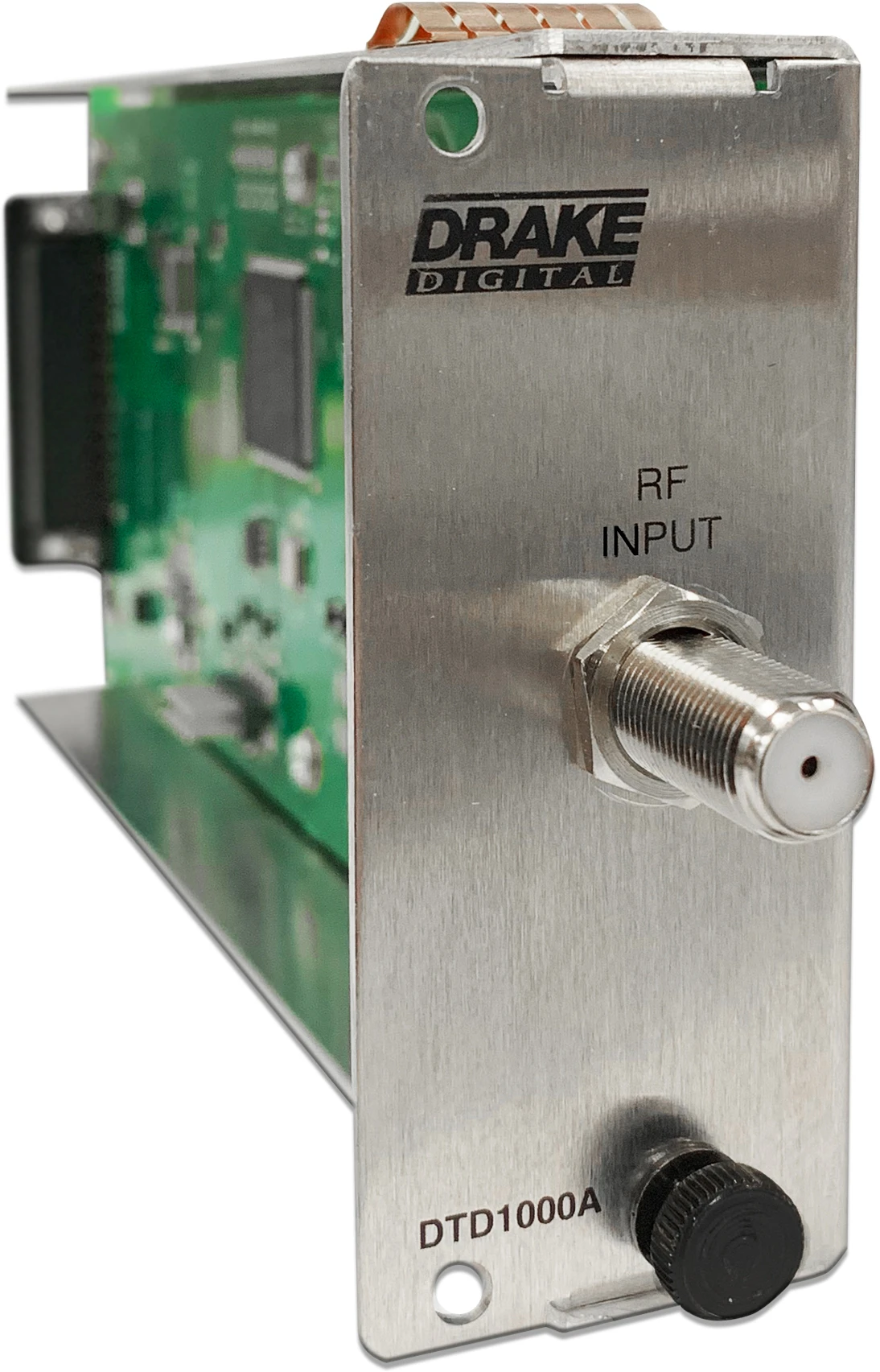

Drake Digital DTD1000A Digital Tuner & Demodulator For Use W/ The MEQ1000B QAM Modulator - Image 3

Drake Digital DTD1000A Digital Tuner & Demodulator For Use W/ The MEQ1000B QAM Modulator

Original price was: $352.00.Current price is: $99.99.

SKU: BWFYA 32588359 Categories: Digital CATV & RF Distribution, RF Modulators

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

DTD1000A – Overview

The Drake Digital DTD1000A is an MEQ1000B input module which tunes any 8VSB or QAM channel between 54 and 1002 MHz, making it ideal for digital channel processing applications where a single digital video signal is received, error-corrected, clocked (at a user determined fixed rate) and re-modulated on the same or another RF channel.

The DTD1000A may be used to convert one off-air ATSC 8VSB signal to a QAM output with rate adjustment or, when used in the processor mode with only one input, the MEQ1000B can process ATSC or CATV QAM MPEG-2 inputs.

Features:

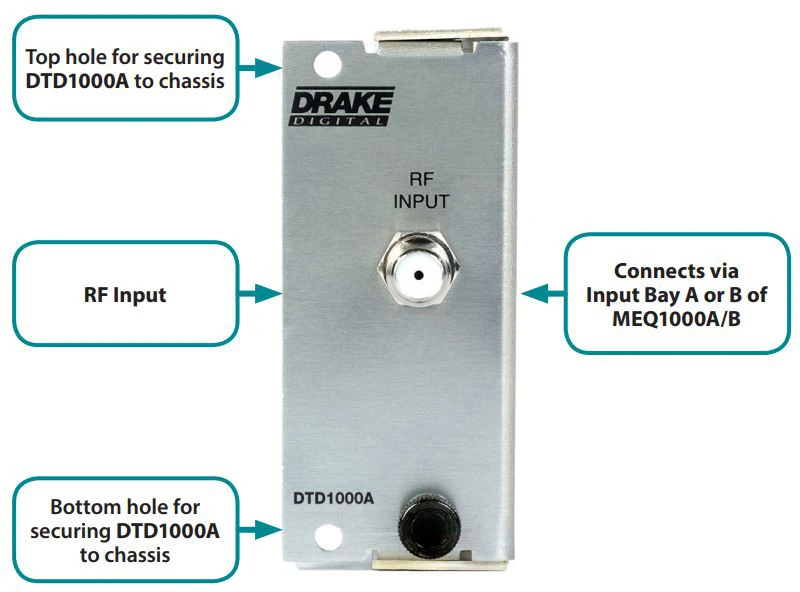

- Installs in either input bay A, Input bay B or both on a MEQ1000B.
- Tunes any 8VSB or QAM channel between 54 and 1002 MHz.
- Multiplex with other program streams from various MEQ1000 input modules.
- QAM and ASI output from the MEQ1000B.
- Custom MPEG program number or VCT (virtual channel tables) from MEQ1000B platform if desired.
Specifications:
- Input: 1 x Female “F” Connector
- Input Frequency Range: 54 – 1000 MHz
- Channel Plan: Standard CATV, HRC, IRC, or Broadcast
- Input Channel Bandwidth: 6 MHz
- Input RF Level Range: -33 to +35 dBmV (8VSB – ATSC) -22 to +35 dBmV (64 QAM) -17 to +35 dBmV
- (256 QAM)
- Input Impedance: 75 Ohms
- Input Return Loss: > 6 dB (Broadcast mode) > 12 dB (CATV mode)
- Image Rejection: 80 dB
- Adjacent Channel Rejection: 40 dB
- Noise Figure: 9 dB (Broadcast mode) 12 dB (CATV mode)
- Demodulation Modes: 8VSB – ATSC 64 QAM, 256 QAM (ITU – B) CATV mode
- Symbol Rates: 10.76 MS/s, 8VSB 5.057 MS/s, 64 QAM 5.3606 MS/s, 256QAM
- Temperature Rating: 0 to + 50 degree C, ambient
- Dimensions: 3 1/4″ x 1 1/2″ x 8″ deep
- Weight: 0.5 lbs
- Power Requirements: 90 to 132 VAC / 60 Hz, 35 W maximum (rating prescribed to the Drake MEQ1000B).
Item Includes:
- DTD1000A Input Module (QTY = 1)
- Mounting Screws (QTY = 2)
