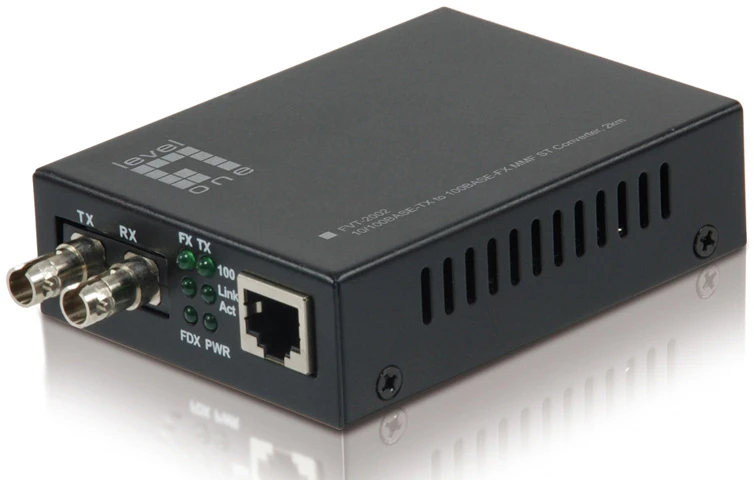

LevelOne FVT-2002 RJ45 To ST Fast Ethernet Media Converter - Multi-Mode Fiber - 2km

LevelOne FVT-2002 RJ45 To ST Fast Ethernet Media Converter - Multi-Mode Fiber - 2km - Image 2

LevelOne FVT-2002 RJ45 To ST Fast Ethernet Media Converter - Multi-Mode Fiber - 2km - Image 3

LevelOne FVT-2002 RJ45 To ST Fast Ethernet Media Converter – Multi-Mode Fiber – 2km

Original price was: $52.00.Current price is: $36.40.

SKU: BWFYA 61053470 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

FVT-2002 – Overview

The LevelOne FVT-2002 MMF ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2 km.

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.

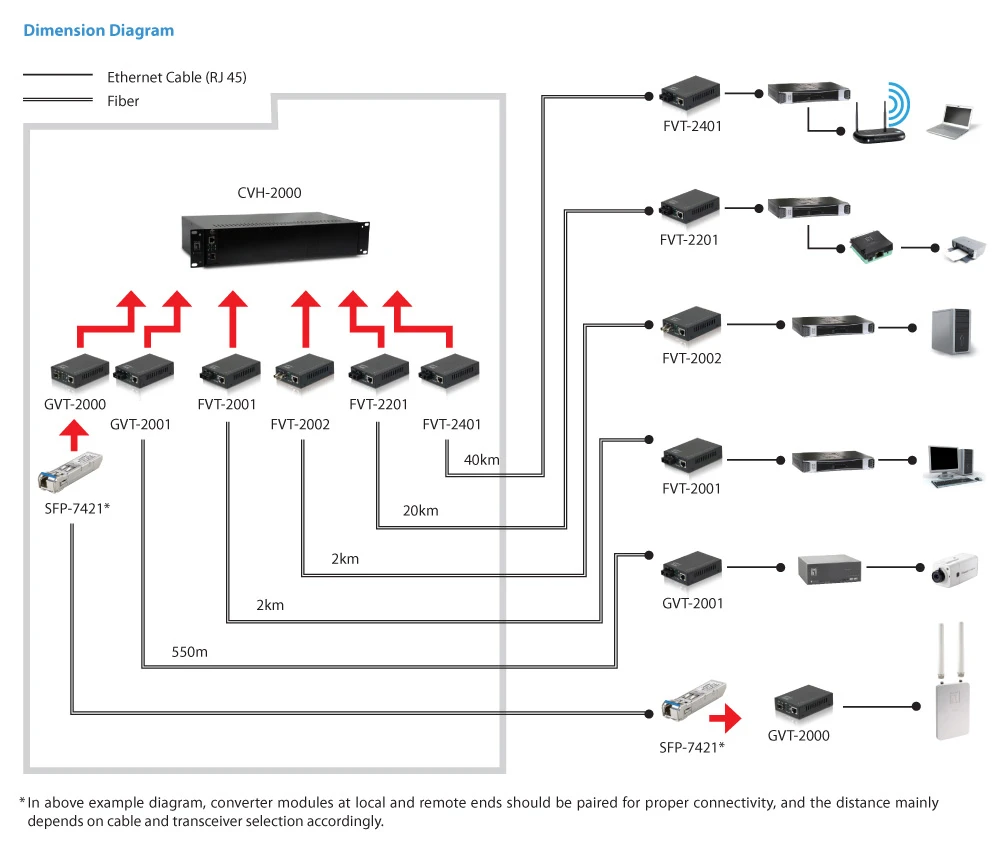

The FVT-2002 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

Features:
- Transfers data from 10/100Base-TX copper to fiber interfaces
- Multi-mode fiber with ST connector for transmission of up to 2km
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10°C to 55°C operating temperature range
Specifications:
- Standards & Protocols:
  IEEE 802.3 10-BASE-T, Ethernet
  IEEE 802.3u 100-BASE-TX, Fast Ethernet
  IEEE 802.3x Flow Control (full-duplex flow control)
- Port:
  1 x 100 Base-FX Multi-mode duplex ST
  Fiber cable: 50/125um, 62.5/125um
  1 x 10/100 Base-TX RJ-45 Port, auto MDI/MDI-X and Auto-Negotiation
- Indicator: PWR, TX (FDX, 100, Link/Act), FX (101, Link/Act)
- Wavelength (nm): 1310nm
- Transmission Method: Store and forward (Default)
- Power Input: DC 5V/1A
- Operating Temp: 14° to 131°F (-10 to 55°C)
- Storage Temp: -40° to 167°F (-40 to 75°C)
- Humidity: 5 to 90% (non-condensing)
- Mount: Desk, chassis mounted

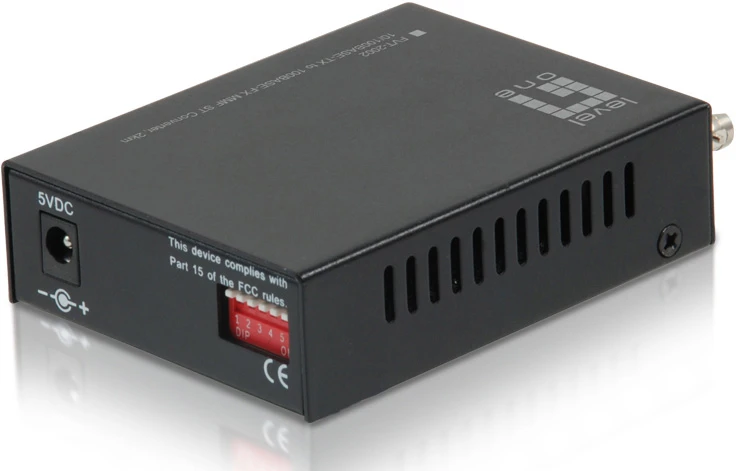

- DIP Switch 1: LFP function
- DIP Switch 2: Transmission Mode
- DIP Switch 3: Auto/Force the UTP port work mode
- DIP Switch 4: 10/100M for UTP port
- DIP Switch 5: Full/Half Duplex mode for UTP port
- DIP Switch 6: Normally close
- Operating Distance: 2KM
- Dimensions (WxDxH): 2.79 x 3.70 x 1.02″ (71 x 94 x 26mm)
- Weight: 0.92Lbs (420g)
- Approval and Compliance: EMI/EMS: FCC, CE, RoHS
Item Includes:
- x1 FVT-2002
- x1 Power Adapter
- x1 Quick Installation Guide
GTIN:

0846359031384
