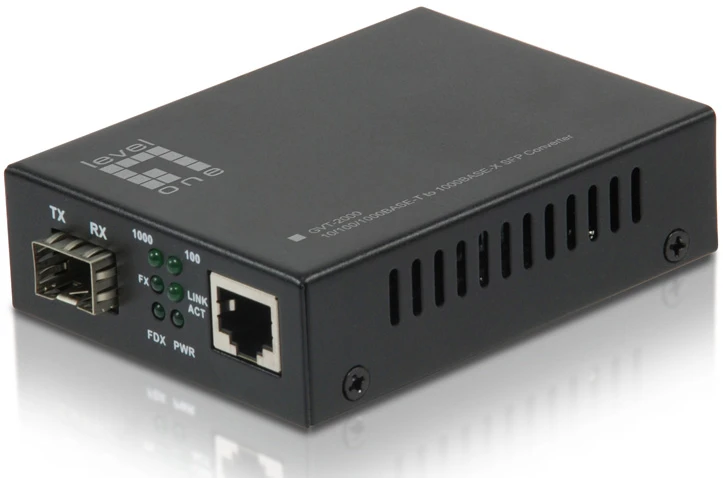

LevelOne GVT-2000 RJ45 To SFP Gigabit Media Converter

LevelOne GVT-2000 RJ45 To SFP Gigabit Media Converter - Image 2

LevelOne GVT-2000 RJ45 To SFP Gigabit Media Converter - Image 3

LevelOne GVT-2000 RJ45 To SFP Gigabit Media Converter

Original price was: $38.00.Current price is: $26.60.

SKU: BWFYA 42907466 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

GVT-2000 – Overview

The LevelOne GVT-2000 media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

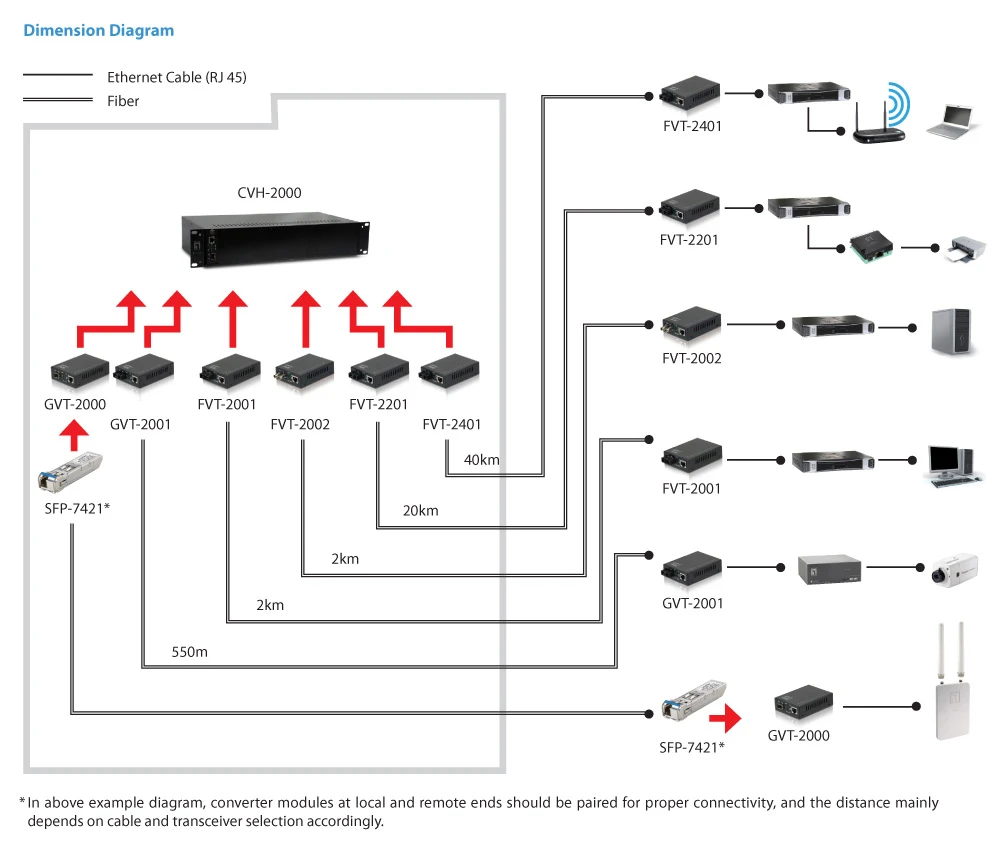

The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Features:
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver
- 9K jumbo frames to increase data transfer rates
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10°C to 55°C operating temperature range
Specifications:
- Standards & Protocols:
  IEEE 802.3 10-BASE-T, Ethernet
  IEEE 802.3u 100-BASE-TX, Fast Ethernet
  IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
  IEEE 802.3x Flow Control (full-duplex flow control)
  IEEE802.3z 1000Base-SX/LX,
- Port: Fiber SFP slot; RJ-45 Port CAT-5/5e Twisted Pair cable Auto MDI/MDI-X (Max to 100m) and Auto-Negotiation
- Indicator: PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act
- Wavelength (nm): depend on SFP module
- Transmission Method: Store and forward (Default)
- Power Input: DC 5V/2A
- Power Consumption: 1.2W
- Storage Temp: -40° to 167°F (-40° to 75 °C)
- Operating Temp: 14° to 131°F (-10° to 55 °C)
- Humidity: 5 to 90% (non-condensing)
- Mount: Desk, chassis mounted
- DIP Switch 1: LFP function
- DIP Switch: 2 and 3 performance 4 types work mode, 2 and 3 is OFF = Store and forward, 2 is OFF, 3 is ON = Cut through mode, 2 is ON, 3 is OFF = Smart pass through, 2 and 3 is ON = Pass through mode
- Operating Distance: Depend on SFP Module
- Dimensions (WxDxH): 2.79 x 3.70 x 1.02″ (71 x 94 x 26mm)
- Weight: 0.92Lbs (420g)
- MTBF: 50000hrs
- Approval and Compliance: EMI/EMS: CE, RoHS, FCC
Item Includes:
- x1 GVT-2000
- x1 Power Adapter
- x1 Quick Installation Guide
GTIN:

0846359031292
