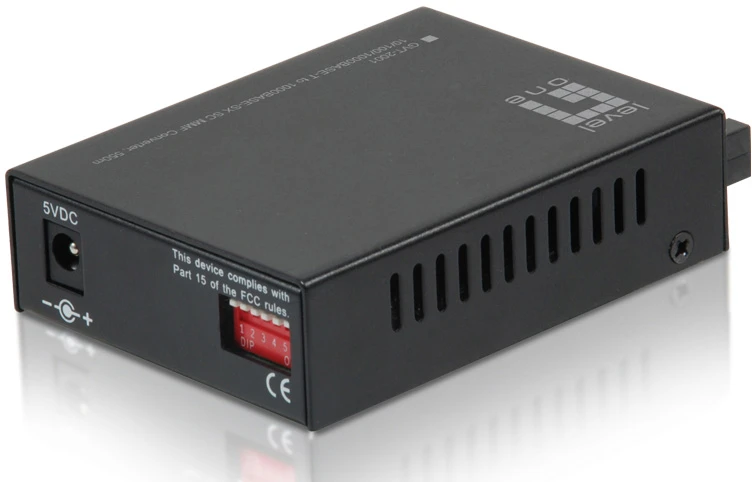

GVT-2001 – Overview
The LevelOne GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

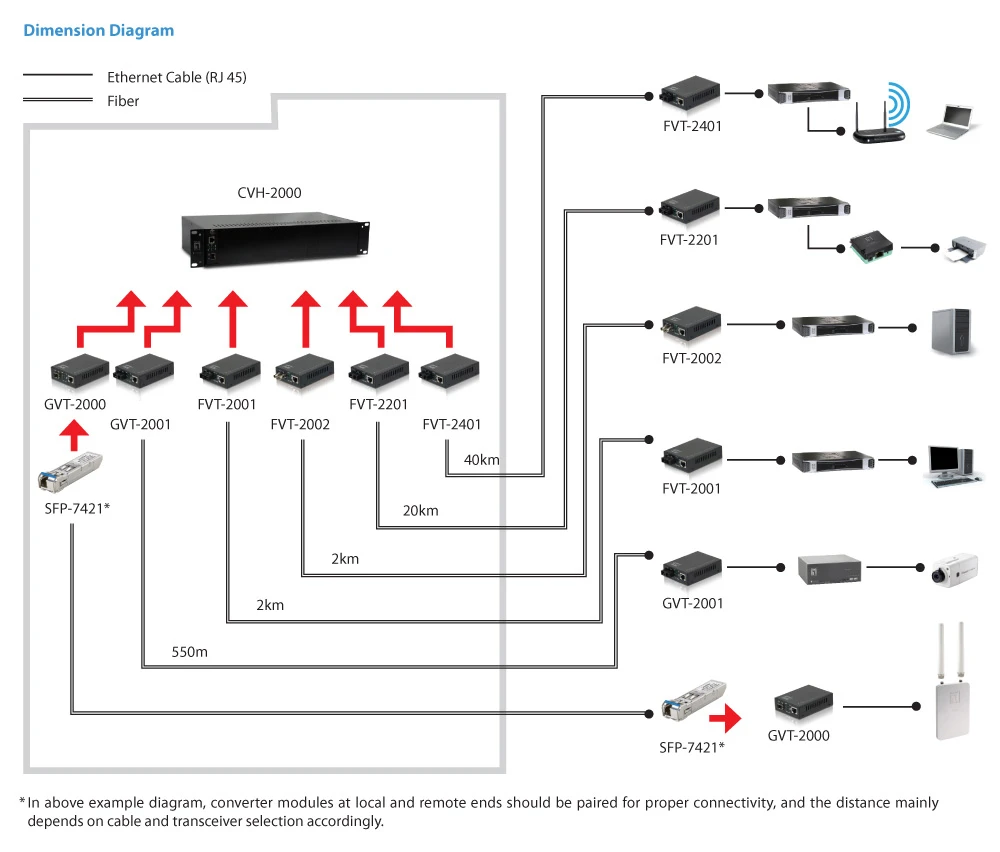

The GVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.
-
Features:
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- 1000Base-SX Multi-mode fiber for the link up to 550m
- 9K jumbo frames to increase data transfer rates
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10°C to 55°C operating temperature range
-
Specifications:
- Standards & Protocols
- IEEE 802.3 10-BASE-T, Ethernet
- IEEE 802.3u 100-BASE-TX, Fast Ethernet
- IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
- IEEE 802.3x Flow Control (full-duplex flow control)
- IEEE802.3z 1000Base-SX/LX,
Port
- Fiber Duplex SC (550m);RJ-45 Port CAT-5/5e Twisted Pair
- cable Auto MDI/MDI-X (Max to 100m) and Auto-Negotiation
- Indicator: PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act
- Wavelength (nm): 850nm
- Transmission Method: Store and forward (Default)
- Power Input: DC 5V/2A
- Operating Temperature (°C): Storage: -40 ~75 °C, Operating: -10 ~ 55 °C
- Operating Humidity (Non-condensing): 5 ~ 90 %
- Mount: Desk, chassis mounted
General
- DIP Switch 1: LFP function
- DIP Switch 2 and 3 performance 4 types work mode
- DIP Switch 2 and 3 is OFF = Store and forward
- DIP Switch 2 is OFF, 3 is ON = Cut through mode
- DIP Switch 2 is ON, 3 is OFF = Smart pass through
- DIP Switch 2 and 3 is ON = Pass through mode
Performance
- Operating Distance: 550 m
Physical Specifications
- Dimensions (W x D x H mm): 71 x 94 x 26 mm
- Weight (g): 420 g
Approval and Compliance
- EMI/EMS: CE, RoHS, FCC
-
Item Includes:
- x1 GVT-2001
- x1 Power Adapter
- x1 Quick Installation Guide
-
GTIN:
0846359031285
