LevelOne GVT-2003 RJ45 To ST Gigabit Ethernet Media Converter - Single-Mode Fiber / 1310nm / 20km - Black

LevelOne GVT-2003 RJ45 To ST Gigabit Ethernet Media Converter - Single-Mode Fiber / 1310nm / 20km - Black - Image 2

LevelOne GVT-2003 RJ45 To ST Gigabit Ethernet Media Converter - Single-Mode Fiber / 1310nm / 20km - Black - Image 3

LevelOne GVT-2003 RJ45 To ST Gigabit Ethernet Media Converter - Single-Mode Fiber / 1310nm / 20km - Black - Image 4

LevelOne GVT-2003 RJ45 To ST Gigabit Ethernet Media Converter – Single-Mode Fiber / 1310nm / 20km – Black

Original price was: $83.00.Current price is: $58.10.

SKU: BWFYA 64715320 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

GVT-2003 – Overview

Use as a standalone unit or as a slide-in module!

The LevelOne GVT-2003 Single-mode fiber ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 20km.

The GVT-2003 features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode. The GVT-2003 is able to operate in temperatures from -10° up to 55° Celsius.

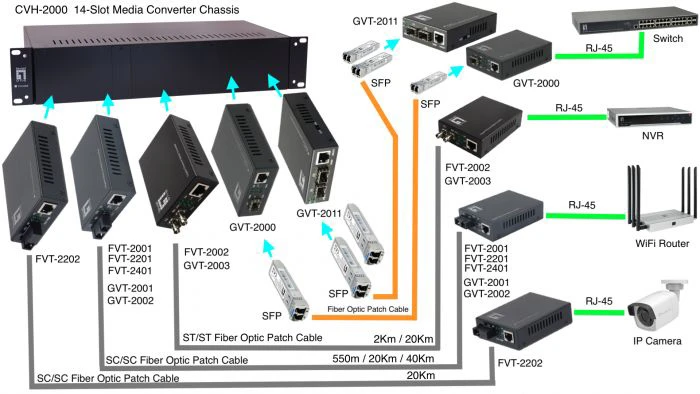

This converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19″ converter rack,which can accommodate up to 14 units for use in a central wiring closet (items sold separately).

Features:
- Single-mode fiber with ST connector for transmission of up to 20km
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- 9K jumbo frames to increase data transfer rates
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- -10°C to 55°C operating temperature range
Specifications:
- General
- Color: Black
- EAN: 4015867231234
- Model Number: GVT-2003
- Miscellaneous
- Fiber Optical Mode: Single-Mode
- Manageable: No
- Grade: Commercial
- Media Interface: RJ45 to SMF ST
- Data rate: Gigabit Ethernet
- Operating temperature: -10°C ~ 55°C
- Operating humidity: 5% RH ~ 90% RH
- Storage humidity: 5% RH ~ 90% RH
- Approval and Compliance: CE – UKCA – RoHS
- Storage temperature: -40°C ~ 70°C
- Physical Specifications
- Product weight (kg): 0.2
- Dimensions (W x D x H): 94 x 71 x 26 mm
- System specifications
- Indicators
- POWER (Power supply)
- FX LINK (Optical link action)
- TP LINK1000 (TP cable rate1000M)
- TP LINK100 (TP cable rate 100M)
- TP ACT (TP cable packet forwarding action)
- FDX (TP full duplex operation)
- Wavelength: (nm) 1310
- Standards:
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-TX Fast Ethernet
- IEEE802.3ab 1000Base-T
- IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
- Mount: Desk mount
- Power consumption: 5 W
Item Includes:
- 1x GVT-2003 Converter
- 1x Power Adapter
- 1x Quick Installation Guide
- 1x Declaration of Conformity
Warranty:
- 2 Years
