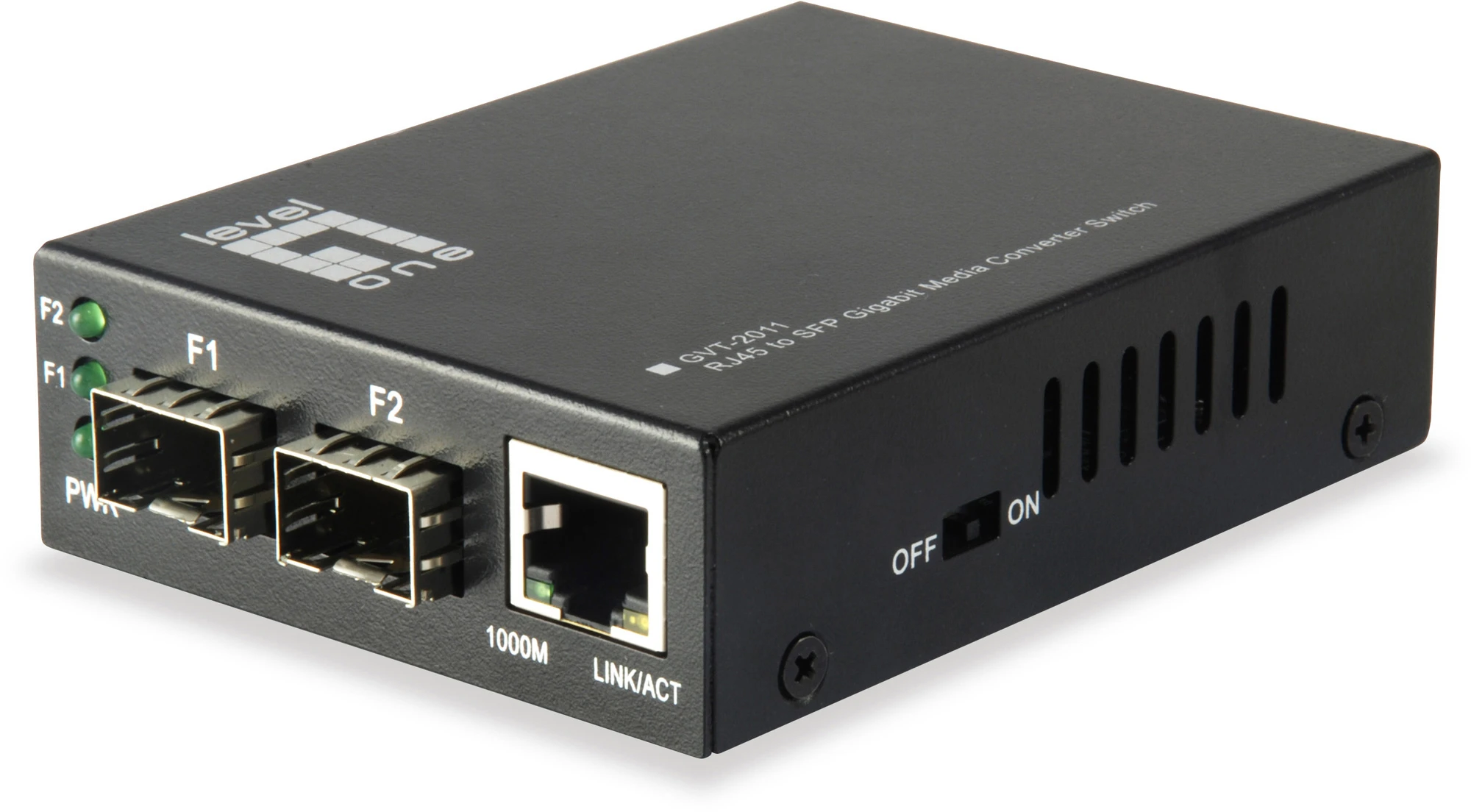

LevelOne GVT-2011 RJ45 To SFP Gigabit Media Converter Switch - 2 X SFP - 1 X RJ45

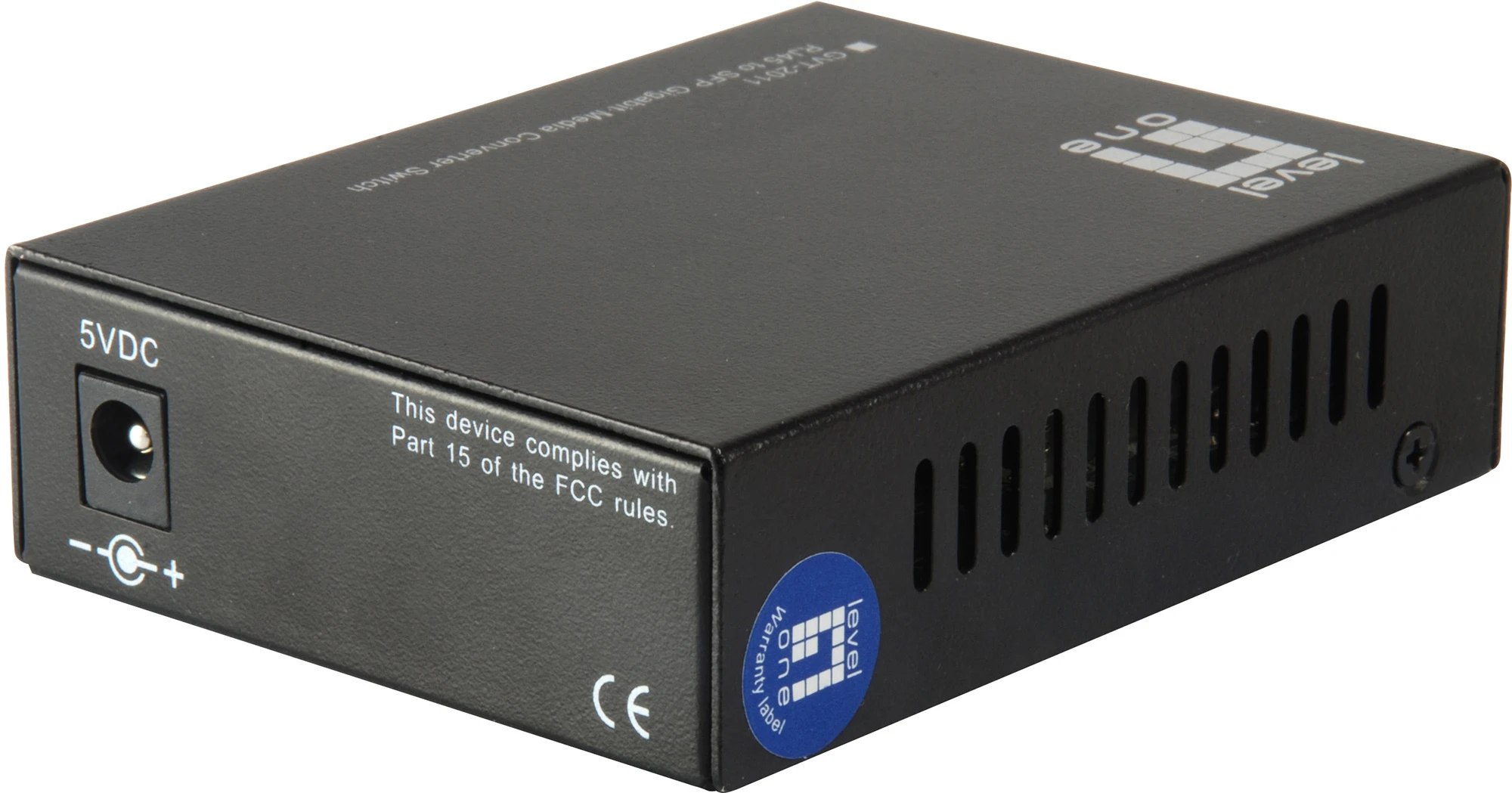

LevelOne GVT-2011 RJ45 To SFP Gigabit Media Converter Switch - 2 X SFP - 1 X RJ45 - Image 2

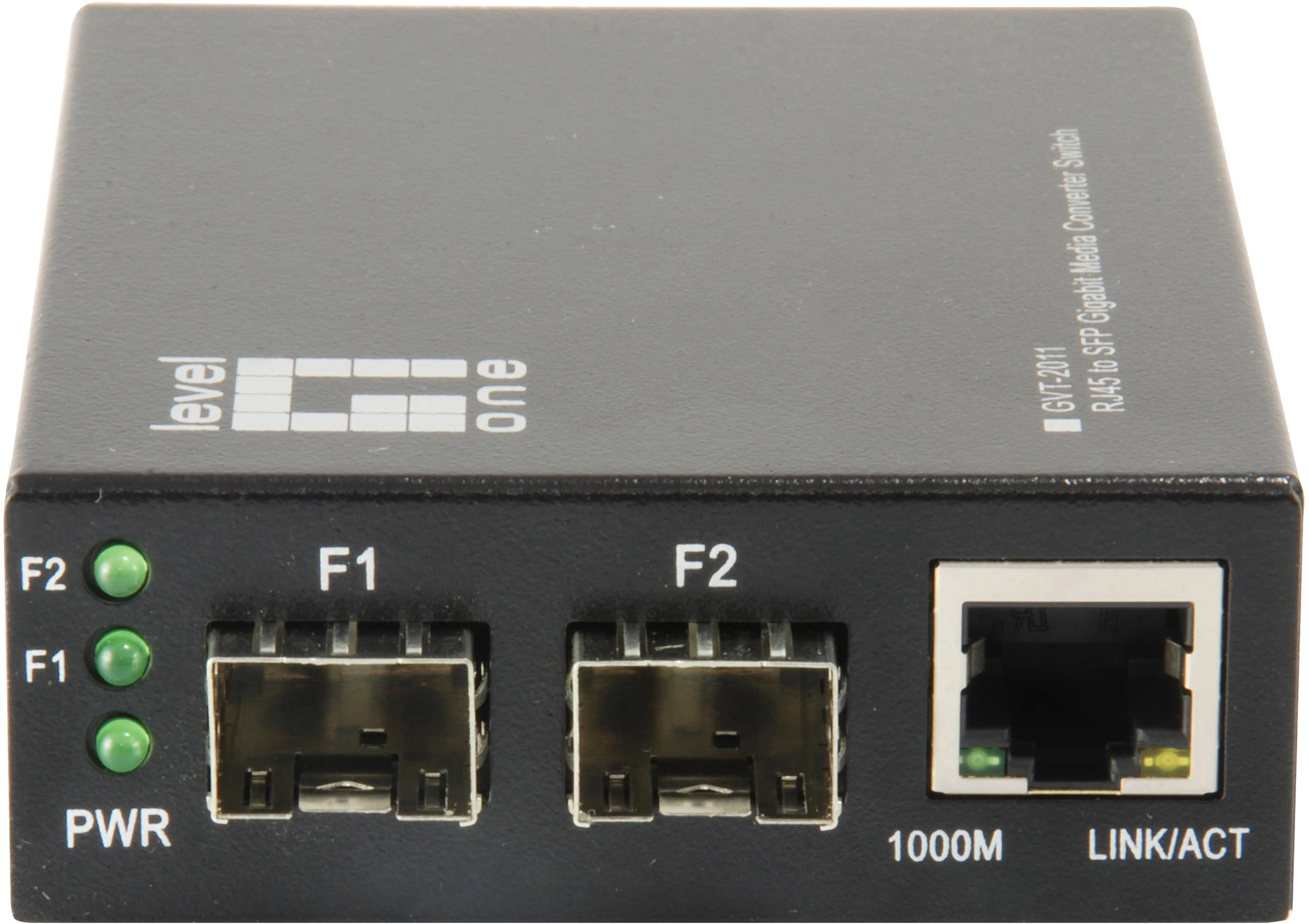

LevelOne GVT-2011 RJ45 To SFP Gigabit Media Converter Switch - 2 X SFP - 1 X RJ45 - Image 3

LevelOne GVT-2011 RJ45 To SFP Gigabit Media Converter Switch - 2 X SFP - 1 X RJ45 - Image 4

LevelOne GVT-2011 RJ45 To SFP Gigabit Media Converter Switch - 2 X SFP - 1 X RJ45 -CableSupply shop LVL1 GVT 2011 1

LevelOne GVT-2011 RJ45 To SFP Gigabit Media Converter Switch – 2 X SFP – 1 X RJ45

Original price was: $125.00.Current price is: $87.50.

SKU: BWFYA 65808828 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

GVT-2011 – Overview

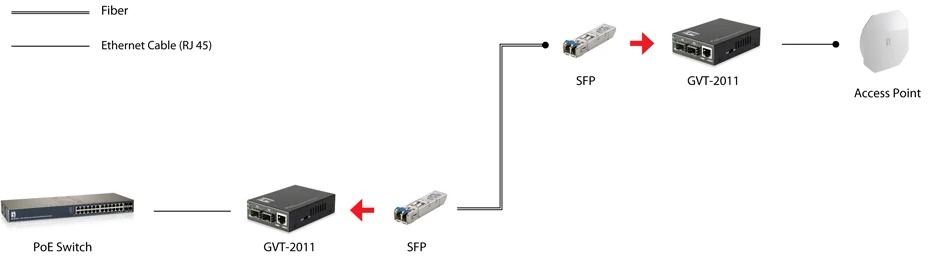

The LevelOne GVT-2011 Gigabit Media Converter Switch provides 1 RJ45 and 2 SFP ports to support conversion between 10/100/1000Base-T and 1000Base-X networks. With the two SFP ports, the converter switch provides high reliability and flexibility to extend the media transmission distance up to 550m, 20km, or longer depending on the SFP fiber optical transceivers. It allows the two types of segment to connect easily, efficiently and inexpensively.

The GVT-2011 works in high performance Store and Forward mechanism, and prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) functions. As the GVT-2011 Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-X, the Gigabit media converter installation is quite quick and easy by simply plug and play.

Features:
- 1 Gigabit Ethernet port and 2 Gigabit SFP slots
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Supports low-time lag transmission
- -10°C to 55°C operating temperature range
Specifications:
- Standards & Protocols
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-TX Fast Ethernet
- IEEE802.3ab 1000Base-T
- IEEE802.3z 1000Base-X Gigabit Ethernet over Fiber-Optic
- IEEE802.3x flow control
  Port
- 2 x SFP Slot
- 1 x RJ45
- 1 x DC Jack
- Indicator: PWR, 1000M, LINK/ACT, F1, F2
- Wavelength (nm): Depend on SFP fiber optical transceiver
- Transmission Method: Store and Forward mechanism
- Power Input: 110VAC~240VAC
- Power Output: 5V/2A
- Power Consumption: MAX to 5w
- Operating Temperature (°C): -10~55°C
- Operating Humidity (Non-condensing): 5% ~ 90% non-condensing
- Mount: wall, desktop, chassis
  General
- 2 ports 1000Base-SX/LX SFP Fiber optic, 1 port 10/100/1000Base-T RJ45
- Auto-Negotiation for 10/100 Base-TX Full-Duplex and 10/100 Base-TX Half-Duplex
- Support IEEE 802.3x Full-Duplex Flow-Control and Back pressure for Half-Duplex to eliminates packets loss
- Support Auto MDI/MDI-X function
- Support VLAN tag, Multicast pass through, and support the max packet length 9000 bytes
- Store-and-Forward mechanism, and 3-port data auto-switching or Backup mode for fiber ports
  Performance
- Operating Distance: Depend on SFP fiber optical transceiver
- Jumbo Frame (K): 9K
  Physical Specifications
- Dimensions (W x D x H mm): 71 x 94 x 26
- Weight (g): 0.3kg
  Reliability
- MTBF: 30000h
  Approval and Compliance
- EMI/EMS: FCC, CE
Item Includes:
- x1 GVT-2011
- x1 Power Adapter
- x1 Quick Installation Guide
GTIN:

0846359048061
