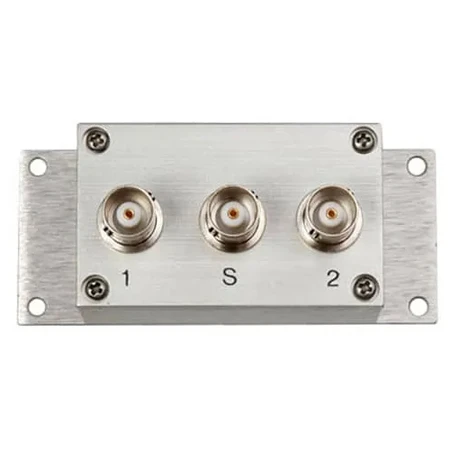

LA-80 – Overview
The LISTEN Technologies LA-80 is a passive 2-way RF combiner. The LA-80 is a passive device, there’s no power supply needed. The unit takes two 2 incoming RF signals and combines them into one 1 outgoing antenna source. In multiple channel applications you may need to use one antenna for multiple transmitters. This is sometimes easier than mounting multiple antennas due to space limitations or aesthetics. This combiner is used in applications where up to two 2 different antenna sources are required and only one 1 antenna output is available or desired.
-
Features:
- Combines two (2) incoming RF signals and combines them into one (1) outgoing antenna source
- Passive (no power supply needed)
- Works with 72, 216 or 863 MHz
- Light weight
- Mountable
- Labeled for ease of use
-
Specifications:
- Connections
- Connector/s BNC
RF
- Frequency Range: 10 to 1000 MHz
- Input/s: 2
- Output/s: 1
- Impedance: 50 Ohm
- Power Loss: 3 dB for every two (2) combined signals
- Phase: 0°
- Input: RF Power Rating 1 W
Power
- Power Supply: Type Passive
Physical
- Shipping Weight: 1 lb. (0.5 kg)
- Dimensions (H x W x D): 3.25 in. (82 mm) x 1.25 in. (32 mm) x 2.75 in. (69 mm)
- Weight: 4.0 oz. (0.1 kg)
Environmental
- Temperature: – Operation -10 °C (14 °F) to +40 °C (104 °F)
- Temperature: – Storage -55 °C (-67 °F) to +100 °C (212 °F)
Compliance
- Safety: RoHS
-
Item Includes:
- 1x LA-80 2-Way RF Antenna Combiner
- 1x Instruction sheet
-
Warranty:
- 1 Year
-
GTIN:
0645015034611
