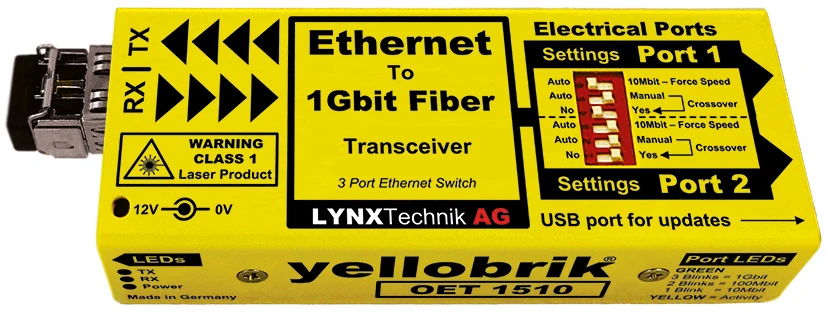

OET 1510 MM – Overview
The LYNX OET 1510 Multimode is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit optical transceiver speed.
When paired with another OET 1510 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit error free optical connection between locations.

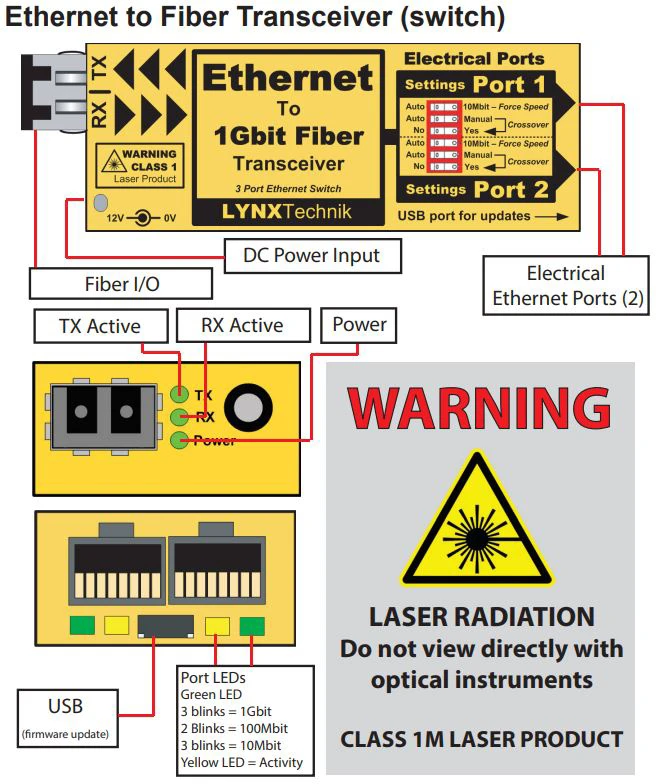

The OET 1510 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use; each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.
-
Features:
- Supports standard Ethernet inputs up to 1 Gbit
- 3 port Ethernet switch (1 fiber, 2 electrical)
- Auto (10/100/1000) electrical port speed detection
- Manually force 10Mbit electrical speed (if needed)
- Fiber transceiver speed always 1 Gbit
- Auto or manual electrical crossover selection
- Singlemode fiber 1310nm up to 10km (6.2 miles)
- Multimode fiber 850nm up to 550m (1,804 feet)
- Duplex LC optical connections
- Supports hot swapping and hot pluggin
-
Specifications:
- Ethernet
- 2 x Ethernet ports, RJ 45 Connectors
- 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
- 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
- 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
- Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
- Automatic crossover detection or force manually for each port (selectable)
- Port speed / activity LED indication (next to Ethernet port)
Fiber Optic
- 1 x fiber optic input (TX)
- 1 x fiber optic output (RX)
- Duplex using LC/PC Connections
- IEEE 802.3z (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
- TX wavelength: 850nm, power -2dBm to -7dBm
- RX input: 850nm sensitivity 0dBm to -15dBm
- Max distance approx: 550m (1804 feet)

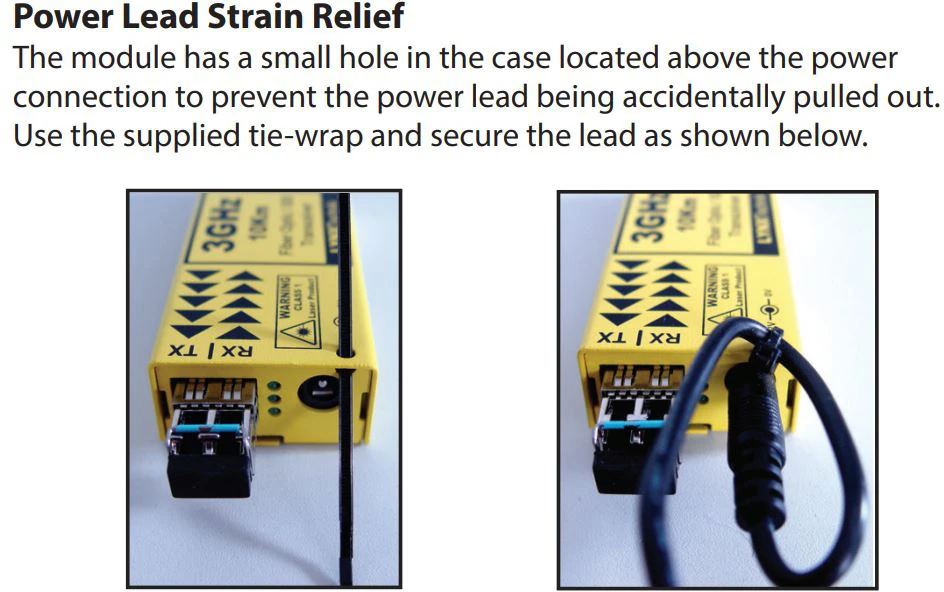

Power: +12VDC @ 2.2W nominal – (supports 7 – 15VDC input range)
-
Item Includes:
- 1x LYNX Technik OET 1510 MM yellowbrik Fiber to Ethernet Transceiver – Multimode – Fiber LC Connectors – 850nm up to 1804Ft
