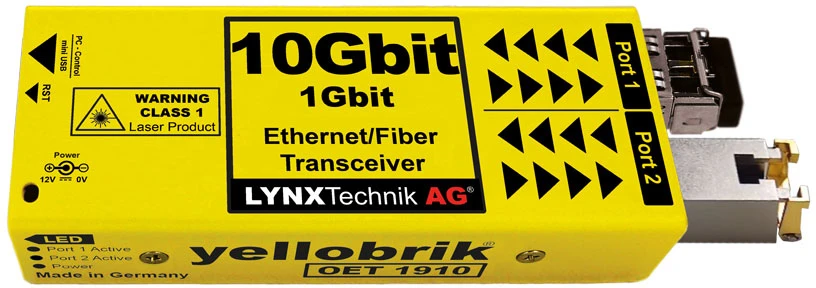

LYNX Technik OET 1910 10G/1G Ethernet/Fiber Optic Transceiver (Singlemode/1310nm/LC Connectors/20km)

LYNX Technik OET 1910 10G/1G Ethernet/Fiber Optic Transceiver (Singlemode/1310nm/LC Connectors/20km) - Image 2

LYNX Technik OET 1910 10G/1G Ethernet/Fiber Optic Transceiver (Singlemode/1310nm/LC Connectors/20km)

Original price was: $374.00.Current price is: $95.99.

SKU: BWFYA 81032135 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

O ET 1910 – Overview

The LYNX Technik OET 1910 is a compact electrical Ethernet to fiber optic converter, designed to extend the reach of 1Gbit/s or 10Gbit/s electrical Ethernet networks over long distances.

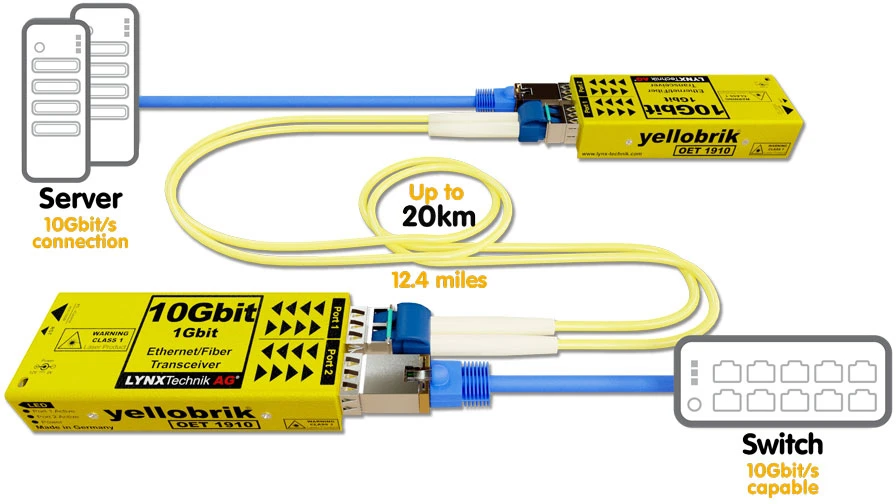

When paired with another OET 1910 (using two fiber links) you have a simple cost-effective Ethernet extender solution for distances up to 20km providing a stable, high-speed optical Ethernet connection between locations.

Features:
- Supports standard Ethernet/Optical signals of 10Gbit/s or 1Gbit/s
- Allows Fiber to Copper and Copper to Fiber conversion
- Singlemode and Multimode versions available
- 2x 10Gbit/s transceiver ports (Electrical/Optical) per module
- Maximum throughput of 20Gbit/s (full duplex)
- Distances up to 20km (12.4 miles) over singlemode fiber
- Power and signal present LED indication
- Supports hot swapping and hot plugging
Specifications:
- SFP Slots
- 2x 10 Gigabit SFP+ slots (Port 1 & 2)
- Supports 10GBase-T SFP, 10GBase-X, 1000Base-T
- IEEE 802.3ae
  Port 1
- 10Gbit/s Base Optical Long Reach+ Transceiver SFP
  1310nm wavelength – singlemode
  Duplex LC connector
  TX Optical Power: -3 to +1dBm / RX Sensitivity: -14.4dBm
  Max. distance up to 20km (~12.4 ml)
  10Gbit/s
- Base Optical Multimode Transceiver SFP
  850nm wavelength – multimode
  Duplex LC connector
  TX Optical Power: -6 to -1dBm / RX Sensitivity: -11dBm
  Max. distance up to 300m (~984.2 ft) – 50/125µ OM3
  Port 2
- 10Gbit/s Base Electrical I/O SFP
  10 Gigabit Ethernet via Cat6a/Cat7 cable
  RJ-45 connector
  Max. distance up to 30m (~98.4ft)
  General
- LED
  3x LED
  1x Power LED
  2x Signal present LED
- Power: +12V DC @ 4W with SFPs ( supports 7 – 15V DC input range )
- Physical Size: 4.73 x 1.65 x 0.86″ (120 x 42 x 22mm) including connectors
- Weight: 125g (4.4oz)
- Ambient Temperature: 5° to 40°C (41° to 104°F) 90% humidity (non condensing)
Item Includes:
- 1x OET 1910 Module
- 1x Power Supply
- 1x Quick Reference Guide
Warranty:
- 3 YEARS
GTIN:

4250479328358
