OET 1510 – Overview

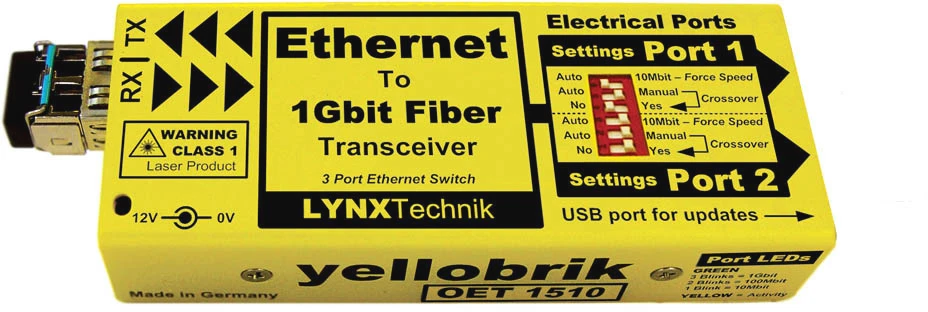

The LYNX Technik OET 1510 is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit optical transceiver speed.
When paired with another OET 1510 at the receiving end (using two fiber links) you have a cost-effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit error free optical connection between locations.

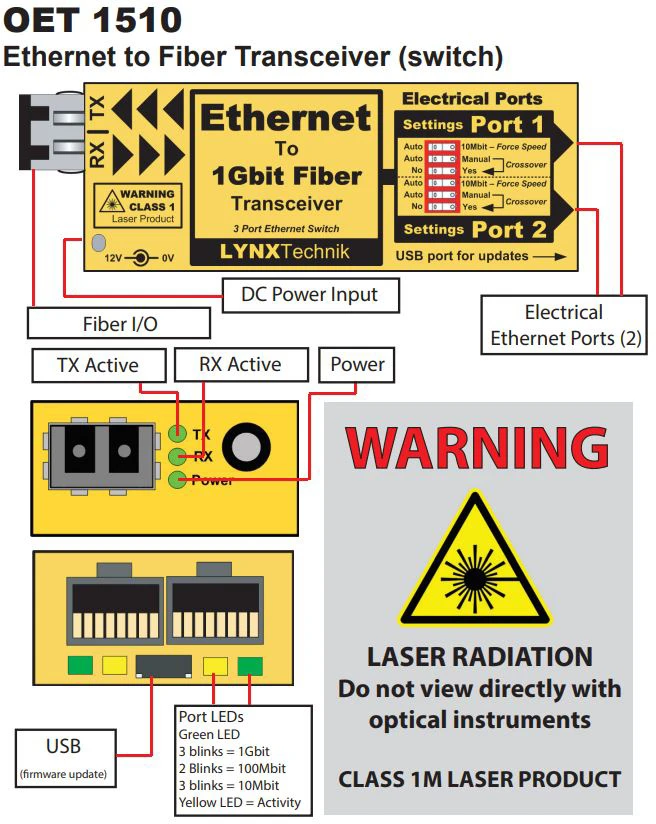

The OET 1510 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use; each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.
-
Features:
- Supports standard Ethernet inputs up to 1 Gbit
- 3 port Ethernet switch (1 fiber, 2 electrical)
- Auto (10/100/1000) electrical port speed detection
- Manually force 10Mbit electrical speed (if needed)
- Fiber transceiver speed always 1 Gbit
- Auto or manual electrical crossover selection
- Singlemode fiber 1310nm up to 10km (6.2 miles)
- Multimode fiber 850nm up to 550m (1,804 feet)
- Duplex LC optical connections
- Supports hot swapping and hot plugging
-
Specifications:
- Ethernet
- 2 x Ethernet ports, RJ 45 Connectors.
- 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
- 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
- 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
- Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
- Automatic crossover detection or force manually for each port (selectable)
- Port speed / activity LED indication (next to Ethernet port)
Fiber Optic
- 1 x fiber optic input (TX)
- 1 x fiber optic output (RX)
- Duplex using LC/PC Connections
- IEEE 802.3z
- (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
Singlemode Version
- TX wavelength 1310nm, power -3dBm
- RX input range 1260nm to 1620nm, sensitivity -3dBm to -21dBm
- Max distance 10km (6.2miles)
Multimode Version
- TX wavelength 850nm, power -2dBm to -7dBm
- RX input 850nm sensitivity 0dBm to -15dBm
- Max distance approx 550m (1804 feet)
- Fiber TX active and RX active LEDs on side of module
Physical
- Power: +12VDC @ 2.2W nominal – ( supports 7 – 15VDC input range )
- Size: 120 x 42 x 22mm (4.73 x 1.65 x 0.86″) including connectors
- Weight: 125g (4.4oz)
- Ambient: 41 – 104°F / 90% Humidity (non condensing)
- Model #: OET 1510 (singlemode) – ( EAN# 4250479315129 ); OET 1510 MM (multimode) – ( EAN # 4250479321144 )
-
Item Includes:
- 1 x OET 1510 Module
- 1 x AC Power Supply
- 2 x Module Mounting Brackets
-
Options:
- LC/ST DUP – Dual LC to ST Fiber connector adapter cable
- LC/SC DUP – Dual LC to SC Fiber connector adapter cable
- P-TAP 1000 – P-TAP battery power adapter lead
- XLR-1000 – 4 Pin XLR camera battery power adapter lead
-
