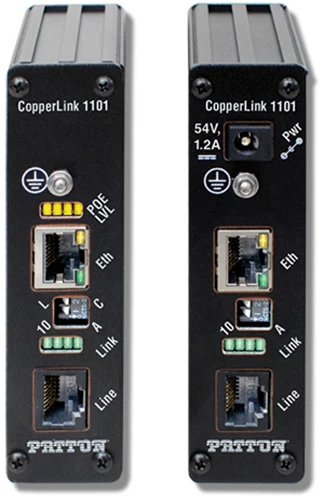

Patton CL1101E/PAFA/RJ45/EUI-2PK CopperLink Industrial PoE Extender Kit - 1x10/100 - 802.3af RJ45 Line - 100-240VAC

Patton CL1101E/PAFA/RJ45/EUI-2PK CopperLink Industrial PoE Extender Kit - 1x10/100 - 802.3af RJ45 Line - 100-240VAC - Image 2

Patton CL1101E/PAFA/RJ45/EUI-2PK CopperLink Industrial PoE Extender Kit - 1x10/100 - 802.3af RJ45 Line - 100-240VAC - Image 3

Patton CL1101E/PAFA/RJ45/EUI-2PK CopperLink Industrial PoE Extender Kit - 1x10/100 - 802.3af RJ45 Line - 100-240VAC -CableSupply shop CL1101EPAFARJ45E 1

Patton CL1101E/PAFA/RJ45/EUI-2PK CopperLink Industrial PoE Extender Kit – 1×10/100 – 802.3af RJ45 Line – 100-240VAC

Original price was: $302.00.Current price is: $97.99.

SKU: BWFYA 15828617 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

CL1101E/PAFA/RJ45/EUI-2PK – Overview

With global expansion of the Internet of Things (IoT), demand for IP/Ethernet-connected devices is soaring. Billions of devices are already capable of connecting to the Internet. Ethernet-and power-over-Ethernet (PoE) in particular-has grown in popularity because it strikes the perfect blend of speed, cost, and ease of use.

Ethernet, however, presents a few drawbacks that may overshadow the benefits by creating escalating infrastructure costs and system downtime. The Ethernet standard specifies a distance limitation of 328 ft (100 m), which restricts location options for device installation. Standard Ethernet also requires Cat 5 cabling or better, which often leads to installing new cabling infrastructure-involving tearing into walls, ceilings, pavement, and worse.

The CopperLink 1101E from Patton enables Ethernet connectivity over previously installed copper infrastructure. The solution breathes new life into circuits previously deployed for such traditional non-IP applications as RS232/485 HVAC and building automation controls, alarms, CCTV, analog phones, intercom speakers, and others.

Instantaneously install PoE-capable devices such as wireless access points (WAPs), IP cameras, IP telephones, IP door stations, HVAC controls, LED lighting and more-with no additional overhead cost. With the extended reach the CL1101E provides, you can install your IP terminal equipment exactly where you want it! Flexibility of device location is paramount in such applications as building security, where increased perimeter dimension and expanded spot coverage area are critical.

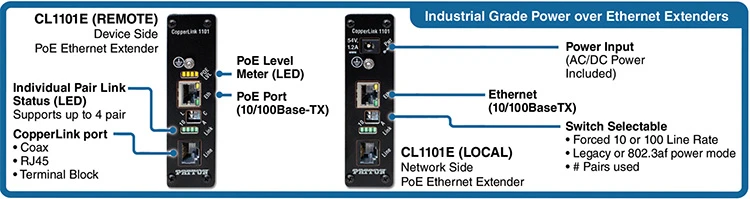

Please note: This is a kit with both a LOCAL (SEND) unit and a REMOTE (RECEIVE) unit.

Applications:

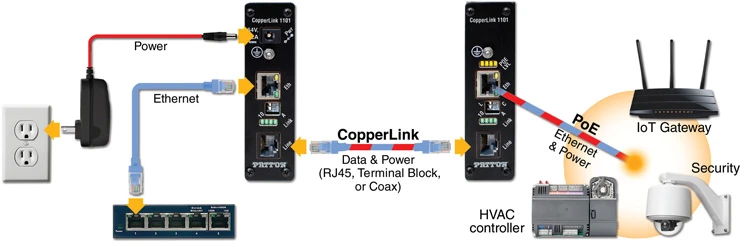

Extend Power and Ethernet to compliant or legacy PoE devices using already installed twisted-pair cable or coax.

Made in the USA

Features:
- Ethernet Extension – Extends 10/100Base-TX Ethernet over 3,300 feet (1005 meters) using 2-wire, 24-AWG twisted-pair, Cat 3, Cat 5e/6/7, or coaxial cable.
- Delivers PoE – PowerPlus technology powers up both the remote CopperLink extender and the PoE enabled device connected to it. No power is required at the remote location.
- Transparent LAN Bridging – Will pass higher layer industrial Ethernet protocols such as BACnetIP, EtherCAT and Modbus TCP.
- Plug and Play – Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half-duplex.
- Overvoltage Protection – Overvoltage protection on Line and Ethernet ports prevents damage from ESD (electrostatic discharge), CDE (cable discharge events), and lightning.
- Made in the USA – This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton’s American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Specifications:
- Line Interfaces (Data)
- 1 x RJ45 (Optional: Terminal Block, Coax)
- Supports 1-4 pairs
  Ethernet Interfaces
- 1 x RJ45 Auto-Sensing 10/100Base-TX with full or half-duplex operation
  LEDs
- Power, Line, (10 or 100 operation), Eth, and PoE
  Protocol
- Transparent to high layer Industrial Ethernet protocols such as EtherCAT, Modbus-TCP, PROFINET and more.
- Supports 802.1Q VLAN tagged frames
- Transparent to IP video schemes
- Fully transparent to compression schemes such as WMV, MPEG-4, and MJPEG
  Overvoltage Protection (Line and Ethernet)
- IEC 61000-4-2 (ESD) 25kV (air), 15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (lightning) 25A (8/20æs)
  Power Injection (PSE only)
- DC voltage on Ethernet port
- 54 VDC
  Power Consumption
- 1.5 W
  Power Supply
- External AC Adapter 100-240 VAC to 54 VDC
- Input: 30-57 VDC (Recommended 54 VDC)
  MTBF
- 83,043 hours
  Environment
- Temperature: -10 to 70°C
- Humidity: 10 to 95% (non-condensing)
  Physical
- 1.19 W x 4.28 H x 3.36 D in. (30.2 W x 108.7 H x 85.3 D mm)
- 0.78 oz (22 g)
  Compliance
- FCC Part 15A, Class B
- CE Mark
- EMC Directive 89/336/EEC
- LVD Directive 73/23/EEC
