2X1SPLIT – Overview

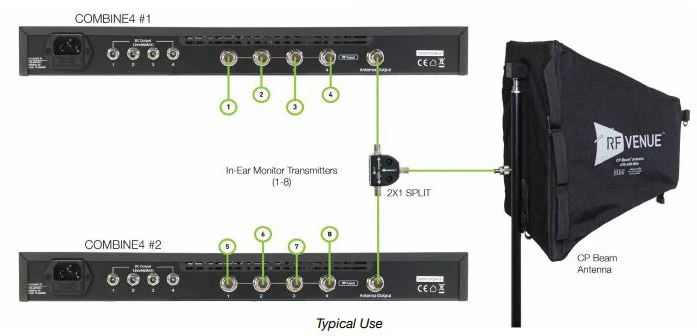

The RF Venue 2x1SPLIT is a passive 2X1 RF Signal Splitter/Combiner with BNC female connectors intended for use with wireless audio systems. It is compatible with all major brands of wireless microphones and in-ear monitors.
-
Features:
- One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out.
- R1 channel passes 12VDC if DC over coax is provided.
-
Specifications:
- Electrical
- RF Carrier Frequency Range: 10-1,000 MHz
- VSWR: 1:2
- Impedance: 50Ω
- Isolation: 20 dB
- Insertion Loss: 2 dB
- Max power into ANT input: 30 dBm
- Max power to each of R1 & R2: 26 dBm
- Power requirements: 12V DC, 100ma
-
GTIN:
0718122340712
