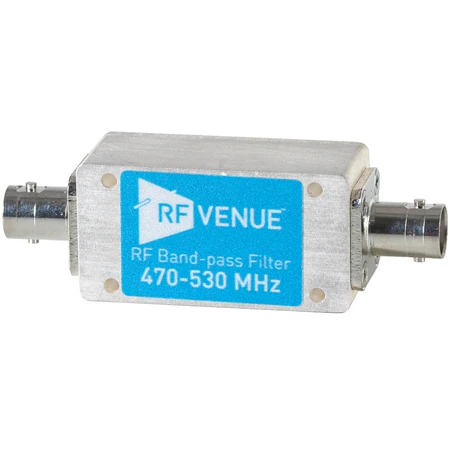

RF Venue BPF470T530 Band-Pass RF Filter – 470-530 MHz

Original price was: $317.00.Current price is: $99.99.

SKU: BWFYA 71768123 Categories: Digital CATV & RF Distribution, RF Channel Filters

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

BPF470T530 – Overview

RF Venue band-pass filters help eliminate “out of band” signals that can saturate the front end of wireless microphone receivers and can greatly improve dynamic range by reducing noise and third party interference outside the range of operation.

Featuring industry standard BNC connectors and a small 3″ x 1.75″ footprint, these hand-tuned band-pass filters require no power or user configuration and can be easily connected in-line with wireless microphone antennas to reduce noise and improve wireless system performance.

Simply connect the band-pass filter in-line with your wireless microphone remote antenna connections for 40 dB of side rejection. Note: (2) required for diversity wireless microphone systems. Not for use with in-ear monitor or other transmit applications.

Features:
- 470-530 MHz Band-pass Filter Compatibility:
  Shure G50, G1
  Audio-Technica DE2
Specifications:
- Pass Band: 470 to 530MHz
- Insertion Loss Max: 3.5dB
- Ripple In-band Max: 1.5dB
- VSWR Max: 1.5
- Rejection:
  40dB @ DC-440 MHz
  20dB @ 440-449 MHz
  20dB @ 582-592 MHz
  40dB @ 592-1000 MHz
- Power: 2W
- Temperature Range: -22° to 158°F (-30° to 70°C)
GTIN:

0602573615195
