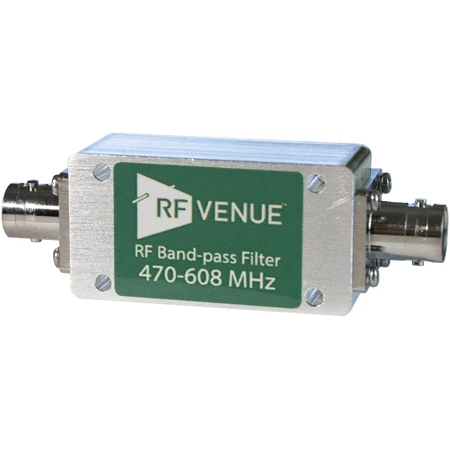

RF Venue BPF470T608 RF Band-Pass Filter For Wireless Mics – 470-608 MHz Range – North American Use

BPF470T608 – Overview

Help eliminate “out of band” signals and improve dynamic range!

• Features:

  • Works with most wireless microphones
  • Optimized for use in North America


• Specifications:

  • 470-608 MHz Band-pass Filter Compatibility Works with most wireless microphones – Optimized for use in the United States
  • Model: BPF470T608
  • Pass Band: 470-608 MHz
  • Insertion Loss MAX: 3.5 dB
  • Ripple in-band MAX: 1.5 dB
  • VSWR MAX: 1.5
  • Rejection: 40dB @ DC-412 MHz – 20dB @ 412-426 MHz – 20dB @ 655-668 MHz – 40dB @ 668-1000 MHz
  • Power: 2W
  • Temp: -30 to 70°C
  • Notes:
  • Two (2) required for diversity wireless microphone systems.
  • Band-pass filters do not pass DC bias required for active antennas.
  • Not for use with in-ear monitor or other transmit applications


• Item Includes:

  • 1x RF Venue BPF470T608 RF Band-Pass Filter – US Version 470-608 Mhz


• Warranty:

  • One (1) year from the date of original purchase
