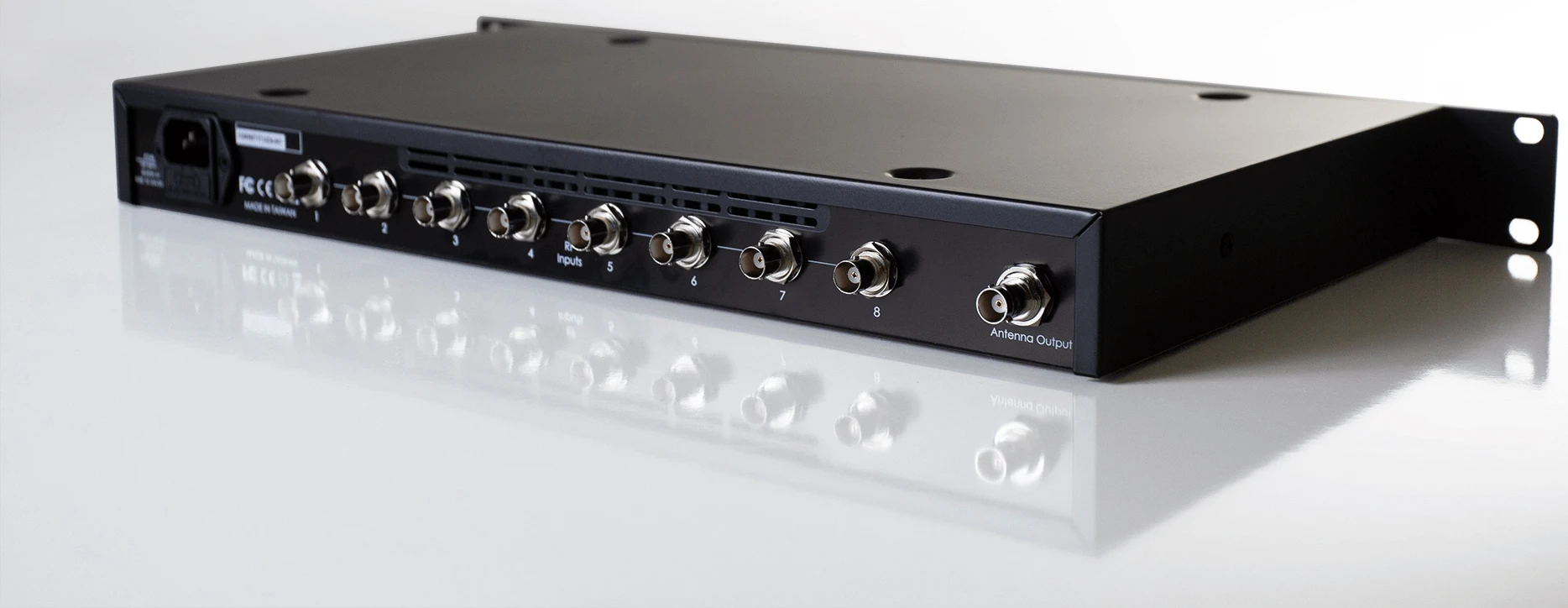

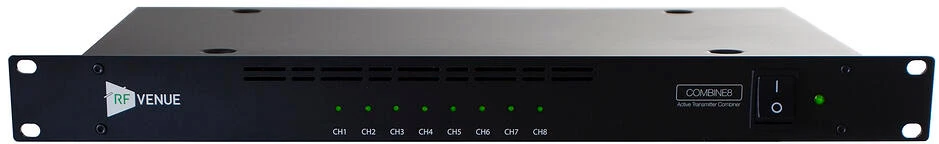

RF Venue COMBINE8 8-Channel In-Ear Monitor Combiner

RF Venue COMBINE8 8-Channel In-Ear Monitor Combiner - Image 2

RF Venue COMBINE8 8-Channel In-Ear Monitor Combiner

Original price was: $329.00.Current price is: $97.99.

SKU: BWFYA 98986917 Categories: Digital CATV & RF Distribution, RF & CATV Combiners

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

COMBINE8 – Overview

The RF Venue COMBINE8 IEM combiner brings together up to eight in-ear monitor transmitter signals into a single rear panel mounted antenna connector.

Any brand IEM set to transmit 50 mW or less may be used, as well as any type of directional antenna. It also provides DC power to up to 8 IEM transmitters with an external power supply, removing the need for wall warts.

IEM transmitter combination is important for multi-channel systems to minimize intermodulation artifacts arising from multiple adjacent transmitters interfering with one another. The CP Beam antenna is a recommended accessory for the COMBINE8 and is available with in a bundled package.

Features:
- Freedom to place one directional antenna outside the rack for better line-of-sight and improved wireless performance.
- 1RU Full rack width to install near transmitters. Includes cabling accessories to connect and power up to eight wireless
  transmitters.
- Compatible with all manufacturers.
Specifications:
- Frequency Range: 470-608 MHz
- Input Connectors: 8x BNC
- Full System Gain: 0 dB (+/-2 dB)
- Maximum RF Input Power: +18 dBm (60 mW)
- LED Indicator: > +5 dBm
- Power Consumption: 36W
- I/O: 8x RF Inputs, 1 Antenna Out
- Input AC Voltage: 100-240 VAC, 50/60 Hz, Max 1.5A
- Dimensions: 480 x 45 x 260mm
- Weight: 3.7 kgs
Item Includes:
- 1x COMBINE8 Antenna Combiner
- 8x BNC jumpers
- 1x Auxiliary AC power cable with 8 outputs
- 1x AC power cord
GTIN:

0672975227012
