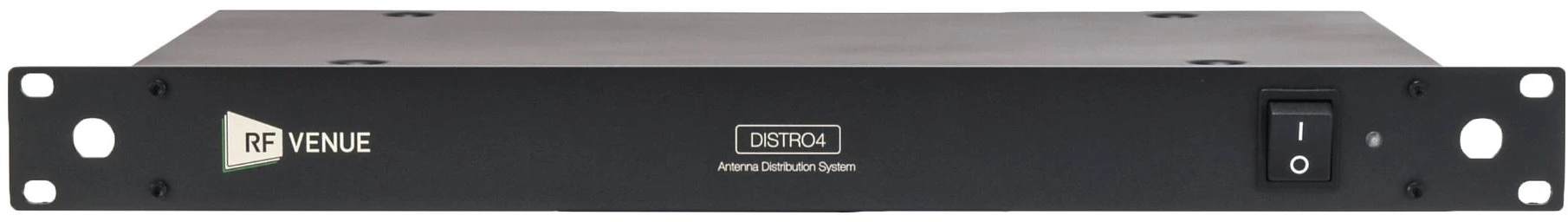

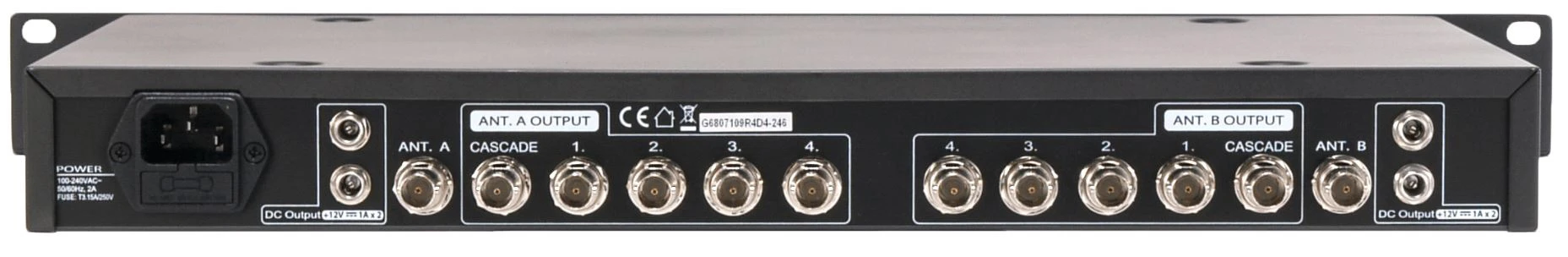

RF Venue DISTRO4 Antenna Distribution System With Cascade

RF Venue DISTRO4 Antenna Distribution System With Cascade - Image 2

RF Venue DISTRO4 Antenna Distribution System With Cascade

Original price was: $340.00.Current price is: $99.99.

SKU: BWFYA 52596624 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

DISTRO4 – Overview

DISTRO4 is a broadband UHF antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. DISTRO4 compensates for signal strength lost in the splitting process with high quality amplifiers. Two or more units may be cascaded together to accommodate more than four receivers with the included cascade port.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.

Specifications:
- Frequency range: 470-952 MHz
- RF output level (gain): 3 dB (±2 dB)
- Cascade output level: 0 dB – +2 dB
- Output connection isolation: ≥ 25 dB
- Third order intercept point: 24 dBm
- Impedance: 50Ω
- Power consumption: 60 W
- Input AC voltage: 100-240 V switching
- DC over coax (to external antennas): 12-14 VDC
- Output DC voltage (to receiver jacks): +12 V
- Dimensions (W x H x D): 18.8″ x 1.7″ x 9.8″ (480 x 45 x 250 mm)
- Weight: 4.7 lbs (2.15 Kgs)
Item Includes:
- 10x BNC jumpers
- 4x DC cables
- 1x AC cables
GTIN:

0718122341313
