ET91000LC2 – Overview
Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber
The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

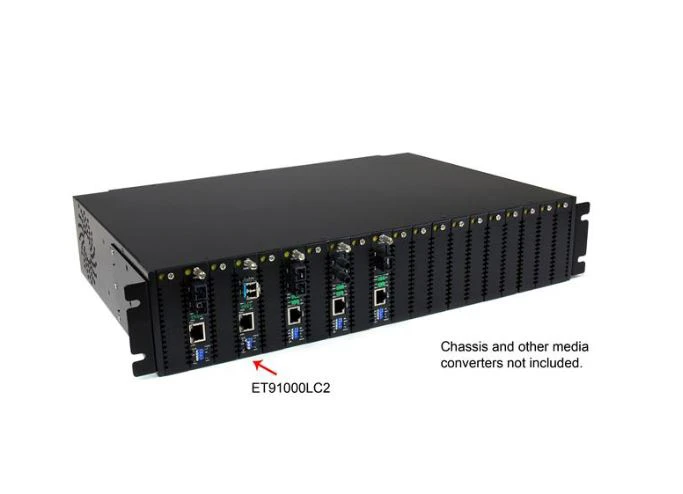

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
-
Features:
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- SFP can be removed from the unit, for replacement or swapping to a different specification
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced feature include Link-loss forwarding, remote monitor status, two frame lengths
- Maximum fiber cable length of 550m
- Supports full or half-duplex operation
- Easy to use and install
- Jumbo frame support
-
Specifications:
- Auto MDIX: Yes
- Fiber Operating Mode: Half/Full-Duplex
- Fiber Type: Multi Mode
- Max Transfer Distance: 550 m (1804 ft)
- Maximum Data Transfer Rate: 2000 Mbps (full duplex mode)
- MTBF: 65,000 Hours
- Wavelength: 850nm
- Local Unit Connectors:
- – 1 – Fiber Optic LC Duplex Female
- – 1 – RJ-45 Female
- Color: Black
- Enclosure Type: Steel
- Product Height: 0.8 in [20 mm]
- Product Length: 6.3 in [160 mm]
- Product Weight: 21.9 oz [620 g]
- Product Width: 3.7 in [95 mm]
- Center Tip Polarity: Positive
- Input Current: 0.36A
- Input Voltage: 115 ~ 230 AC
- Output Current: 1A
- Output Voltage: 12 DC
- Plug Type: M
- Power Consumption: 4W
- Power Source: AC Adapter Included
- Humidity: 10~90% RH
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Shipping (Package) Weight: 1.6 lb [0.7 kg]
-

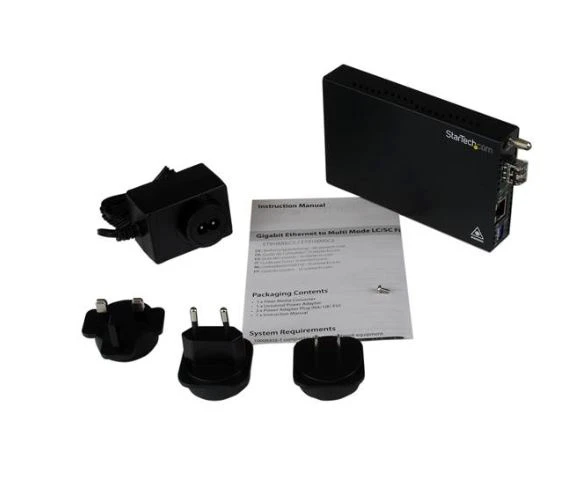

Item Includes:
- (1) Fiber Media Converter
- (1) Universal Power Adapter (NA/EU/UK) or AU in Australia
- (1) Instruction Manual
-
Warranty:
- 2 Years
-
GTIN:
0065030846226
