ET91000SM402 – Overview
The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

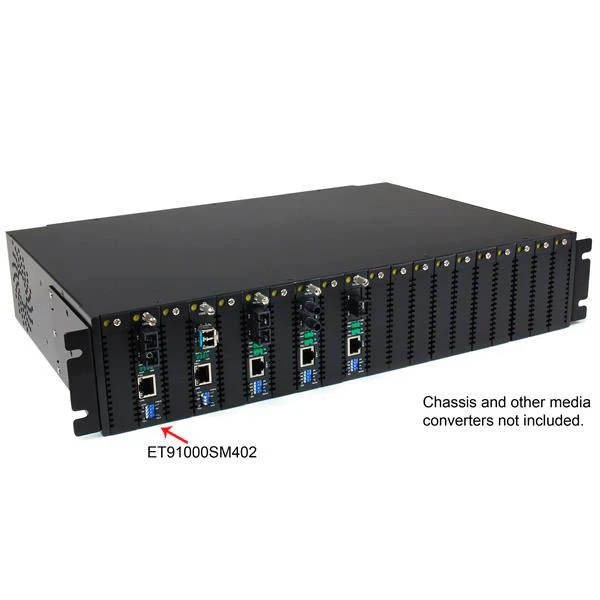

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
-
Features:
- Rugged steel casing for added durability in harsh environments
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Maximum Fiber Cable length of 40 km
- Supports full or half-duplex operation
- Quick and simple installation, easy to use
-
Specifications:
- PoE: No
- WDM: No
- Connector(s): Local Unit Connectors 1 – Fiber Optic SC Duplex Female;1 – RJ-45 Female
- Maximum Data Transfer Rate: 2000 Mbps (full duplex mode)
- Max Transfer Distance: 40 km (24.8 mi)
- Fiber Type: Single Mode
- Wavelength: 1310nm
- Fiber Operating Mode: Half/Full-Duplex
- Auto MDIX: Yes
- MTBF: 65,000 Hours
- Color: Black
- Enclosure Type: Steel
- Product Length: 6.3 in [160 mm]
- Product Width: 3.7 in [95 mm]
- Product Height: 0.8 in [20 mm]
- Product Weight: 21.2 oz [600 g]
- Power Source: AC Adapter Included
- Input Voltage: 115 ~ 230 AC
- Output Voltage: 12 DC
- Output Current: 1A
- Center Tip: Polarity Positive
- Plug Type: M
- Power Consumption: 4W
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Humidity: 10~90% RH
- Shipping (Package) Weight: 1.5 lb [0.7 kg]
-

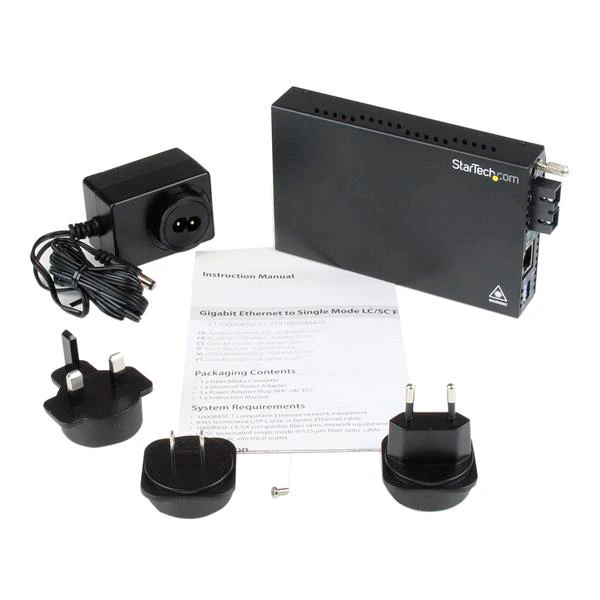

Item Includes:
- 1 – Fiber Media Converter
- 1 – Universal Power Adapter (NA/UK/EU)
- 1 – Instruction Manual
-
Warranty:
- 2
-
GTIN:
0065030846219
