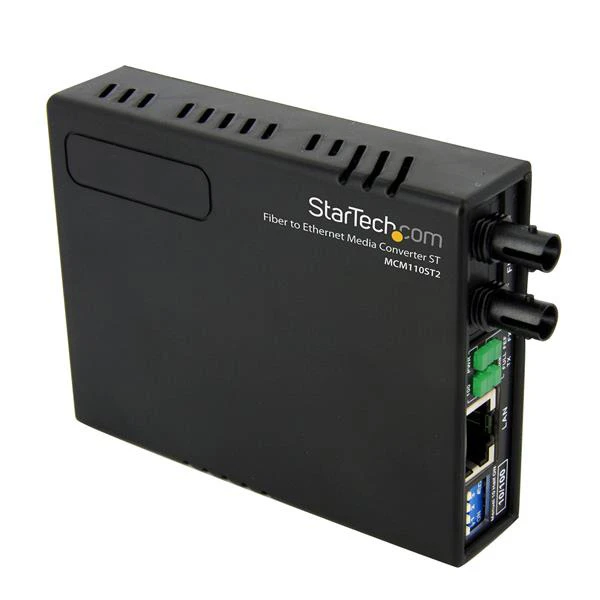

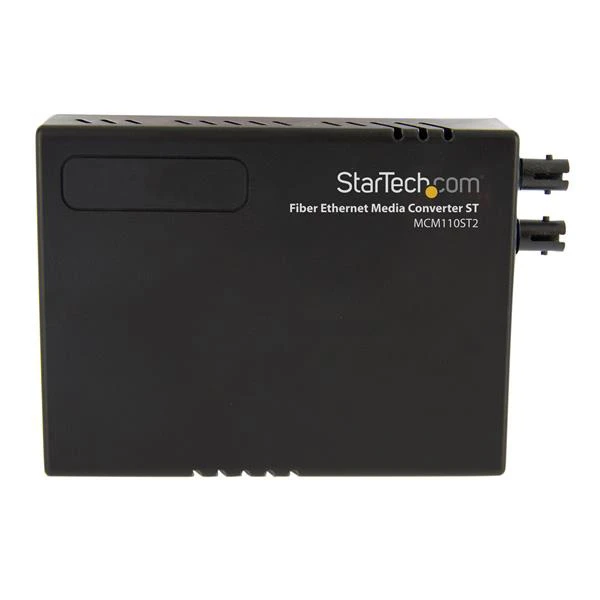

MCM110ST2 – Overview
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
-
Features:
- Supports a maximum multi mode fiber optic cable distance of 2 km
- Supports full or half-duplex operation
- Compatible with 3COM, Cisco, Lucent and Nortel networks
- Supports Link Fault Pass through (LFP)
- Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
- Supports IEEE 802.1q Tag VLAN pass thru
- Supports Q in Q double tagged frame transparent
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Support flow control (Pause)
-
Specifications:
- Hardware
- Industry Standards IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-FX
- IEEE 802.3u 100BASE-TX
- PoE No
- WDM No
- Performance
- Fiber Operating Mode Half/Full-Duplex
- Fiber Type Multi Mode
- Max Transfer Distance 2 km (1.2 mi)
- Maximum Data Transfer Rate 10/100Mbps
- MTBF 65,000 Hours
- Optical Power -14 ~ -20 dBm
- Power Budget 11 dB
- Sensitivity -31 dBm
- Wavelength 1310nm
- Connector(s)

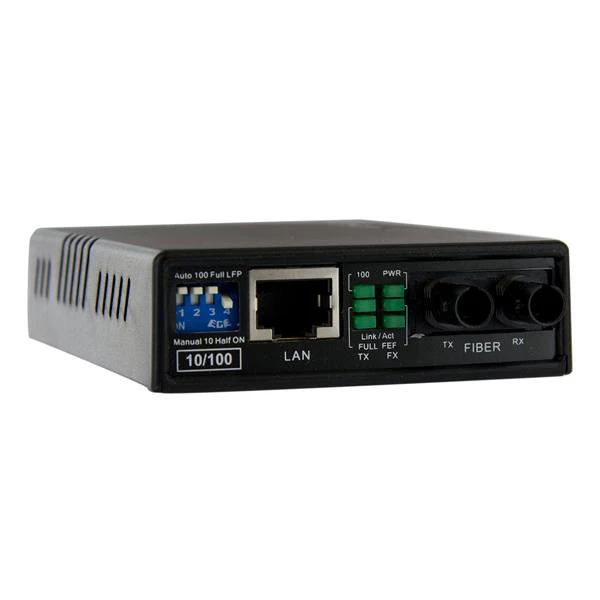

- Local Unit Connectors 1 – Fiber Optic ST Duplex Female
- 1 – RJ-45 Female
- Indicators
- LED Indicators 1 – Ethernet Link & Activity (ON – Fiber Link ok, Blinking – Activity on Fiber Link)
- 1 – FEF [Far End Fault](On – Fault Detected, Off – No Fault
- 1 – Fiber Link & Activity (On – Fiber Link ok, Blinking – Activity on Fiber Link)
- 1 – Full ( Full duplex / Half duplex)
- 1 – Power
- 1 – Speed (10 or 100 Mbps)

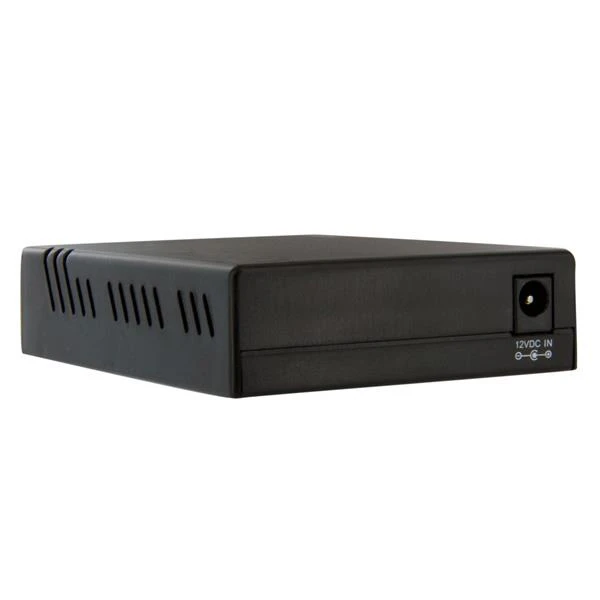

- Power
- Center Tip Polarity Positive
- Input Voltage 115 AC
- Output Current 0.2A
- Output Voltage 12 DC
- Plug Type M
- Power Source AC Adapter Included
- Environmental
- Humidity 10~90% RH
- Operating Temperature 0°C to 50°C (32°F to 122°F)
- Storage Temperature -10°C to 70°C (14°F to 158°F)
- Physical Characteristics
- Color Black
- Enclosure Type Plastic
- Product Height 0.8 in [20 mm]
- Product Length 3.7 in [95 mm]
- Product Weight 3.2 oz [90.5 g]
- Product Width 3 in [75 mm]
- Shipping (Package) Weight 0.9 lb [0.4 kg]
-

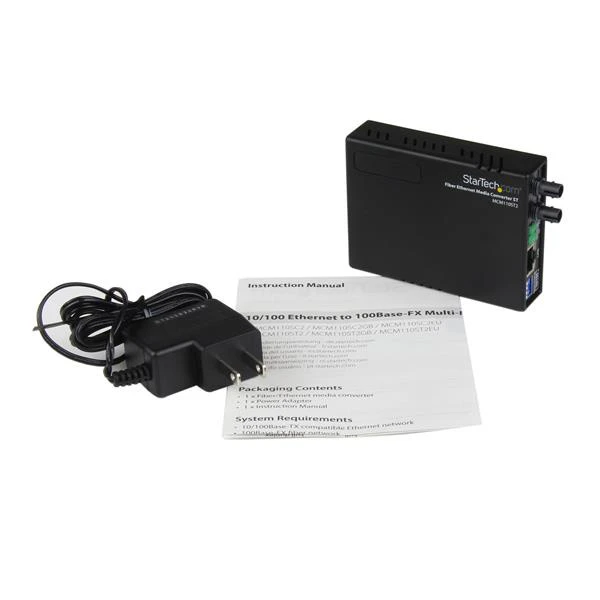

Item Includes:
- 1 – Media Converter
- 1 – Power Adapter
- 1 – Instruction Manual
-
Warranty:
- 2 Years
-
GTIN:
0065030835633
