StarTech MCMGBSCMM055 Gigabit Ethernet To SC Fiber Media Converter

StarTech MCMGBSCMM055 Gigabit Ethernet To SC Fiber Media Converter - Image 2

StarTech MCMGBSCMM055 Gigabit Ethernet To SC Fiber Media Converter - Image 3

StarTech MCMGBSCMM055 Gigabit Ethernet To SC Fiber Media Converter - Image 4

StarTech MCMGBSCMM055 Gigabit Ethernet To SC Fiber Media Converter - Image 5

StarTech MCMGBSCMM055 Gigabit Ethernet To SC Fiber Media Converter

Original price was: $73.55.Current price is: $51.49.

SKU: BWFYA 76542800 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

MCMGBSCMM055 – Overview

The MCMGBSCMM055 fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks. The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech’s 2-year warranty and free lifetime technical support.

Features:
- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
- Compact design and wall mountable
- Non-blocking full wire-speed forwarding rate
- Provides DIP switch supporting Link Fault Pass-through function
- LED indicators for simple Ethernet/fiber network link monitoring
- 580 nm wavelength
- Supports IEEE 802.1q Tag VLAN pass-through
Specifications:
- Performance
- Auto MDIX: Yes
- Fiber Operating Mode: Full-Duplex
- Jumbo Frame Support: 9K max.
- Max Transfer Distance: 550 m (1804 ft)
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- MTBF: > 50,000 hours at 25°C
- Switching Architecture: Store-and-Forward
- Type: Multi Mode
- Wavelength: 850nm
- LED Indicators: 1x 1000 Link: ON – Valid Gigabit Link; 1x FX Link/Activity; 1x Power; 1x TP Link/Activity
  Physical
- Center Tip Polarity: Positive
- Input Current: 0.5 A
- Input Voltage: 100 ~ 240 AC
- Output Current: 2.6 A
- Output Voltage: 5 DC
- Plug Type: N
- Power Consumption (In Watts): 5
- Power Source: AC Adapter Included
- Humidity: 5 ~ 90% RH
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Color: Brown
- Enclosure Type: Steel
- Dimensions (H x L x W): 1″ x 2.8″ x 3.8″ (26mm x 70mm x 97mm)
- Weight: 7.1 oz (200 g)

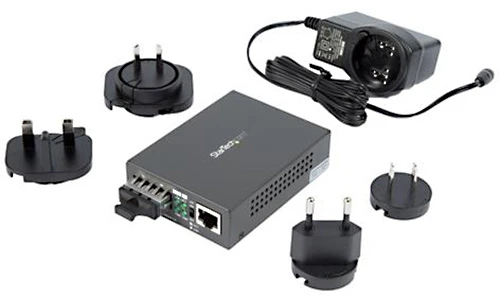

Item Includes:
- 1x media converter
- 1x universal power adapter (NA/JP, UK, EU, ANZ)
- 1x quick-start guide
Warranty:
- 2 Year
GTIN:

0065030878227
