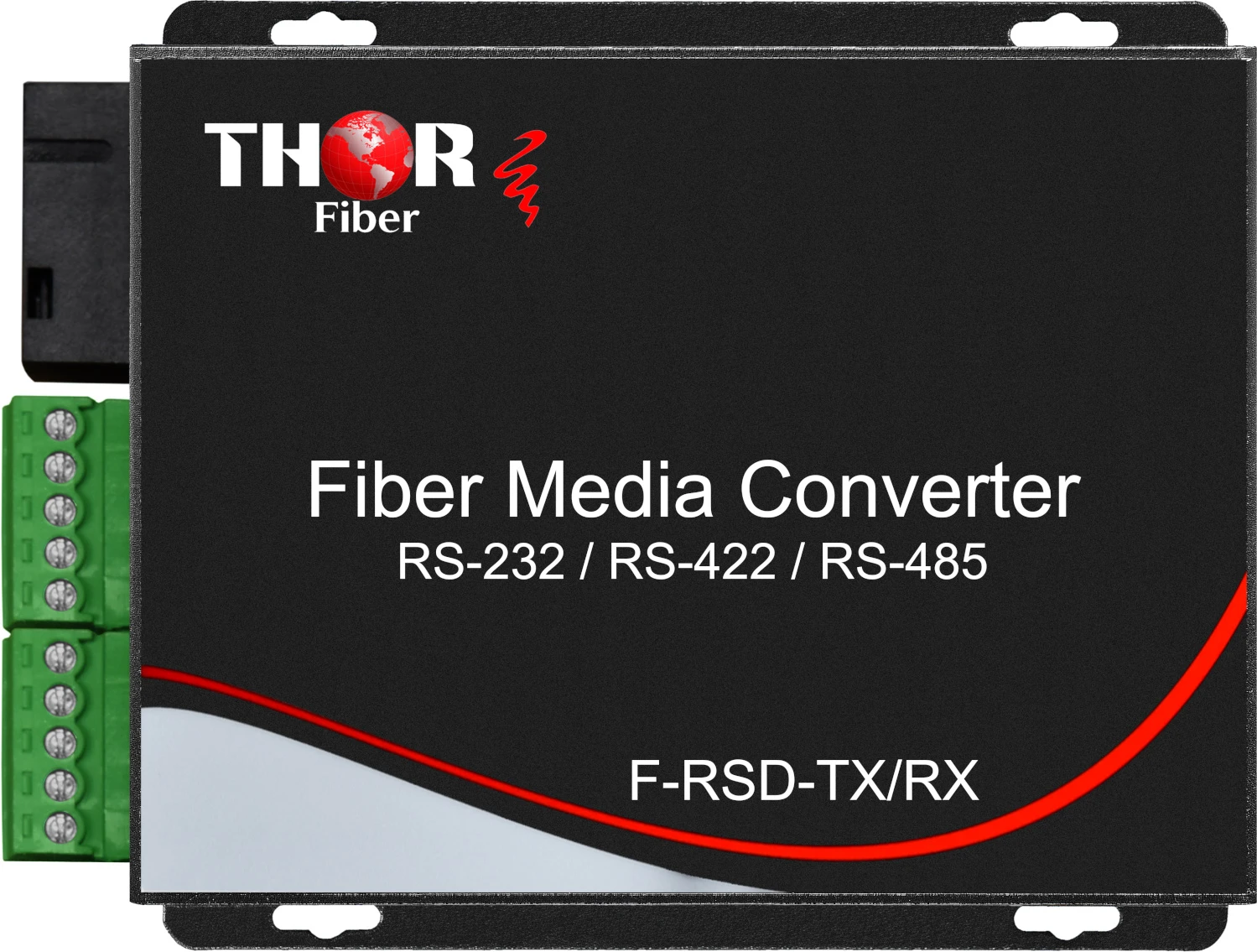

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode - Image 2

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode - Image 3

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode - Image 4

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode - Image 5

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode -CableSupply shop THR F RSD ABTXRX 1

Thor F-RSD-A/B-TXRX Serial RS-485 / RS-422 / RS-232 To Fiber Media Converter With SFP SC Duplex Multimode Or Singlemode

Original price was: $354.00.Current price is: $99.99.

SKU: BWFYA 2270159 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

F-RSD-A/B-TXRX – Overview

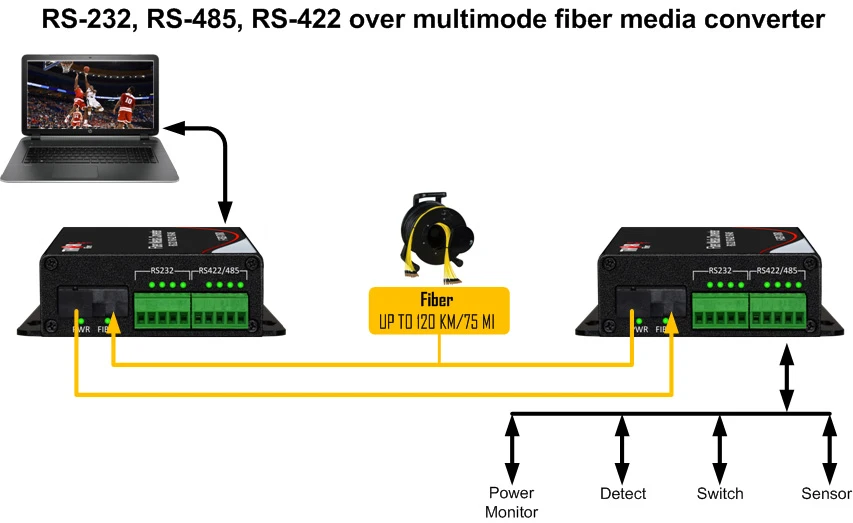

Thor Fiber now has a line of Multi-Serial (F-RSD-ABTXRX)(RS-232 / RS-485/ RS-422) to Fiber Optic Converters that transmit a serial protocol over fiber. Fiber Transmission extends a serial signal up to 120km.

These units support single-mode and multimode over a single fiber. The serial port interface is a single terminal block connector field wiring.

These units automatically detect the signal baud rate of the connected serial device that ranges from 300bps to 115.2Kbps baud. It also automatically adjusts to changes in the connected device’s bound during operation without reconfiguration or interruption of service.

It supports Chassis, Wall-mounted, and DIN rail mount for quick and easy installation.

Features:

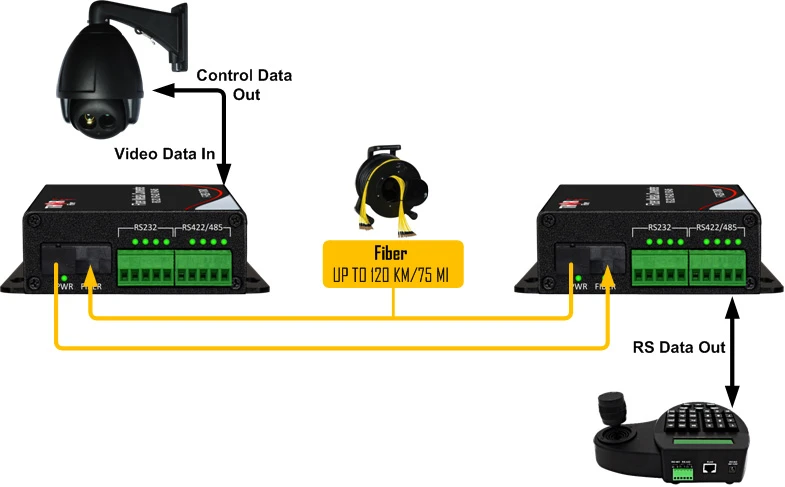

- Point-Point Bi-Directional Transmission
- Zero-Delay automatic forwarding
- RS-232/ RS-485 / RS-422 to fiber automatic baud rate detection
- Baud rate :300bps to 115.2Kbps
- Protocol Asynchronous Serial
- Supports multi-mode, single-mode and single-fiber with FC/ST/SC connectors
- 20Km (40 80 or 120Km if needed ) Multi-mode up to 3000 feet
- Hot-pluggable
- Chassis avaialble, Wall-mounted or DIN-Rail installation
- supports 1500W surge protection and 15KV ESD protection
- External power supply
Specifications:
- Data
- Physical Interface: The industry standard – Copper Terminal Block
- Interface Signal: RS-232/RS-485/RS-422
- Baud Rate:
  300bps ~ 125kbps
  300bps ~ 900kbps (F-RSD-A-B-TX/RX -H) Special order
- Code Bit Rate: 0-1Mbps Typically
- BER: 10 -9
- Protocol: Asynchronous Serial
- Mode: point to point Bi-directional full duplex
  Optical
- Fiber Connector: SC as default, ST/PC FC/SC optional
- Optical Distance: 20Km (40,80,120km -model dependent)
- Fiber Type: Single-mode, Dual fiber (single fiber input/output available)

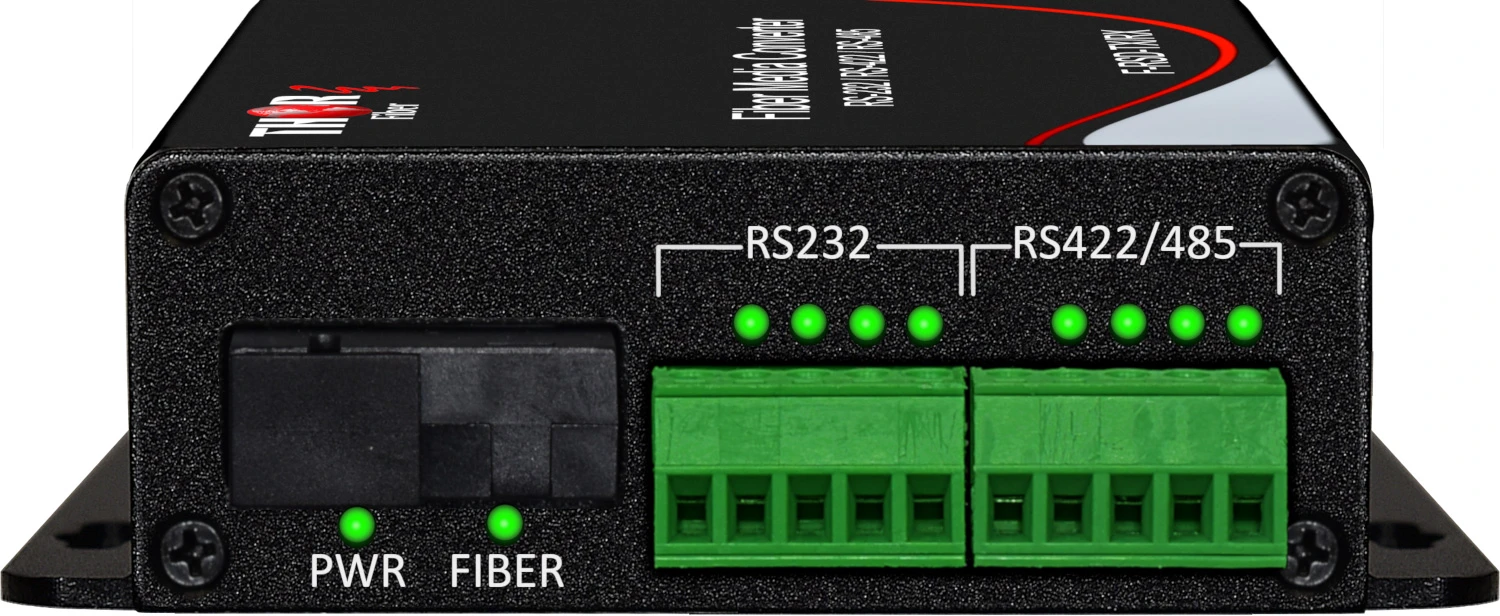

- LED Indicators: PWR, TxD, RxD
- RS-232 Signal: IN, OUT, GND
- 4-wire RS485 Signal: T+, T-, R+, R-, GND
- 2-wire RS485 Signal: D+, D-, GND
- RS-422 Signal: T+, T-, R+, R-, GND
- Interface Protection: 1500W surge protection and 15KV ESD protection
- Environmental Temperature: -22° to 167°F (-30° to 75°C)
- Relative Humidity: 0-95% (no condensation)
- RoHS Compliant: Yes
- Power Supply Voltage: AC 85-220V
- Power Consumption: 2.68W

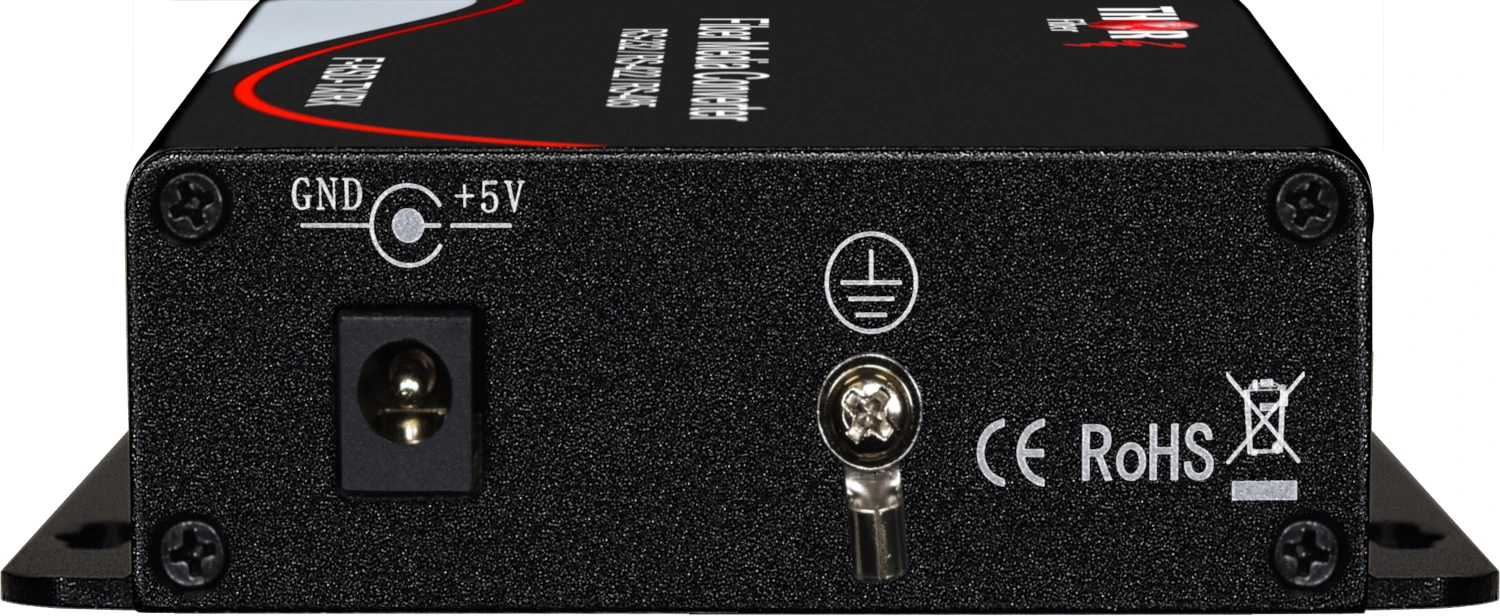

- Power Input: 5V DC
- Dimensions : 4 x 5 x 1.25″
