F-SATTGALAXY-TX/RX-3 – Overview

Thor Fiber MDU Satellite over Fiber – Optical Transmitter F-SattGalaxy-TX-3 has 3 independent RF inputs, converts each satellite signal from a quad or quatro LNB, and also terrestrial off-air TV signal via antenna array in a single unit to transmit over one singlemode fiber.

Thor Optical MDU Satellite Receiver F-SattGalaxy-RX converts the optical signal back to the original 2 satellite signals and the third terrestrial off-air TV signal injected on the TX.

Off Air TV / Radio signals like ATSC, Analog NTSC, DVB-T, or ISDB-T, DVB-C QAM annex A/B or RF FM Radio can be used in the 3rd RF port for transmission.

Transmitter and receiver are using a built-in optical Wavelength Division Multiplexing (CWDM) system that uses multiple lasers for carrying signals inside one optical fiber. The built-in CWDM multiplexer enables high-quality transmission using 5 wavelengths (VL: 1510nm, HL:1530nm, VH: 1550nm, HH: 157nm, Ter 1590nm).

The F-SattGalaxy transmitter provides high optical output power that allows for the distribution of the signals for up to 32 optical receivers located within a radius of 10 kilometers. The exact number of receiving points and the maximum transmission range can be calculated using optical power budget methods. These are model specific for output power and must be ordered as such.

Both the transmitter and receiver use angle polish connector SC/APC to eliminate any reflections creating a cleaner signal connection.

Point to Point or Point to Multipoint 1×4, 1×8, 1×16, and 1×32 systems are available, it sends the RF from multiple antennas or LNB’s to the SWiM switch, eliminating the need for long coax runs, and it is especially beneficial in locations where the Dish and SWiM Switch are far from each other.

Features:
- One single mode optical cable instead of 5- or 9-cable coaxial trunk
- Single-mode technology (will not work with multimode fiber)
- The use of a typical Single or Dual LNB’s allows for much easier dish alignment that in the case of an LNB with direct optical output
- In contrast to competitive solutions, the optical transmitter does not have to be mounted close to the antenna / dish
- Distribution of the signals to up to 32 optical receivers located within a radius of 10 kilometers (the exact number of the receiving points and the maximum transmission range can be calculated using optical power budget methods);
- Each receiving point with receiver/converter and a multi-switch or several multi switches creates a local RF distribution system (in total, the number of outlets/subscribers may exceed one thousand).
- Excellent 1×32 MDU L-band distribution solution
- Easy to mount on a wall (compact units)
- Built-in highly efficient Automatic Gain Control (AGC) ensuring a stable level of output signals;
- Diagnostic LED indicators provide information on operation status and input signal level.
- Perfect solution for long distance RF extension, ideal for places where standard COAX distribution is too far, or too congested.
Specifications:
- 2 Satellite L-Band + 1 CATV QAM / ATSC RF over fiber Transmitter
- Input Frequency Range: 47-2150MHz
- RF Inputs – Signal Level: 75±10dBμV
- Power Transmission for LNB: 13/18 V (350 mA)
- Impedance: 75Ω
- Optical Output Power: +2 to +10dBm Model Dependent
- SAT/DVB-T Transmission Window: III (VL: 1510 nm, HL: 1530 nm, VH+Terr: 1550 nm, HH: 1570 nm)
- RF Connectors: F-Type

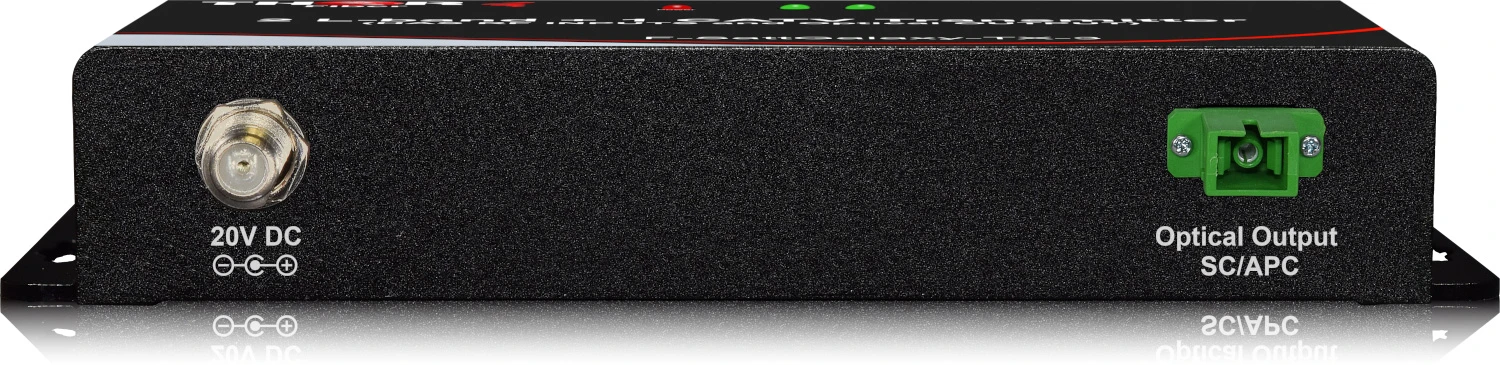

- Optical Connector: SC/APC
- Supply Voltage: 20VDC
- Power Consumption: 15W
- Operating Temperature: 14° to 104°F (-10° to 40°C)
- Dimensions: 7.7 x 5 x 1.57″ (195 x 128 x 40mm)

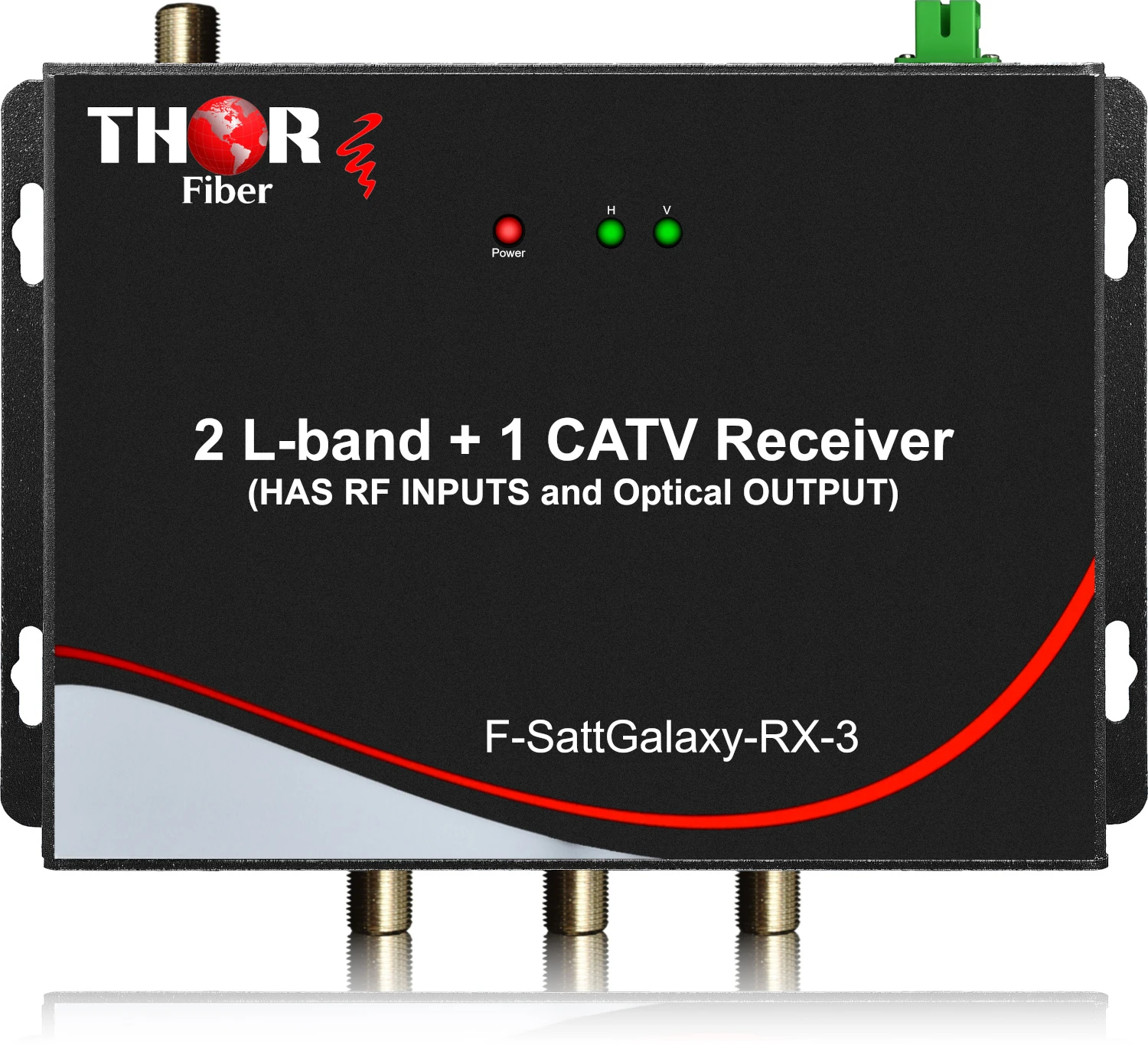

  2 satellite L-Band + 1 CATV QAM / ATSC RF over fiber Receiver
- Output Frequency Range: 47-2150MHz
- RF Output – Signal Level [dBμV]: 75±10 AGC
- Input Signal Level (optical) [dBm]: -14/+3 (AGC range: -7 to 2)
- Impedance: 75Ω
- AGC Efficiency: ±1dB
- SAT/DVB-T Transmission CWDM Wavelengths: III (VL: 1510 nm, HL: 1530 nm, VH+Terr: 1550 nm, HH: 1570 nm)
- RF Connectors: F-Type

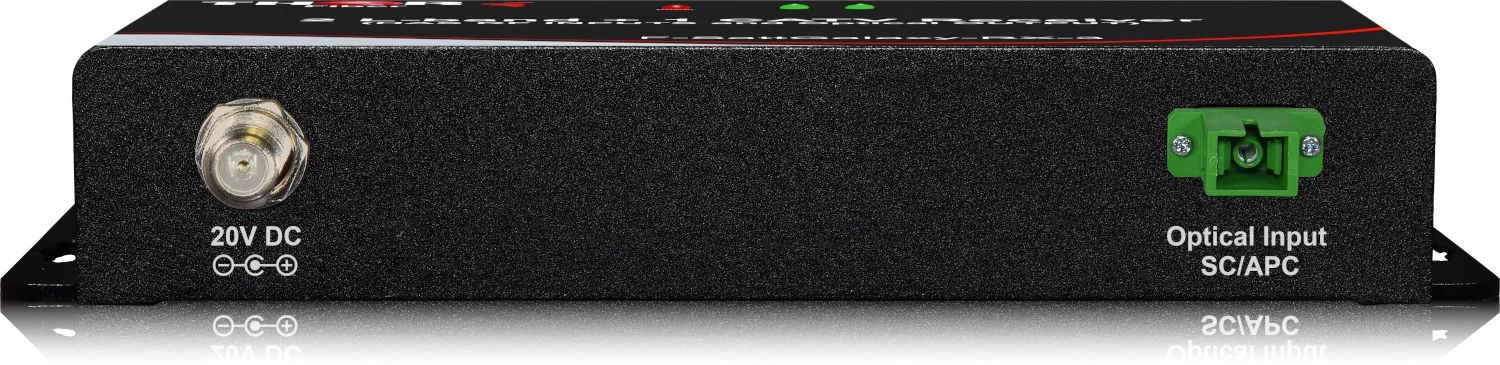

- Optical Connector: SC/APC
- Supply Voltage: 20VDC
- Power Consumption: 10W
- Operating Temperature: 14° to 104°F (-10° to 40°C)
- Dimensions: 7.7 x 5 x 1.57″ (195 x 128 x 40mm)
